Test 3: Checking Sub Fan Relay-2
To check sub fan relay-2, see
Fig 1
.

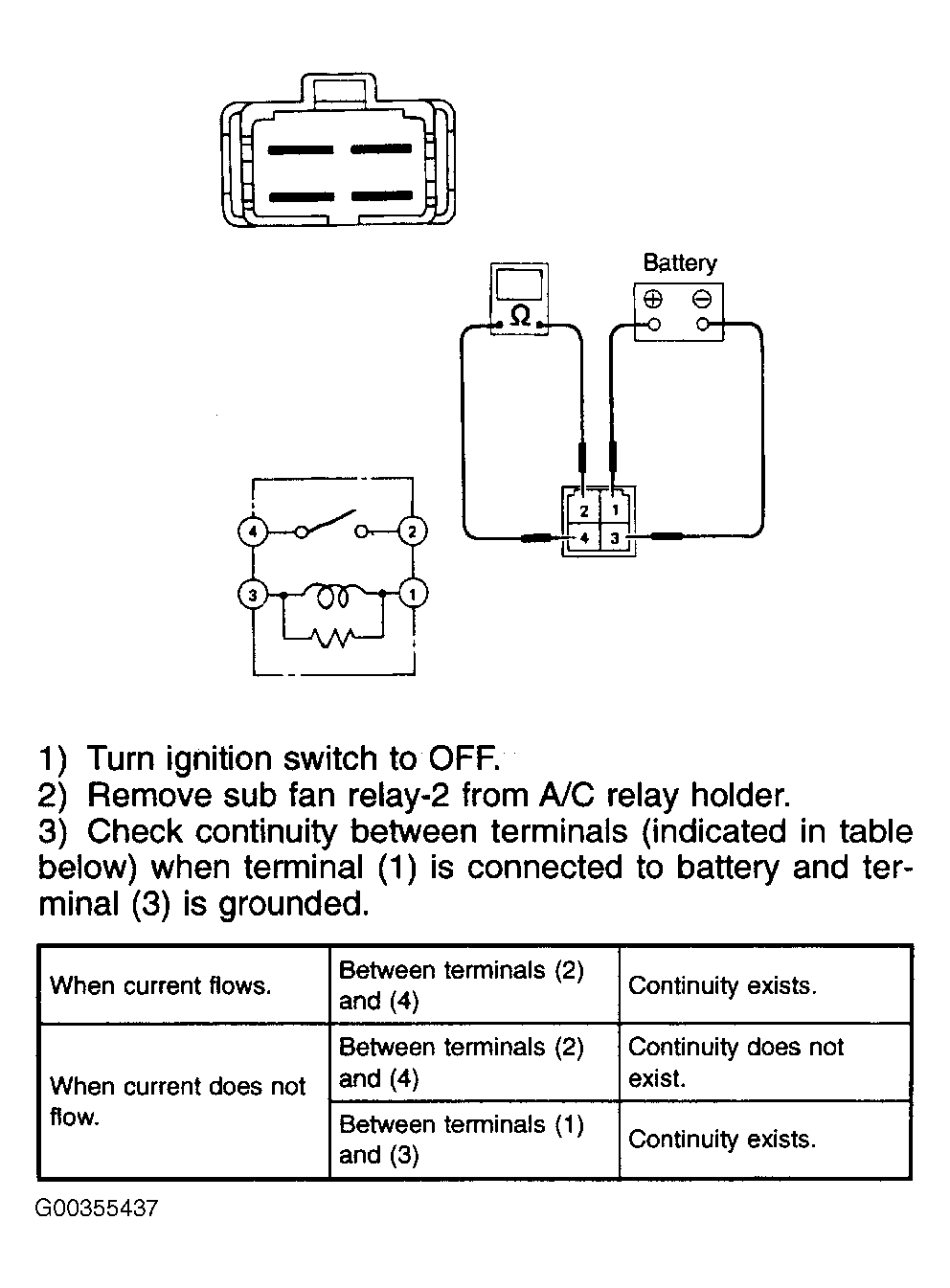

Fig 1: Checking Sub Fan Relay-2
Courtesy of SUBARU OF AMERICA, INC.
