Test 6: Checking Main Fan Motor
To check main fan motor, see
Fig 1
.

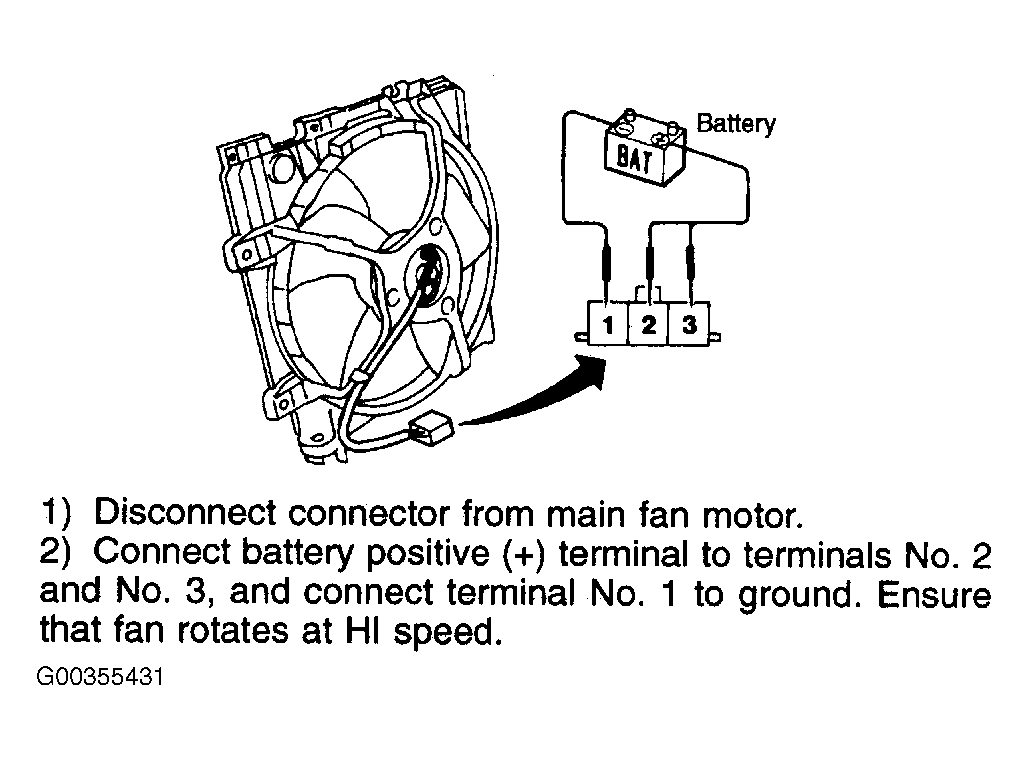

Fig 1: Checking Main Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
