Test 4: Checking Harness Connector Between Main Fan Relay-2 & Main Fan Motor

To check harness connector between main fan relay-2 and main fan motor, see Fig 1 .

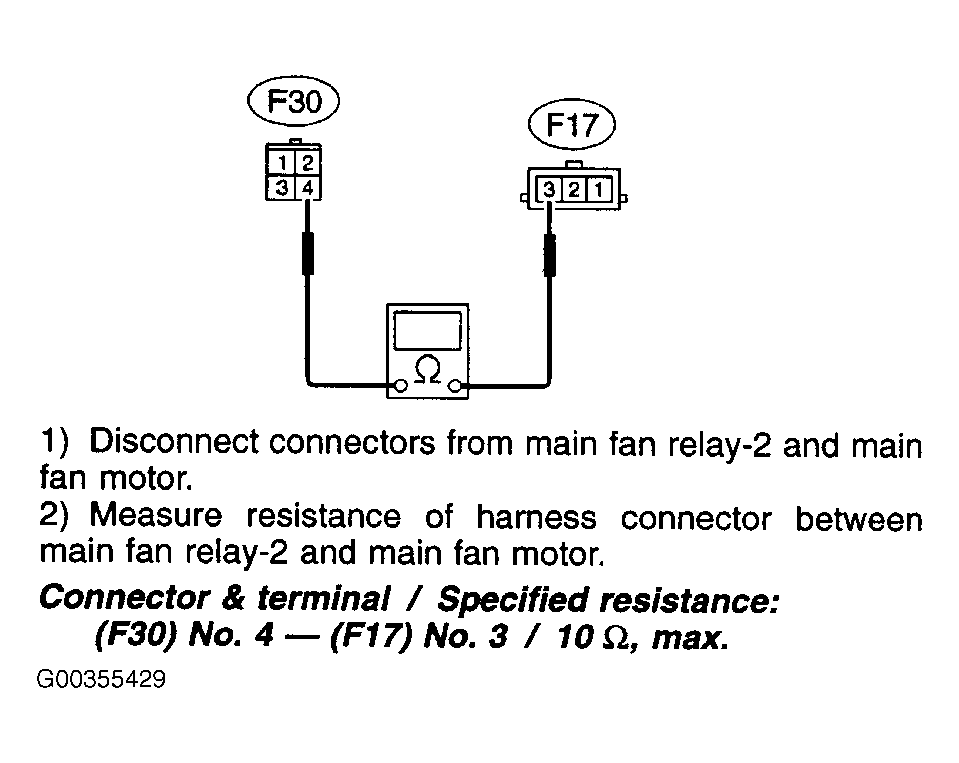

Fig 1: Checking Harness Connector Between Main Fan Relay-2 & Main Fan Motor
G00355429Courtesy of SUBARU OF AMERICA, INC.
