Test 3: Checking Main Fan Relay-2
To check main fan relay-2, see
Fig 1
.

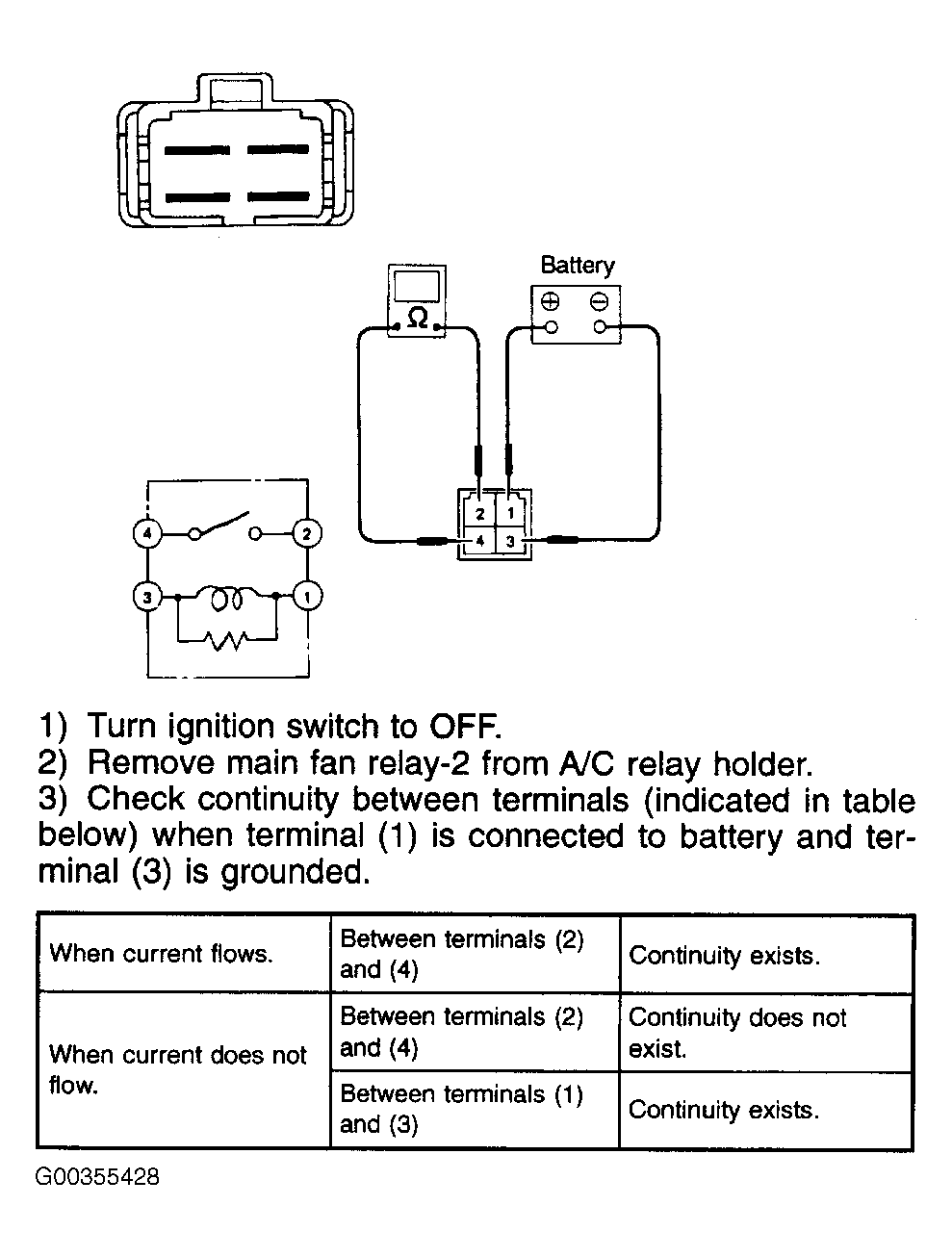

Fig 1: Checking Main Fan Relay-2
Courtesy of SUBARU OF AMERICA, INC.
