Shift Solenoids, Duty Solenoids & Valve Body: Installation

1. Install duty solenoid "B" to valve body. Hand tighten 2 inner bolts to secure solenoid. Install shift solenoid assembly and duty solenoid "A" to valve body. Secure accumulator springs to valve body with assembly lube.
2. Align manual valve with linkage and install valve body to transaxle with Black and Yellow bolts. Install and tighten remaining duty solenoid bolts. Install oil filter, oil pipe, harness bracket and reconnect harness. Secure connectors to valve body. Install oil pan and gasket. Add and check fluid level.

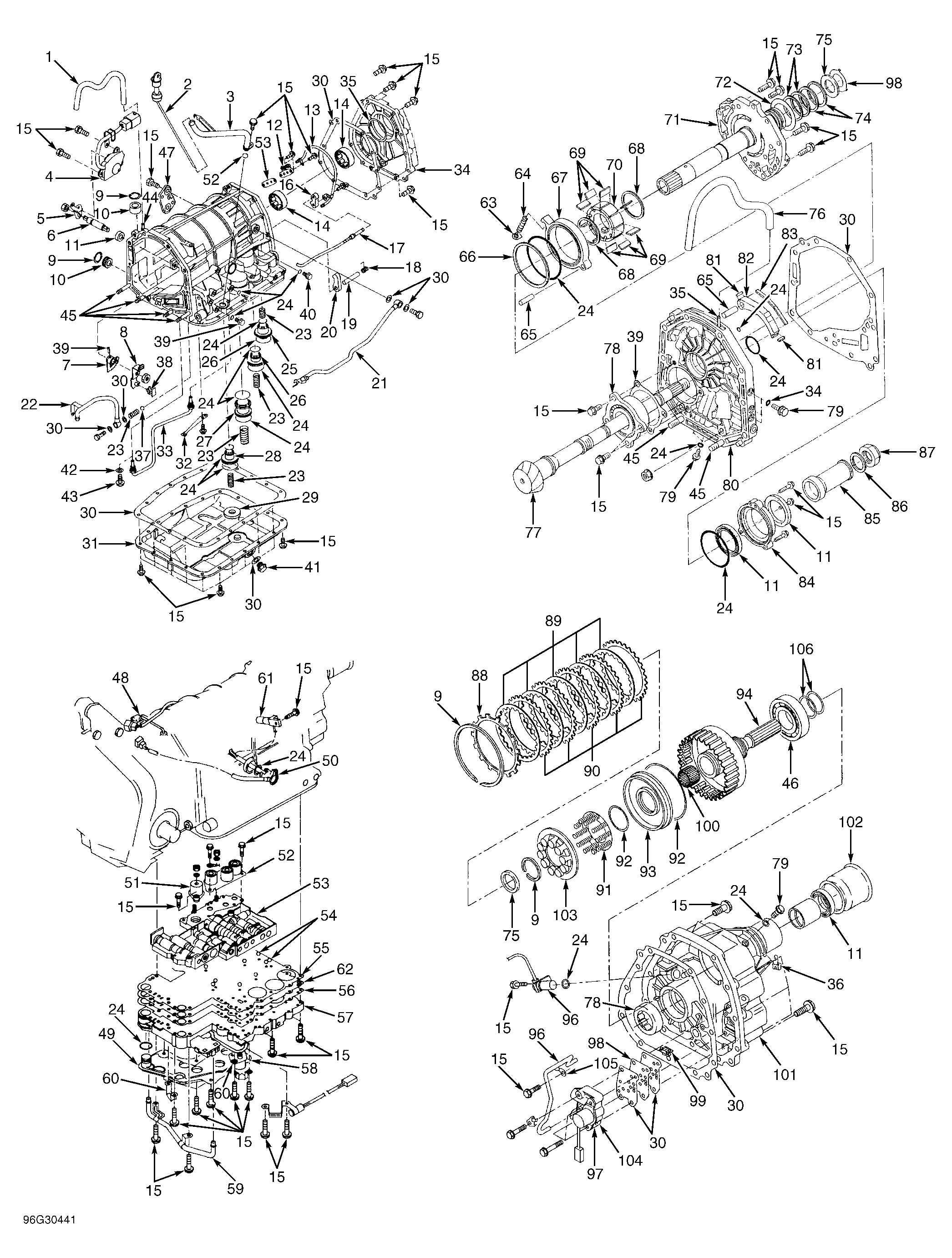

Fig 1: Exploded View Of Transaxle Assembly (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

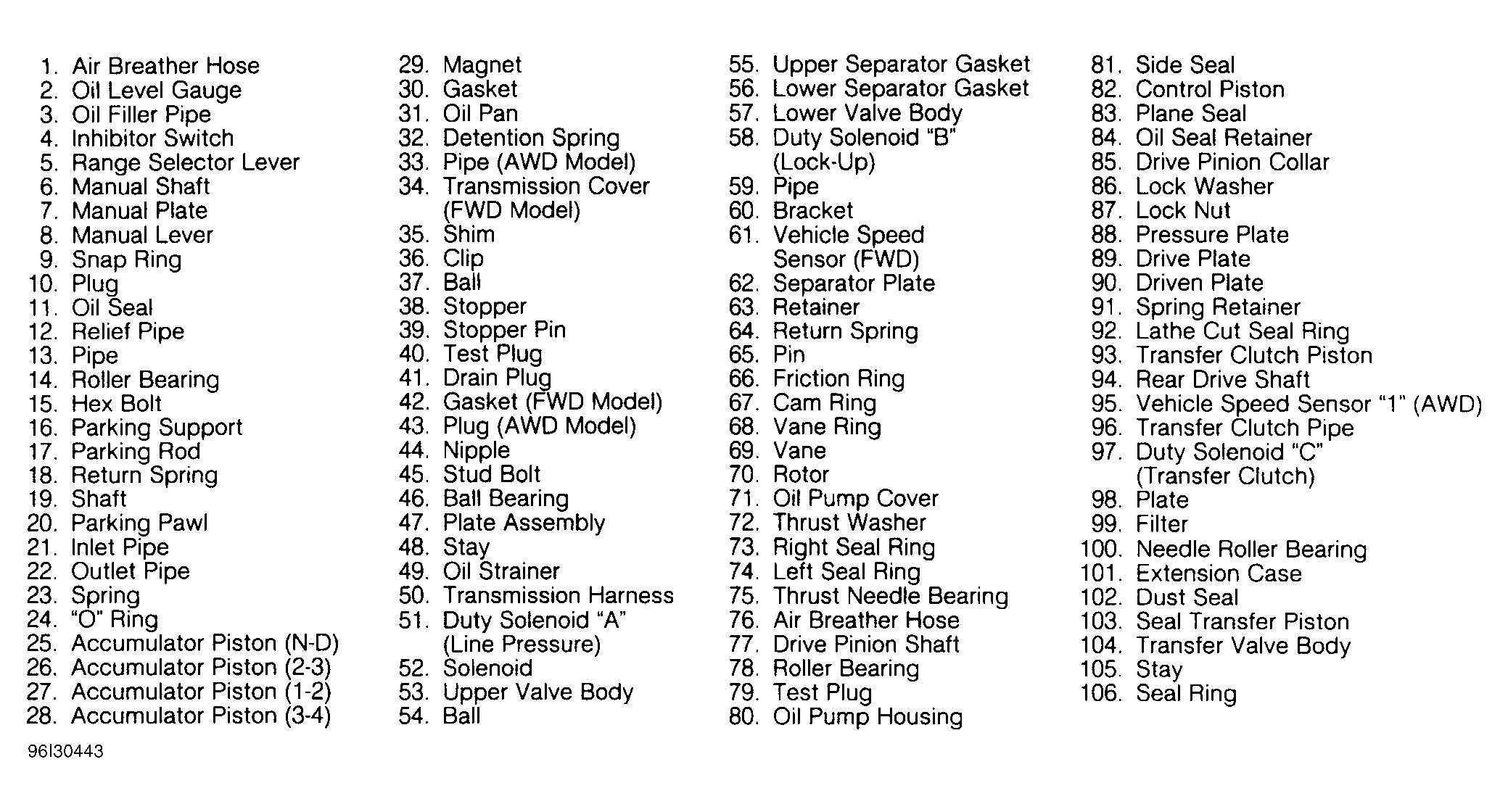

Fig 2: Legend For Exploded View Of Transaxle Assembly (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
