Rack & Pinion Backlash: Forester

Loosen adjusting screw lock nut. See Fig 1 . Tighten adjusting screw to 5.4 ft. lbs. (7.4 N.m). Loosen adjusting screw 25 degrees. Hold adjusting screw and install lock nut and tighten to 22-36 ft. lbs. (29-49 N.m).

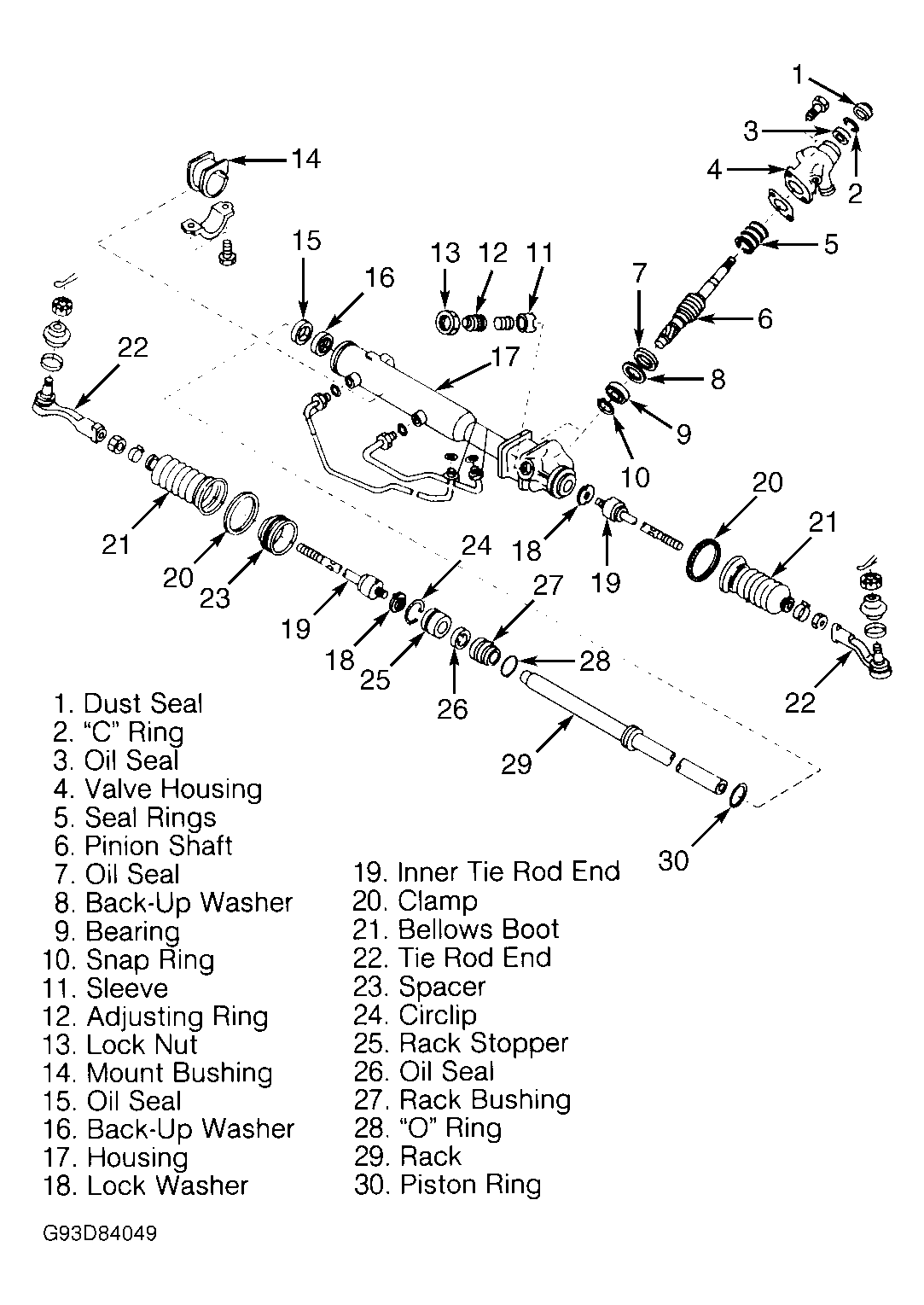

Fig 1: Exploded View Of Steering Gear Assembly (Impreza & Legacy Shown; Forester Is Similar)
G93D84049Courtesy of SUBARU OF AMERICA, INC.
