AIR BAG Warning Light Test

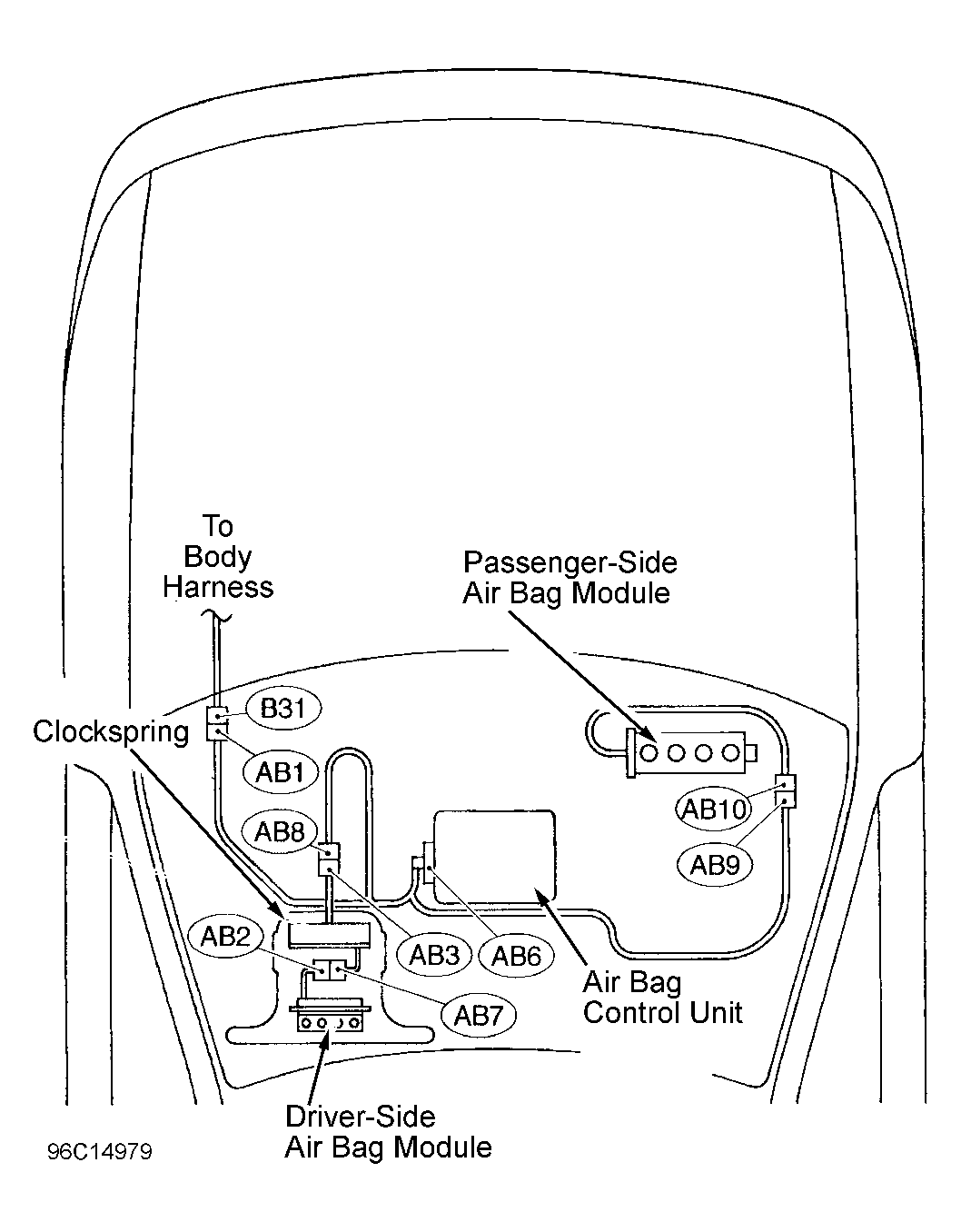

Disable SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM  . Disconnect body harness connector B31 from connector AB1. See Figure . If AIR BAG warning light is on, go to AIR BAG MAIN WIRING HARNESS TEST below. If AIR BAG warning light is off, replace AIR BAG warning light assembly.
