Activating Air Bag System (1998 Models)

Ensure ignition is OFF and both battery cables are disconnected. Connect 2-pin driver-side air bag connector to cable reel connector. Install access panel under steering wheel.
Connect 2-pin passenger-side air bag connector to SRS harness connector. Install glove box. On 3.5RL, connect both front seat belt pretensioner 2-pin connector to SRS main harness. Install trim panels.
On all models, ensure ignition is off. Connect positive battery cable and then negative battery cable. Ensure air bag system is functioning properly. See SYSTEM OPERATION CHECK . Reset radio anti-theft code and preset radio frequencies.

NOTE: On 3.5RL, Powertrain Control Module (PCM) memory must be reset after disconnecting battery. Start and run engine at 3000 RPM with no loads and transmission in Park or Neutral. When radiator fan comes on allow engine to idle for 5 minutes with A/C, headlights and rear defogger off.

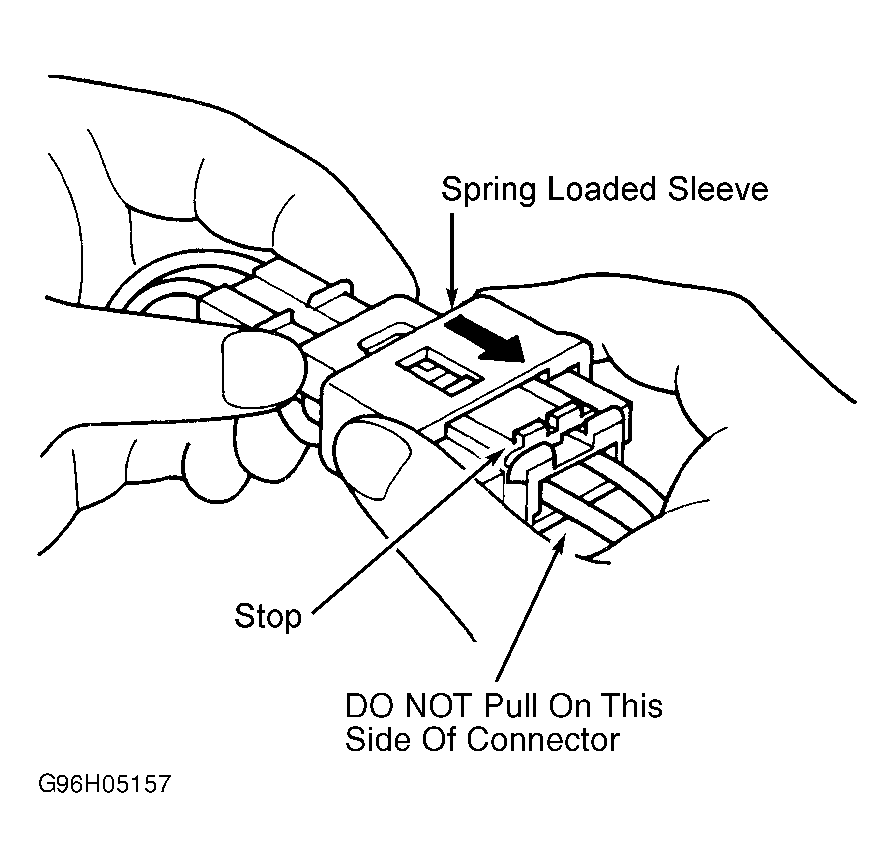

Fig 1: Disconnecting Air Bag Spring-Loaded Locking Connector (1998 Acura)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

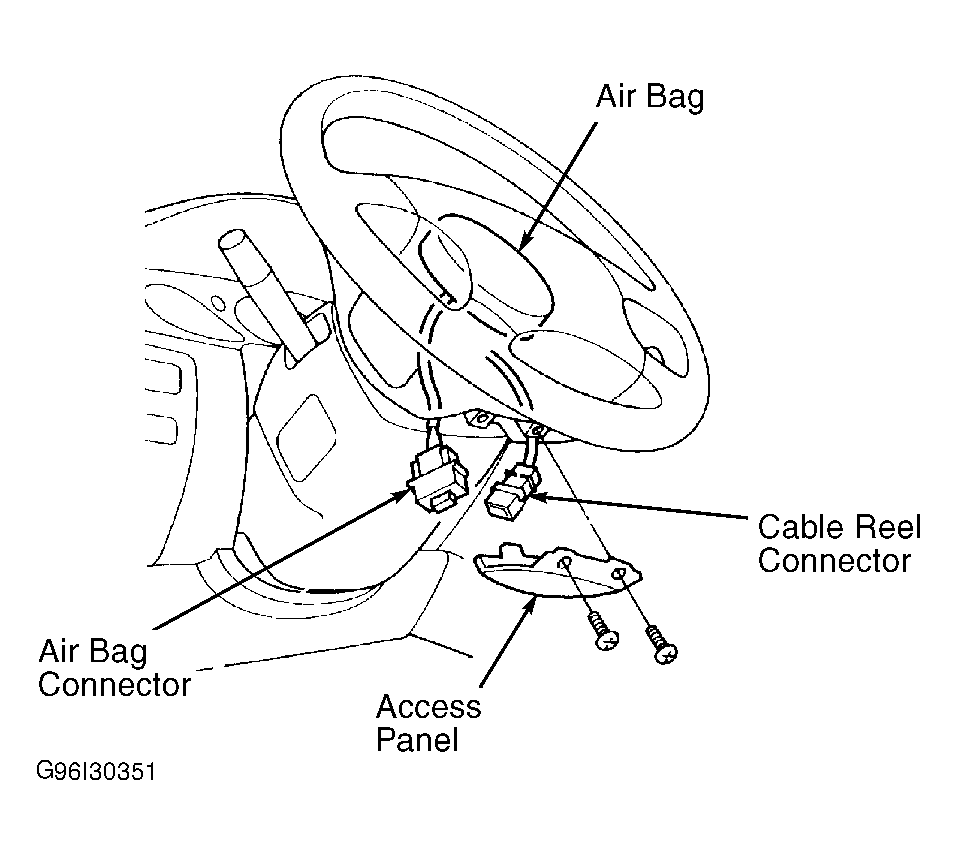

Fig 2: Disabling Driver-Side Air Bag (1998 Acura & Honda)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

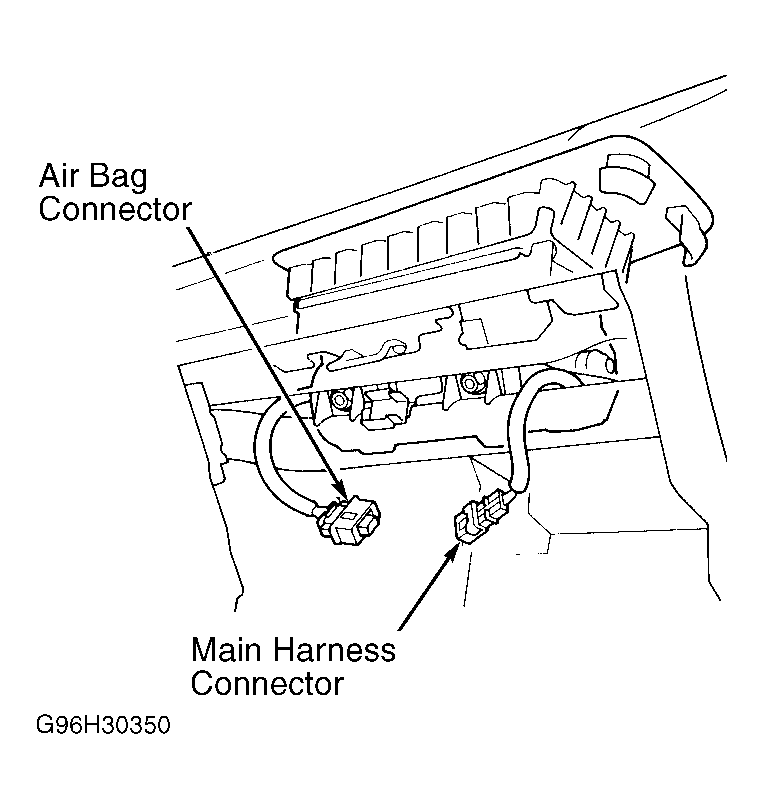

Fig 3: Disabling Passenger-Side Air Bag (1998 2.3CL & 3.0CL)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

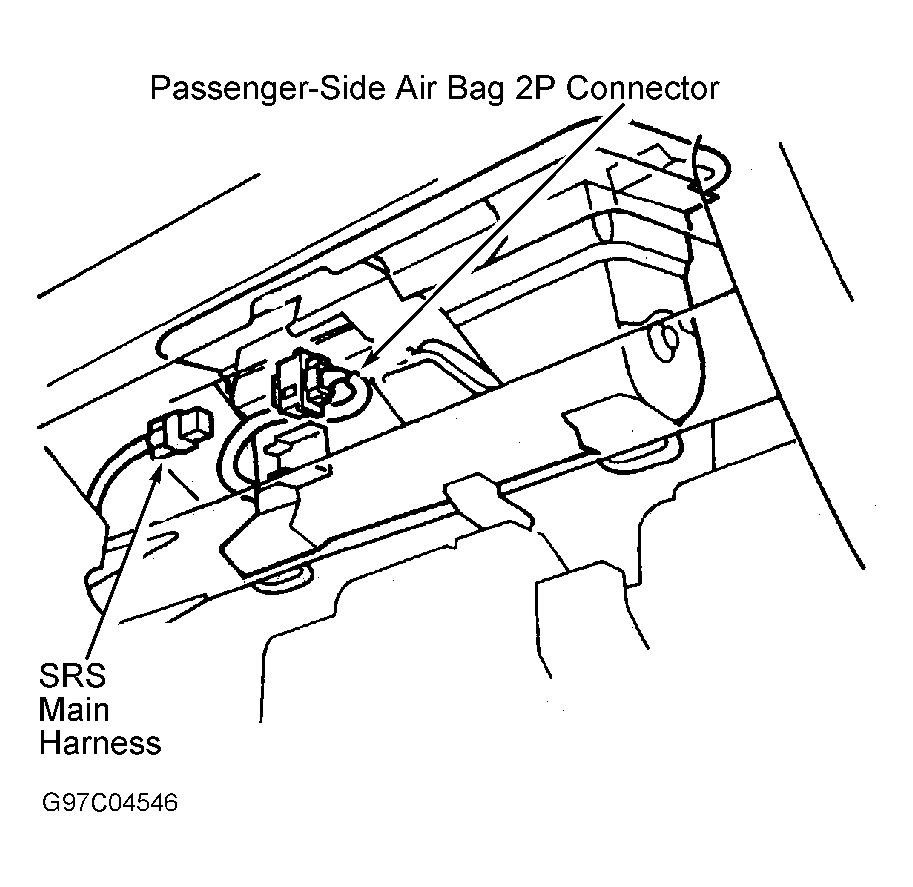

Fig 4: Disabling Passenger-Side Air Bag (1998 2.5TL & 3.2TL)

Fig 5: Disabling Passenger-Side Air Bag (1998 3.5RL)

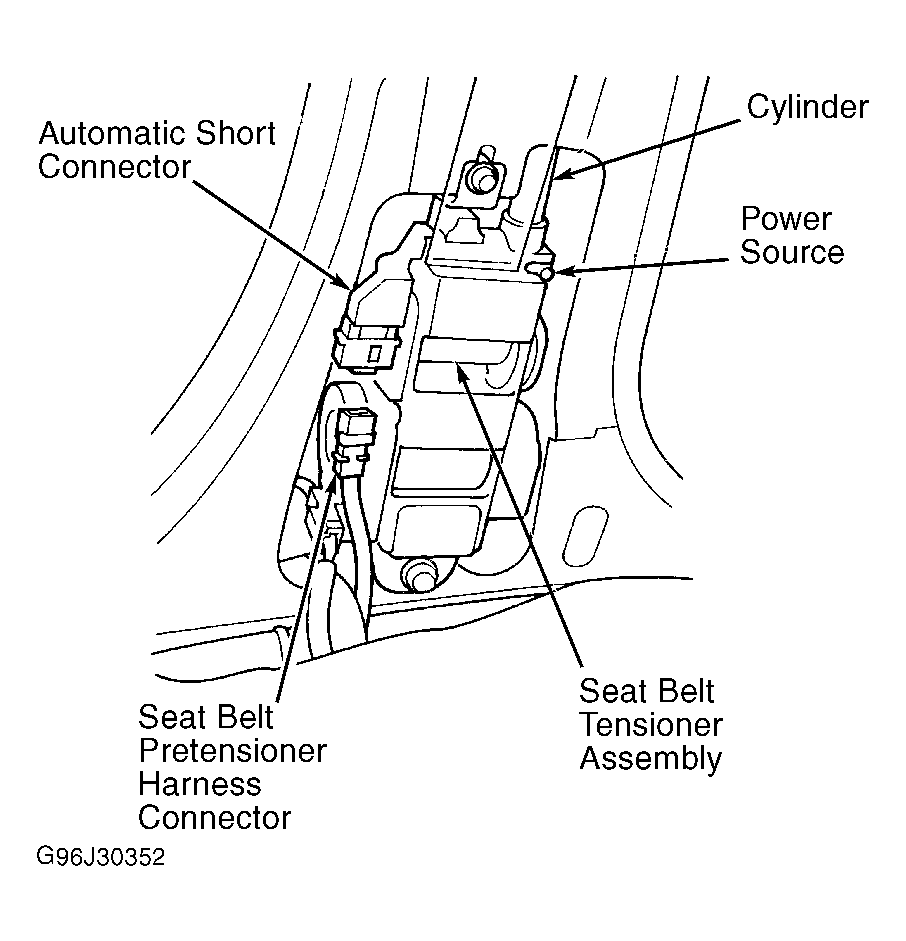

Fig 6: Locating Seat Belt Pretensioner Connector (1998 3.5RL)
