Radiator Main Fan & Fan Motor: Removal

  1. Disconnect ground cable from battery terminal.
  2. Disconnect connector of fan motor. See Fig 1 .
  3. Remove reservoir tank. See Fig 2 .
  4. Remove 4 bolts holding shroud to radiator. See Fig 3 .
  5. Remove radiator fan motor assembly.
  6. Remove fan motor from shroud. See Fig 4 .

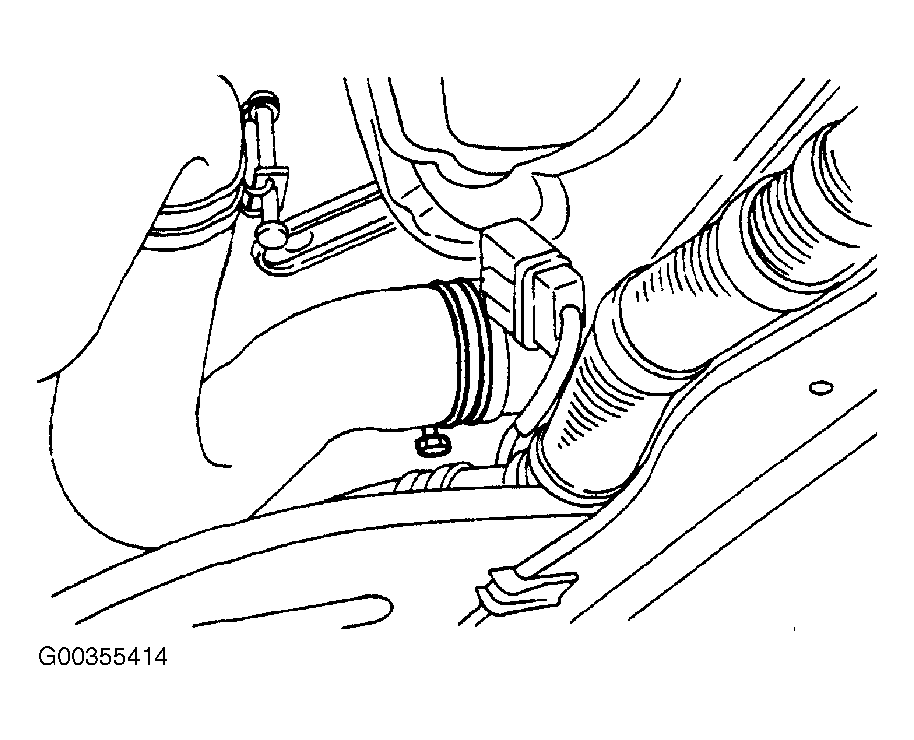

Fig 1: Disconnecting Connector Of Fan Motor
G00355414Courtesy of SUBARU OF AMERICA, INC.

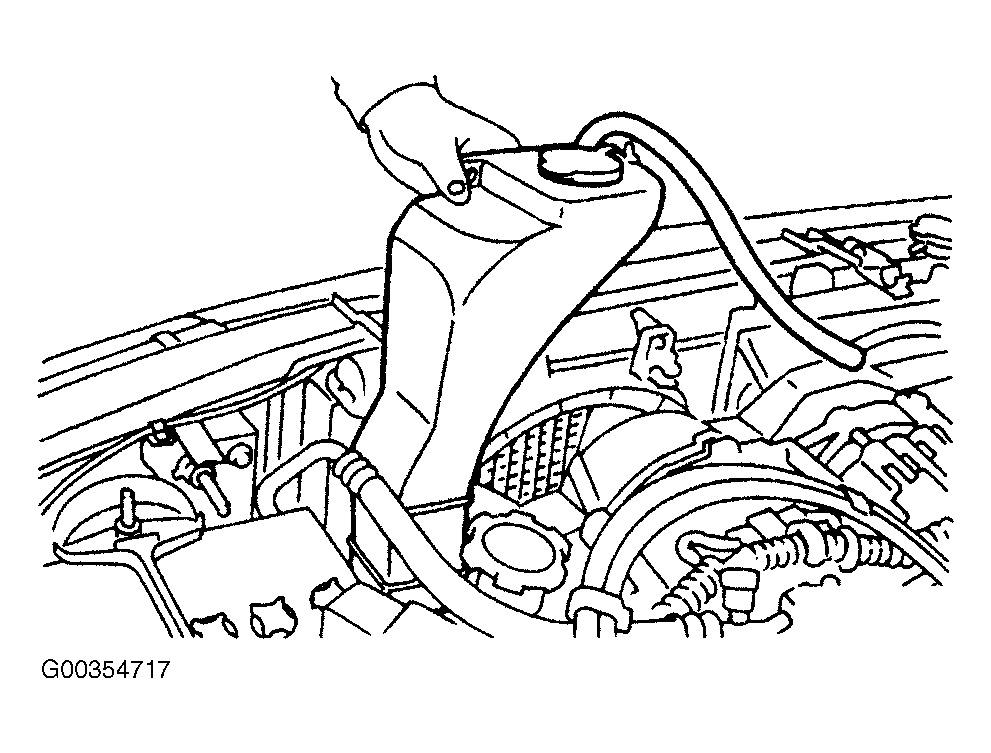

Fig 2: Removing Reservoir Tank
G00354717Courtesy of SUBARU OF AMERICA, INC.

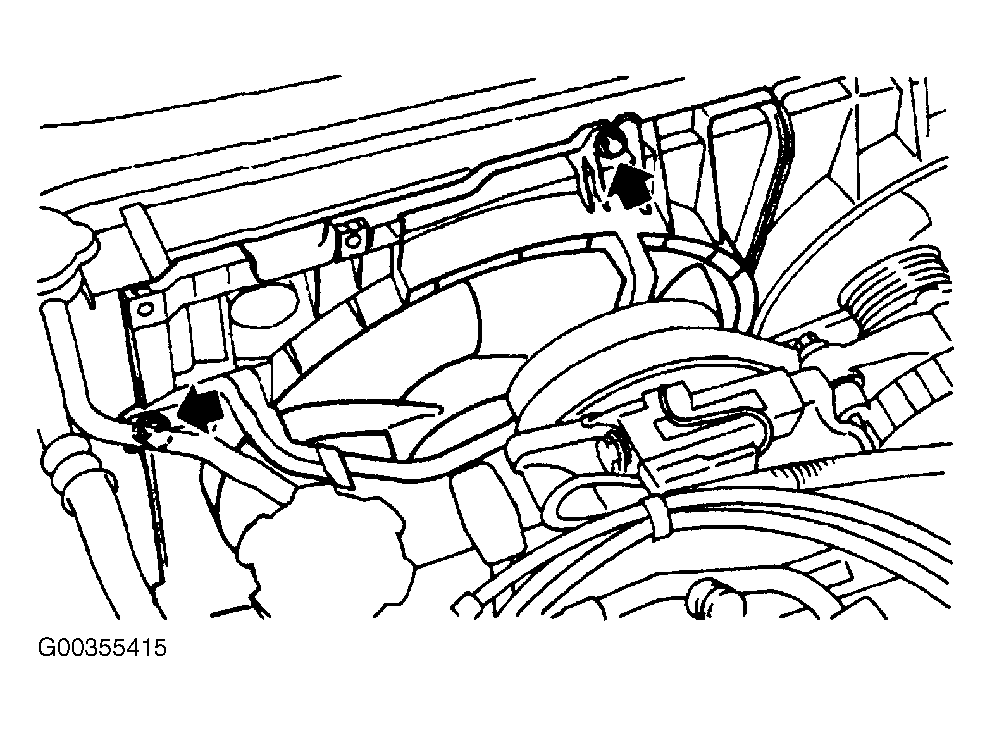

Fig 3: Removing Bolts Holding Shroud To Radiator
G00355415Courtesy of SUBARU OF AMERICA, INC.

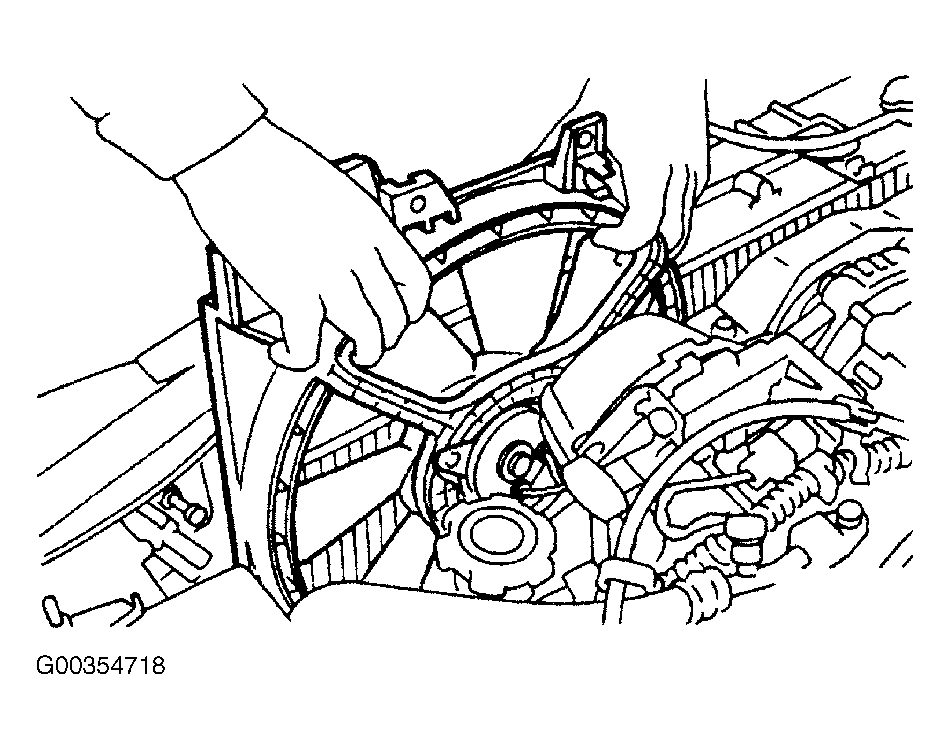

Fig 4: Removing Radiator Main Fan Motor Assembly
G00354718Courtesy of SUBARU OF AMERICA, INC.
