Test 3: Checking Harness Connector Between Main Fan Relay-1 & Main Fan Motor
Test 3: Checking Harness Connector Between Main Fan Relay-1 & Main Fan Motor
To check harness connector between main fan relay-1 and main fan motor, see
Fig 1
.

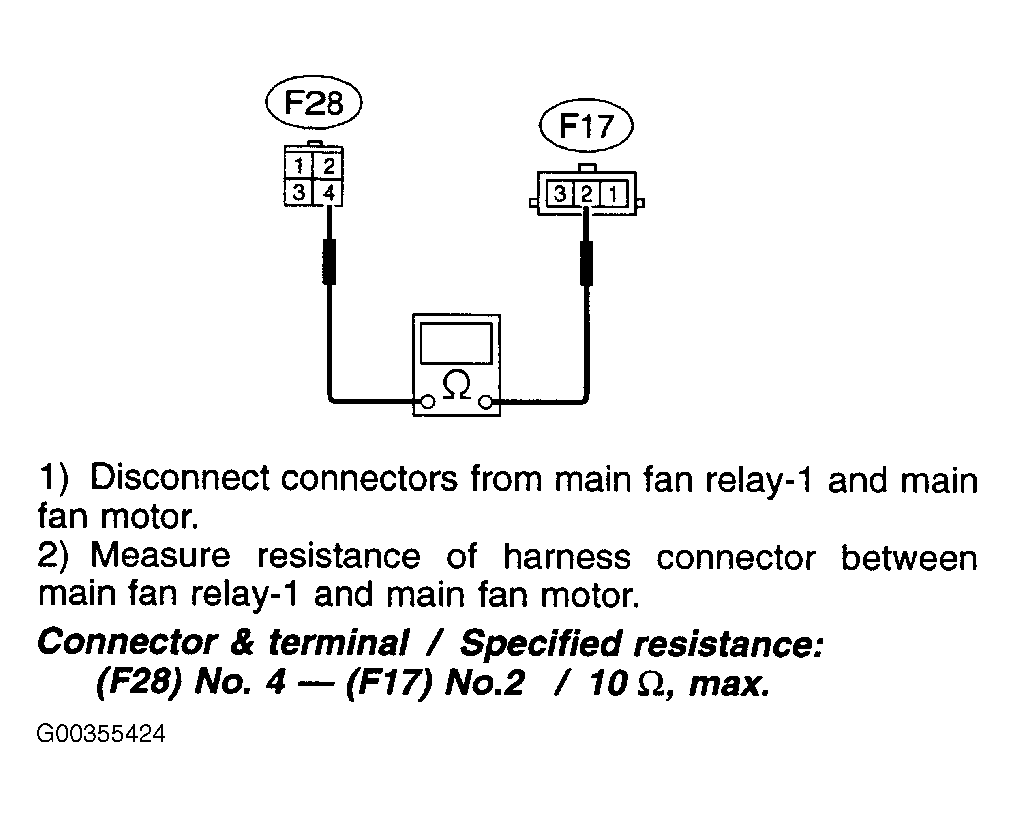

Fig 1: Checking Harness Connector Between Main Fan Relay-1 & Main Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
