Test 2: Checking Harness Connector Between Fuse & Relay Box & Sub Fan Motor

To check harness connector between fuse and relay box and sub fan motor, see Fig 1 .

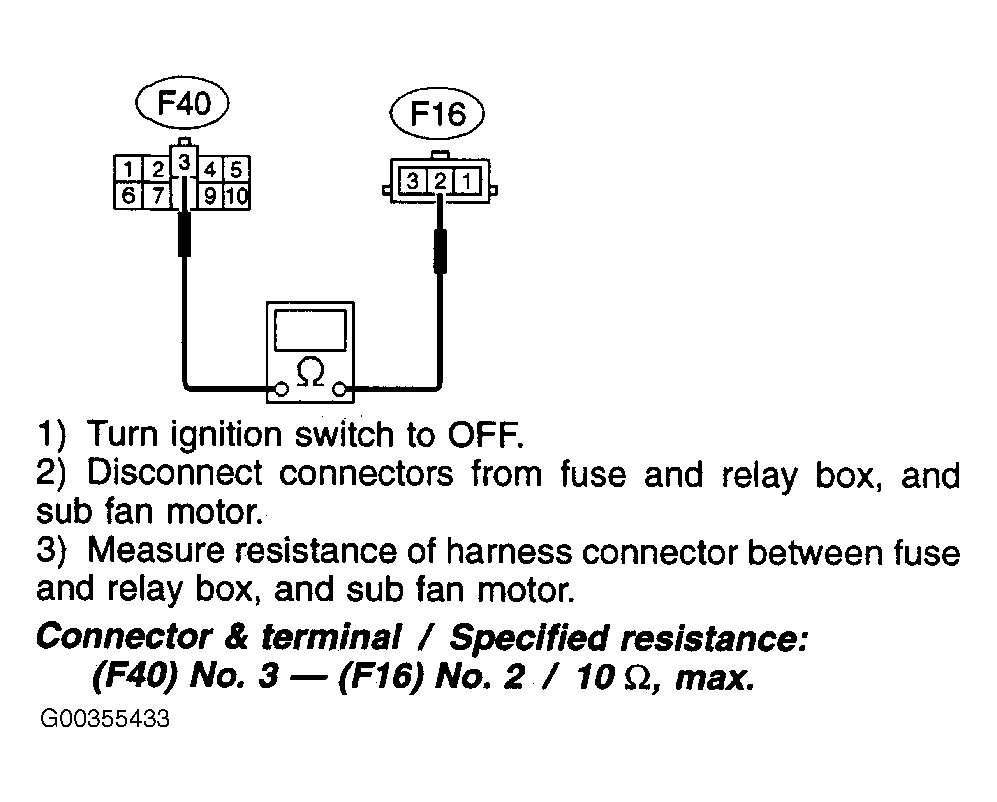

Fig 1: Checking Harness Connector Between Fuse & Relay Box & Sub Fan Motor
G00355433Courtesy of SUBARU OF AMERICA, INC.
