Component Locations

For location of radiator and radiator fan components, see Fig 1 .

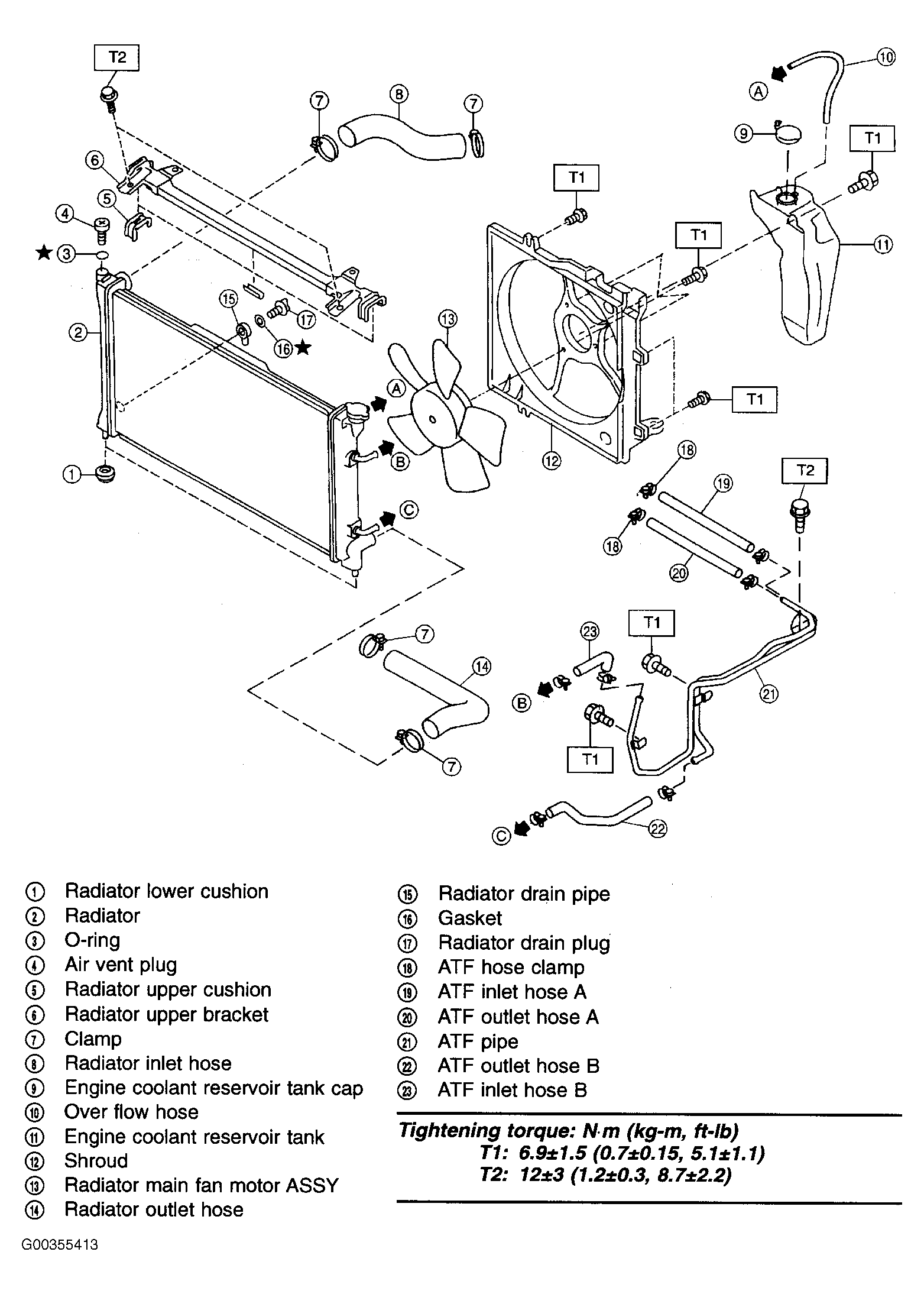

Fig 1: Exploded View Of Radiator & Radiator Fan

G00355413

Courtesy of SUBARU OF AMERICA, INC.
