Rear Axle Shafts: Installation

Using Installer (9224310000) and Adapter (927390000), install outboard joint into hub. See Fig 3 . Install, but DO NOT tighten NEW axle shaft nut. Install NEW circlip on inner CV joint splines (2.2L A/T only). Using Side Oil Seal Protector (28099PA090), install axle shaft into differential. To complete installation, reverse removal procedure. Tighten all nuts and bolts to specification. See TORQUE SPECIFICATIONS  .

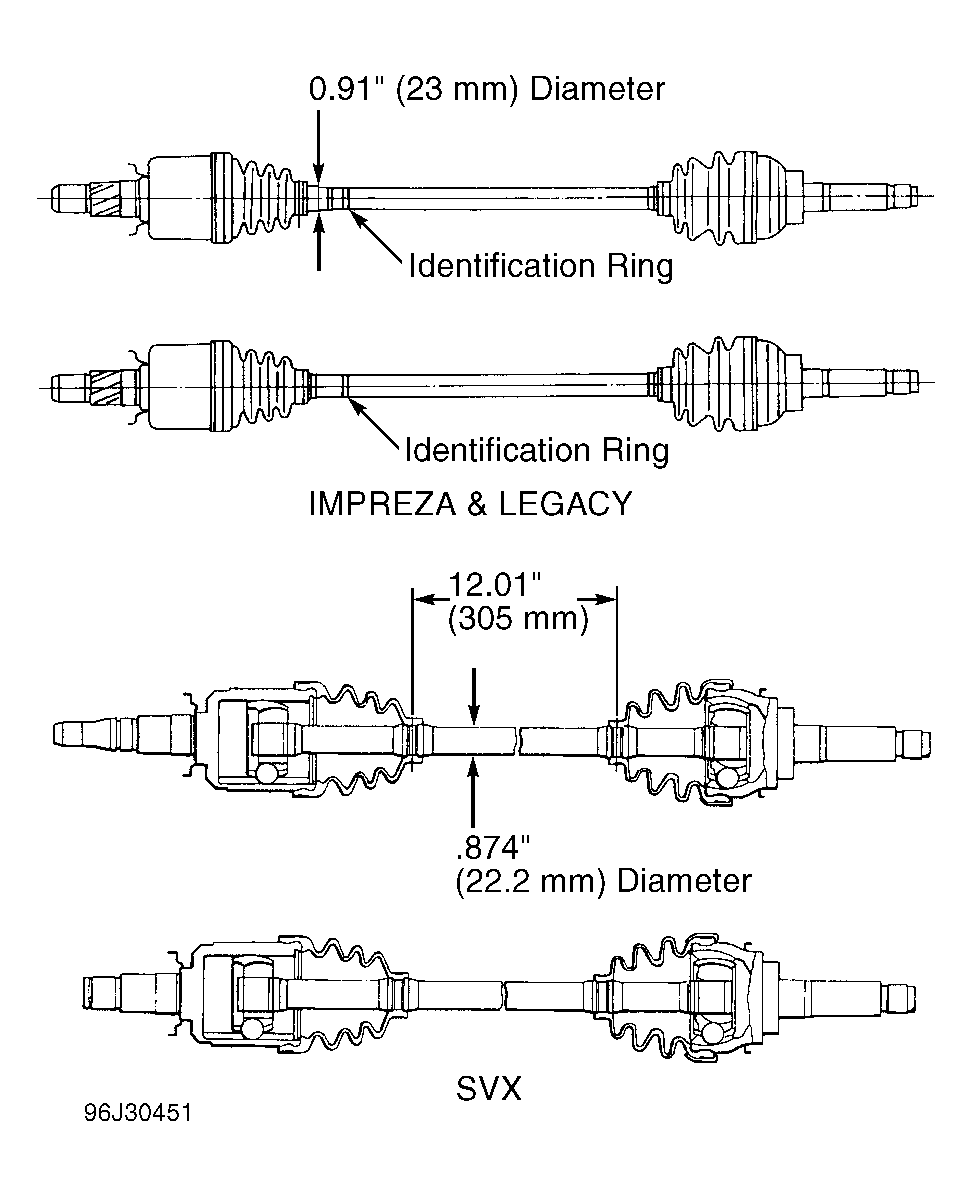

Fig 1: Identifying Rear Axle Shafts

Courtesy of SUBARU OF AMERICA, INC.

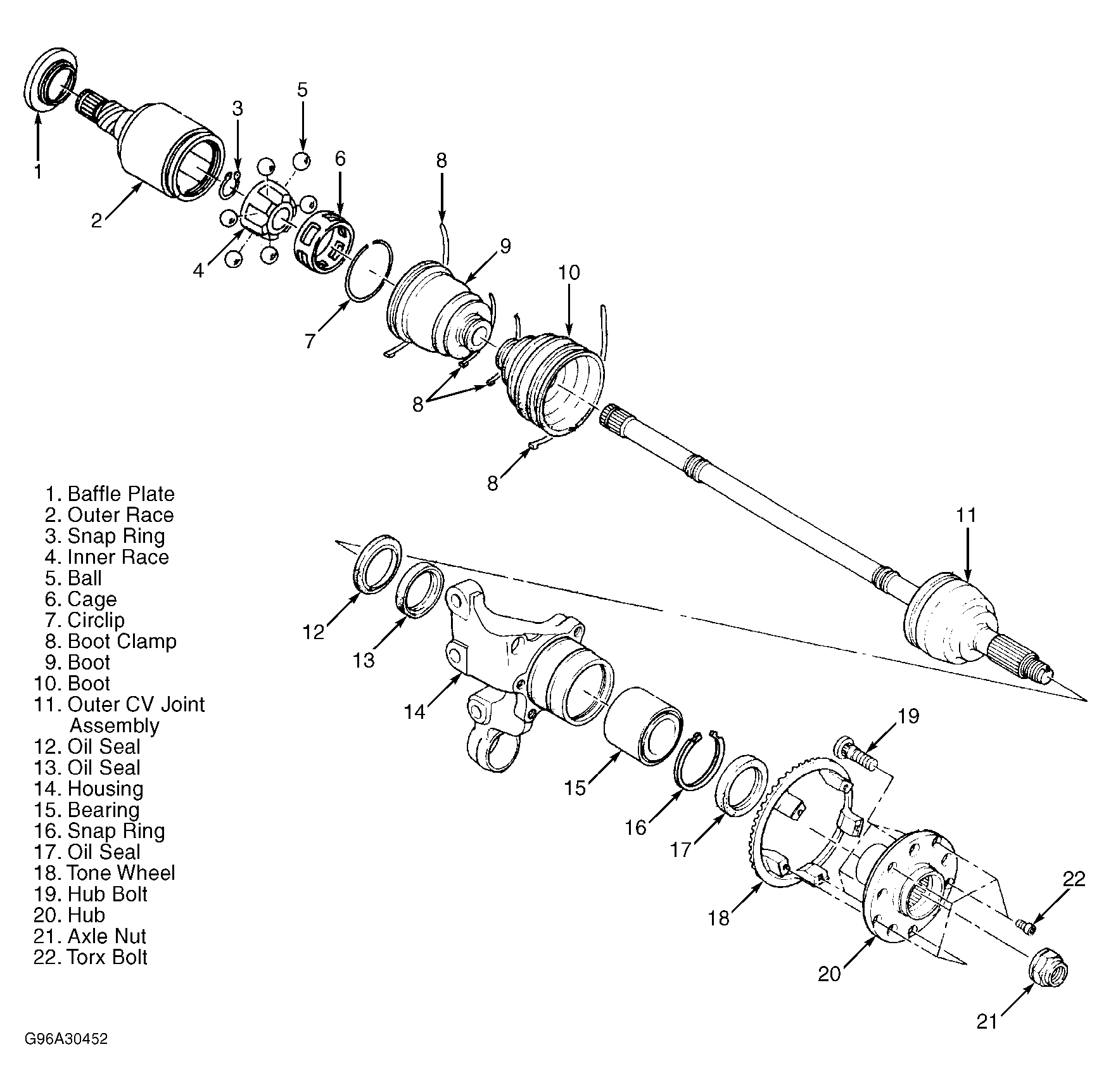

Fig 2: Exploded View Of AWD Rear Axle & Hub Assembly

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Installing Axle Shaft In Rear Housing

Courtesy of SUBARU OF AMERICA, INC.
