Removal & Disassembly (SVX)

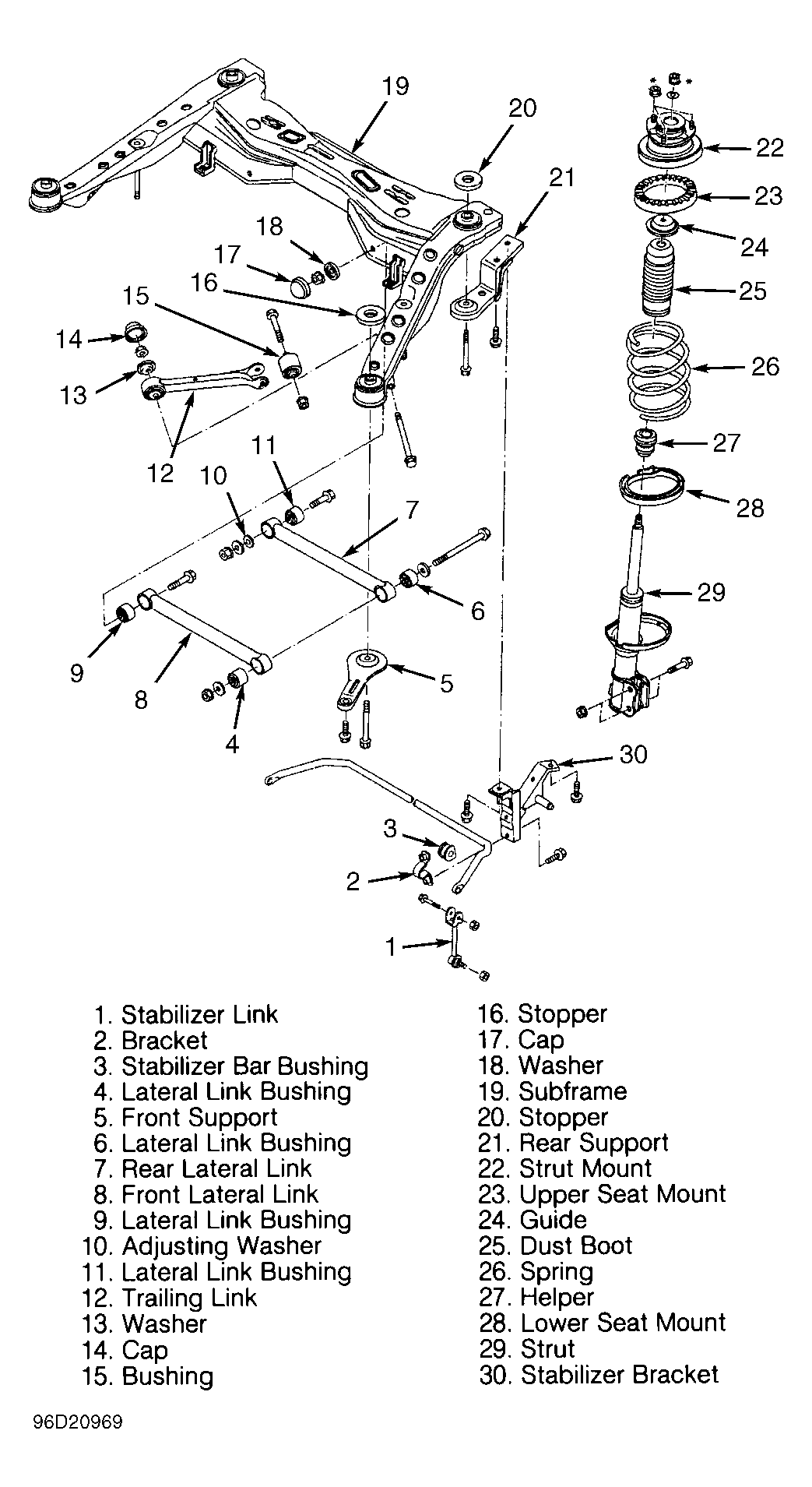

- Raise and support vehicle. Remove rear wheels. Remove brake caliper, if necessary. Disconnect negative battery cable and remove rear quarter trim. Separate brake hose from strut. Using a floor jack, support knuckle/hub housing. Remove one strut flange bolt. See Figure.
- Remove upper strut mount bolts. Remove remaining strut flange bolt and remove strut assembly from vehicle. Using a coil spring compressor, compress coil spring. Remove strut lock nut and disassemble shock. Note position of coil spring in relation to upper bracket. Check shock absorber for oil leaks. Check action of piston rod for abnormal noise or resistance.
