Entering Self-Diagnostics
WARNING: This page is about a different car, the 1996 Subaru SVX. However, it is still accessible from the selected car via links, so may be relevant.

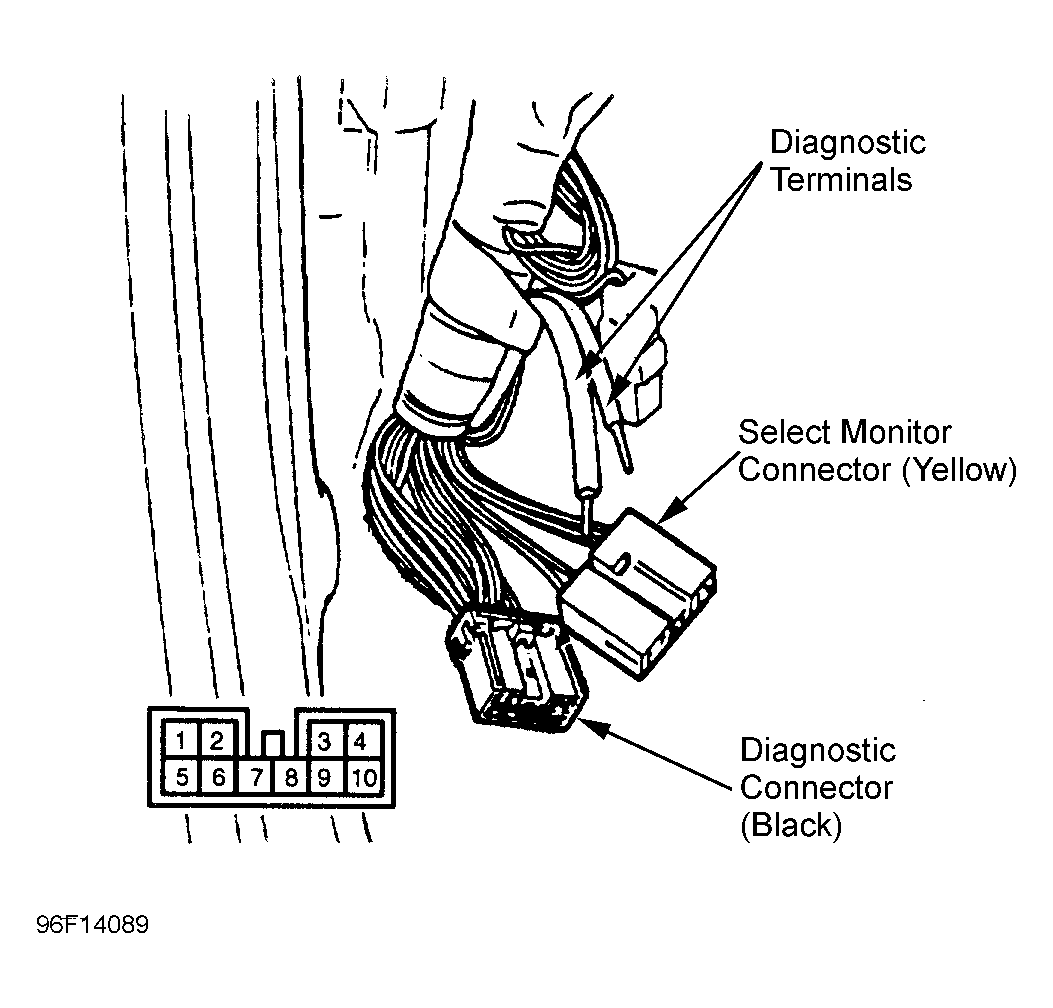

- Turn ignition switch to ON position. Connect one diagnostic terminal to terminal No. 9 of Black diagnostic connector, located below lower left pillar cover. See Fig 1 .
- Read diagnostic codes by noting number of AIR BAG warning light flashes. A long flash (1.2 seconds) indicates a 10, and a short flash (0.3 second) indicates a one. For example, a long flash followed by 2 short flashes would indicate Code 12. Code will be displayed 3 times, with a 1.5-second pause between codes. Retrieve and record codes. Turn ignition off, remove diagnostic terminal, and perform appropriate test. See AIR BAG CODE IDENTIFICATION table.
AIR BAG CODE IDENTIFICATION
| Code (1) | Malfunction | ||
|---|---|---|---|
| 02 | Impact Sensor Wiring Harness Shorted, Air Bag Main Wiring Harness Shorted, Air Bag Module Wiring Harness Shorted, Clockspring Circuit Shorted, Air Bag Control Unit Defective | ||
| 03 | Open Impact Sensor Circuit | ||
| 04 | Main Wiring Harness Shorted Air Bag Module Harness Shorted Air Bag Module Defective | ||
| 11 | Air Bag Control Unit Defective, Air Bag Main Wiring Harness Open, Fuse No. 8 Defective, Body Wiring Harness Open | ||
| 12 | Air Bag Main Wiring Harness Open, Air Bag Module Wiring Harness Open, Clockspring Circuit Open, Air Bag Control Unit Defective | ||
| 13 | Air Bag Main Wiring Harness Shorted, Air Bag Module Wiring Harness Shorted, Clockspring Circuit Shorted, Air Bag Control Unit Defective | ||
| 14 | Poor Connector Contact At Control Unit Or Air Bag Module | ||
| 21 | Air Bag Control Unit Defective | ||
| 22 | Air Bag Main Harness Open Air Bag Module Harness Open Air Bag Control Unit Defective | ||
| 23 | Impact Sensor Wiring Harness Shorted To Voltage, Air Bag Main Wiring Harness Shorted To Voltage, Air Bag Module Wiring Harness Damaged, Clockspring Shorted To Voltage, Air Bag Control Unit Defective | ||
| 24 | Air Bag Main Wiring Harness Open, Driver-Side Air Bag Module Wiring Harness Open, Clockspring Circuit Open, Air Bag Control Unit Defective | ||
| 31 | Control Unit Defective, Air Bag Main Wiring Harness Open, Fuse No. 16 Defective, Body Wiring Harness Open | ||
| 32 | Air Bag Main Wiring Harness Open, Passenger-Side Air Bag Module Wiring Harness Open, Air Bag Control Unit Defective | ||
| AIR BAG Warning Light Stays On | Air BAG Warning Light Defective, Wiring Harness Shorted Or Open, Ground Circuit Defective, Air Bag Control Unit Defective, Bad Connection At Air Bag Main Harness To Body Harness | ||
| AIR BAG Warning Light Stays Off | Fuse No. 15 Defective, Body Wiring Harness Open, AIR BAG Warning Light Defective, Air Bag Main Wiring Harness Defective, Air Bag Control Unit Defective | ||
| AIR BAG Warning Light Displays Fault Code, Then Normal Code (Displaying Fault Code) | SRS Component Defective | ||
| AIR BAG Warning Light Displays Fault Code, Then Normal Code (Displaying Normal Code) | Air Bag Connector Faulty, Fuse No. 16 Defective, Air Bag Main Wiring Harness Defective, Air Bag Control Unit Defective, Body Wiring Harness Defective | ||
|
|||
