Steering Column: Installation

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1991 Subaru XT6, 1991 Subaru XT, 1991 Subaru Loyale, 1991 Subaru Legacy, and 1991 Subaru Justy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert column through floorboard into "U" joint. Install and tighten upper bracket bolt into instrument panel. Install air duct and trim panel.
  2. Install and tighten lower column bolts. Connect electrical connectors. Tighten "U" joint clamp bolt. Check operation of steering wheel and switches.
Fig 1: Identifying Steering Column Components (Justy)
G91H03002Courtesy of SUBARU OF AMERICA, INC.

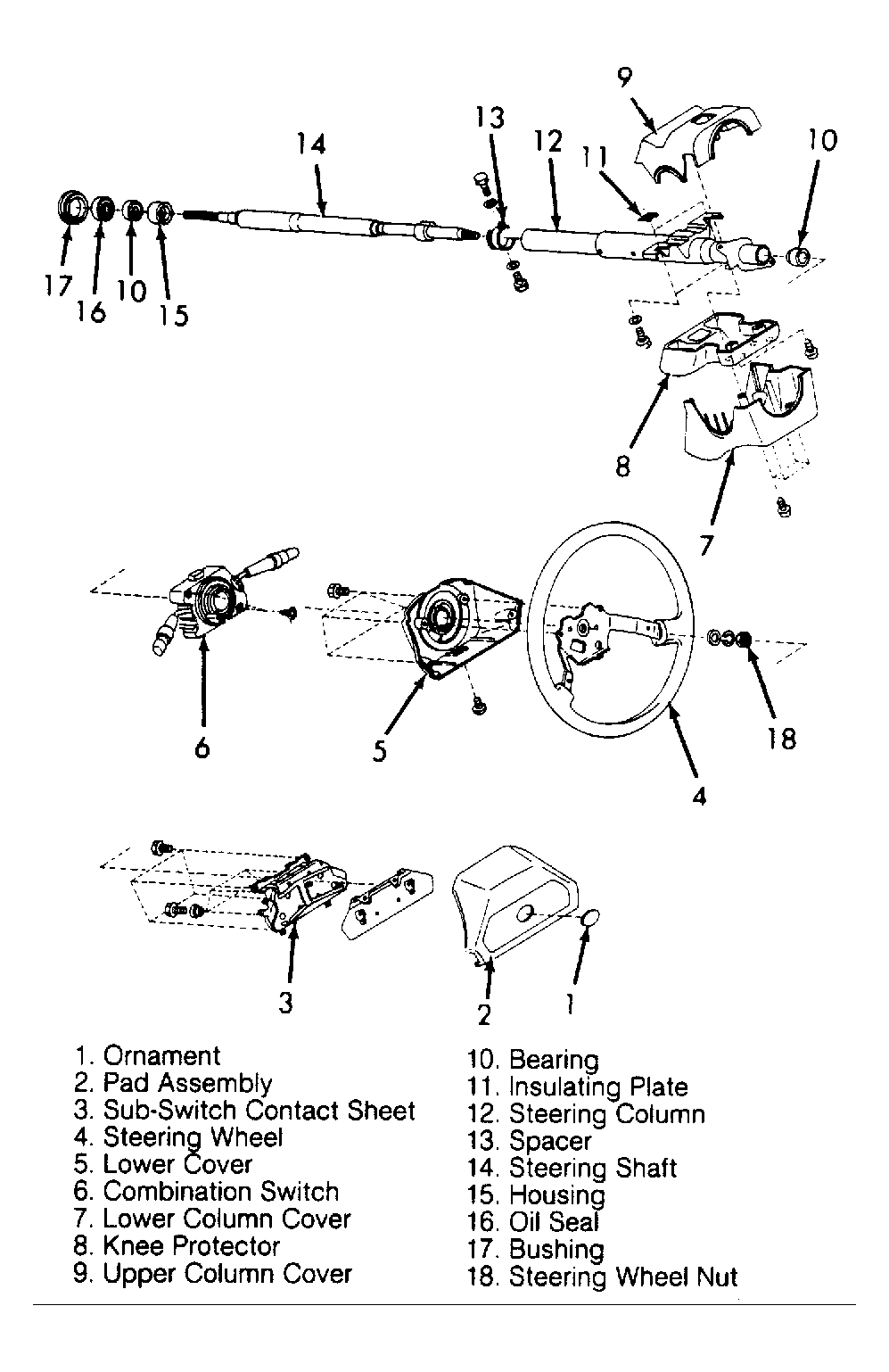

Fig 2: Identifying Rigid Steering Column Component (Legacy)
G91J03003Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Identifying Steering Column Component (Loyale)
G90F01422Courtesy of SUBARU OF AMERICA, INC.

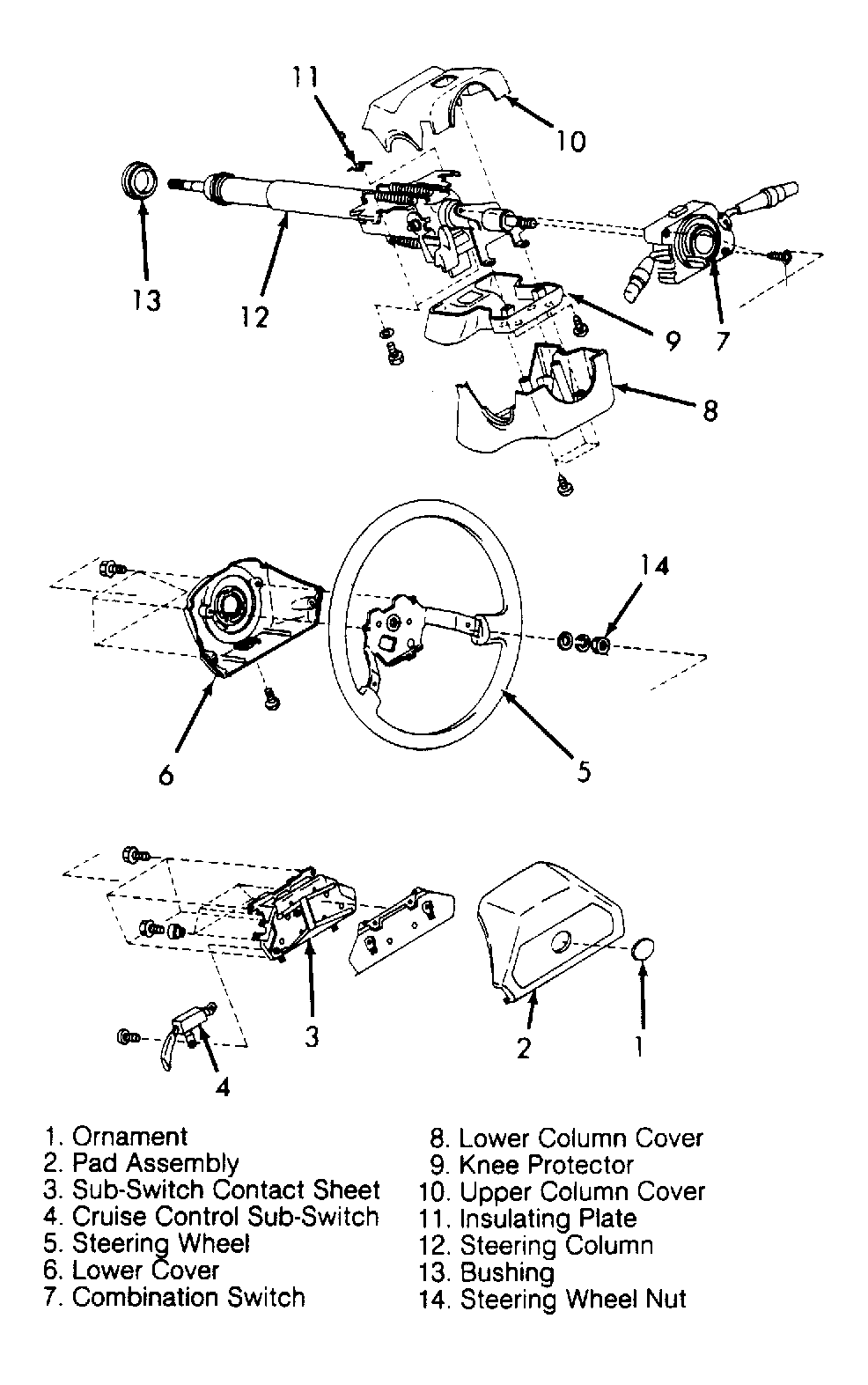

Fig 4: Identifying Tilt Steering Column Component (Legacy)
G91F03001Courtesy of SUBARU OF AMERICA, INC.

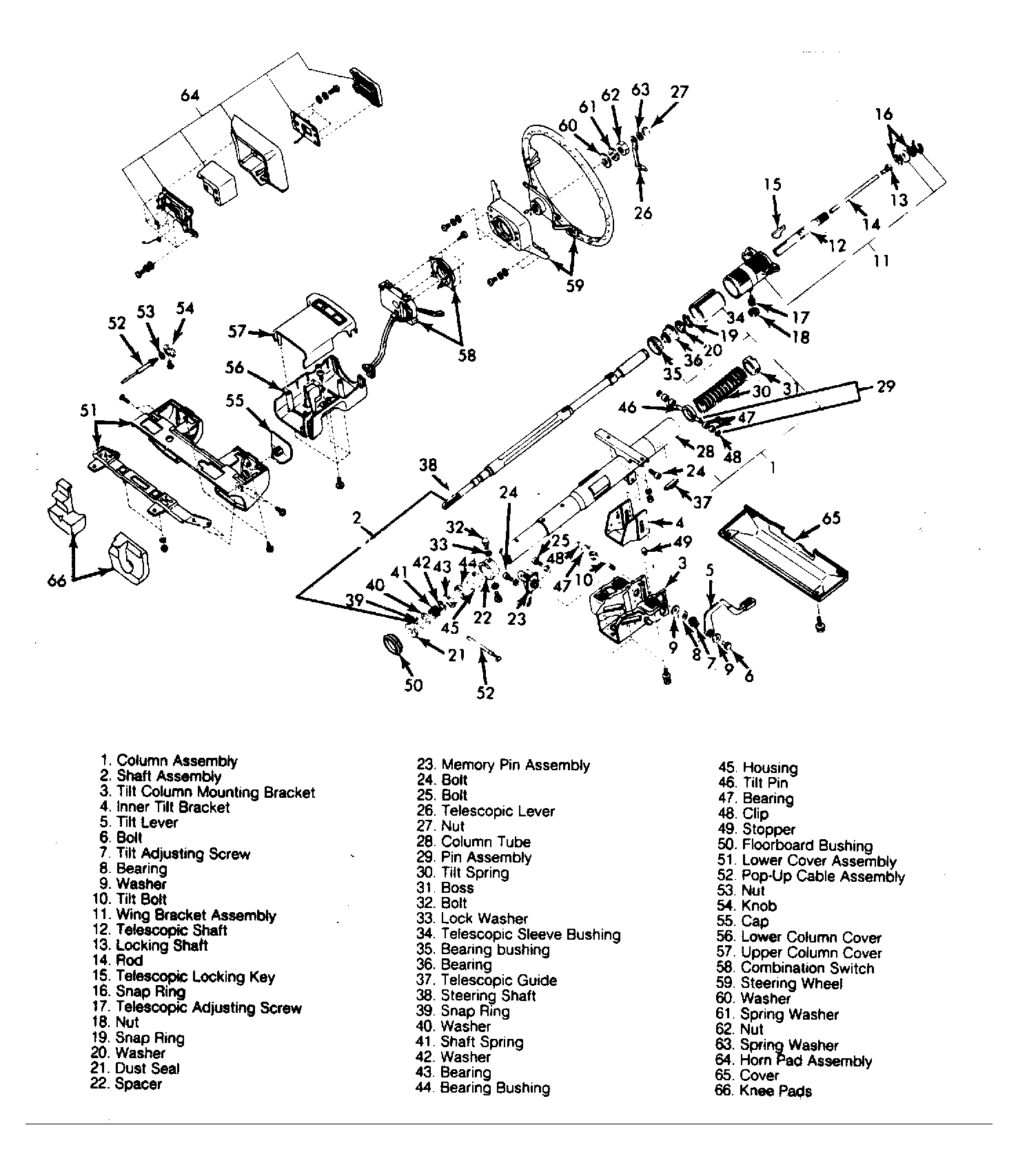

Fig 5: Identifying Steering Column Components (XT & XT6)
G58905Courtesy of SUBARU OF AMERICA, INC.
