Torque Specifications

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Camshaft Sprocket Bolt

55-61 (75-83)

Camshaft Support Bolt

12 (16)

Connecting Rod Cap Nut

32-34 (43-46)

Crankshaft Pulley Bolt

69-76 (93-103)

Cylinder Block Bolt (Left-To-Right)

17-20 (23-27)

Cylinder Block Service Hole Plug

46-56 (62-76)

Cylinder Head Bolt ⁽¹⁾

33-37 (45-50)

Drive Plate Reinforcement Bolt

51-55 (69-75)

Flywheel Bolt

51-55 (69-75)

Timing Belt Idler Bolt

26-32 (35-43)

Timing Belt Tension Adjuster Bolt

17-20 (23-27)

Timing Belt Tensioner Bracket Bolt

17-20 (23-27)

INCH Lbs. (N.m)

Oil Pan Bolt

44 (5.0)

Oil Pump Bolt

58 (6.4)

Rocker Cover Bolt

44 (5.0)

Rocker Shaft Support Bolt

Long

108 (12.2)

Short

44 (5.0)

Thermostat-to-Water Pump Bolt

52-61 (6-7)

Timing Belt Cover Bolt

44 (5.0)

Water Pump Bolt

89-124 (10.0-14.0)

⁽¹⁾

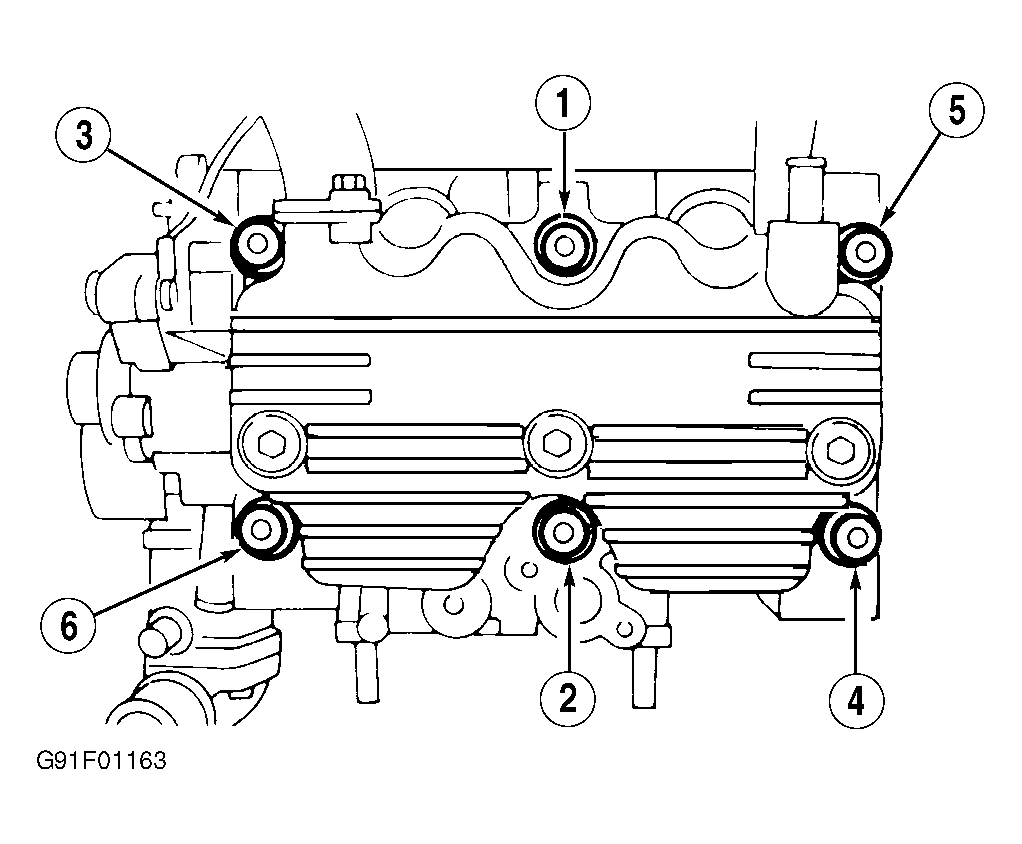

Using NEW head gasket, tighten head bolts to 21 ft. lbs. (29 N.m) and then to 51 ft. lbs. (69 N.m). Back out head bolts 180° and then another 180°. On non-turbo engines, tighten bolts No. 1 and 2 to 25 ft. lbs. (34 N.m). Tighten bolts No. 3, 4, 5 and 6 to 11 ft. lbs. (15 N.m). On turbo engines, tighten bolts No. 1 and 2 to 27 ft. lbs. (36 N.m). Tighten bolts No. 3, 4, 5, and 6 to 14 ft. lbs. (20 N.m). On all engines, tighten bolts an additional 180° in 2 equal steps. See Figure .
