Drive Pinion Shaft (4WD): Disassembly

Remove lock nut. Remove drive pinion, differential bevel gear sleeve, adjuster washers, thrust bearing, needle bearing, drive pinion collar, drive gear assembly, needle bearing, and thrust bearing. See Fig 1 and Fig 2. Press off roller bearing and washer.

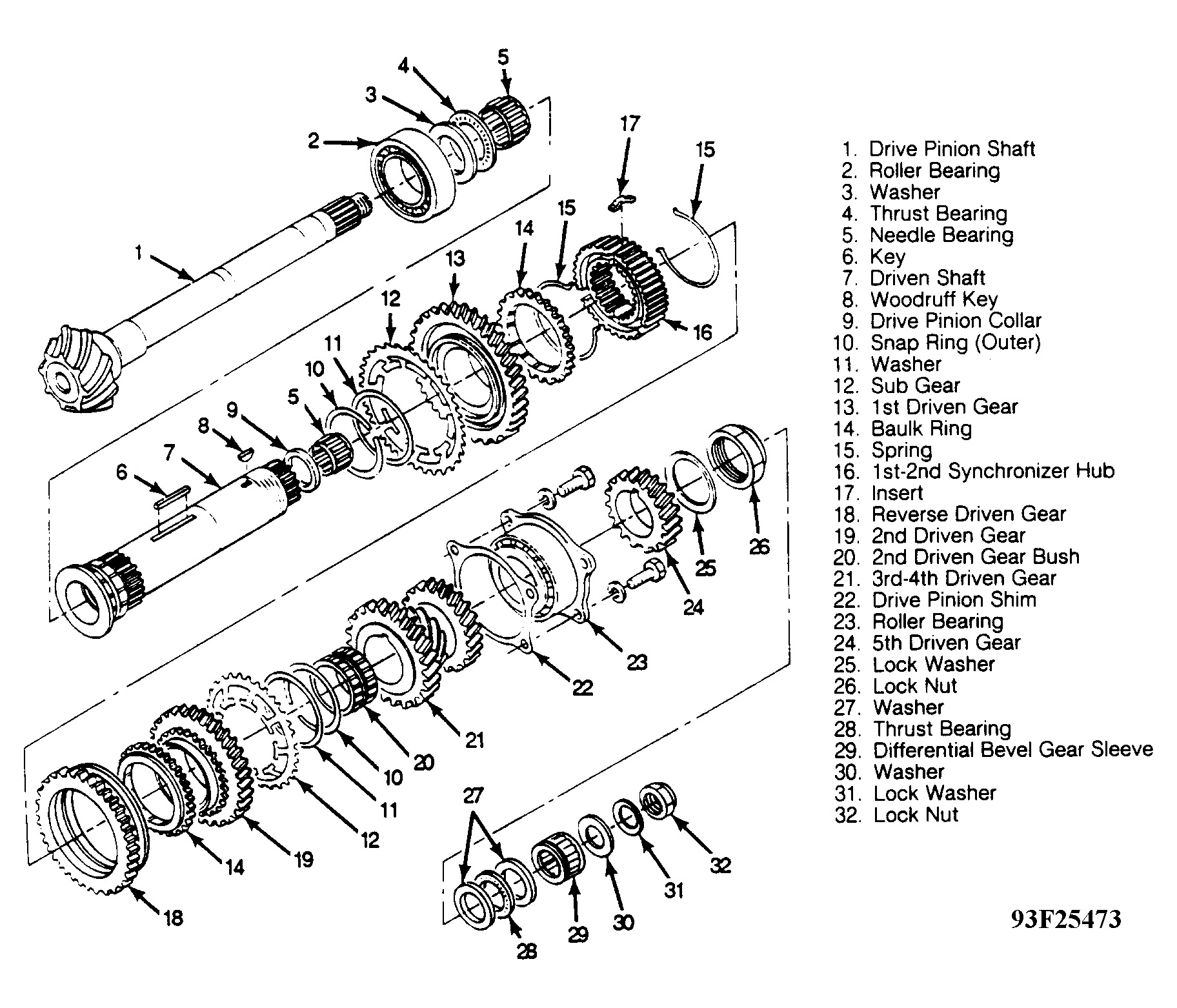

Fig 1: View Of Drive Pinion & Related Components (4WD 90-92)

Courtesy of SUBARU OF AMERICA, INC.

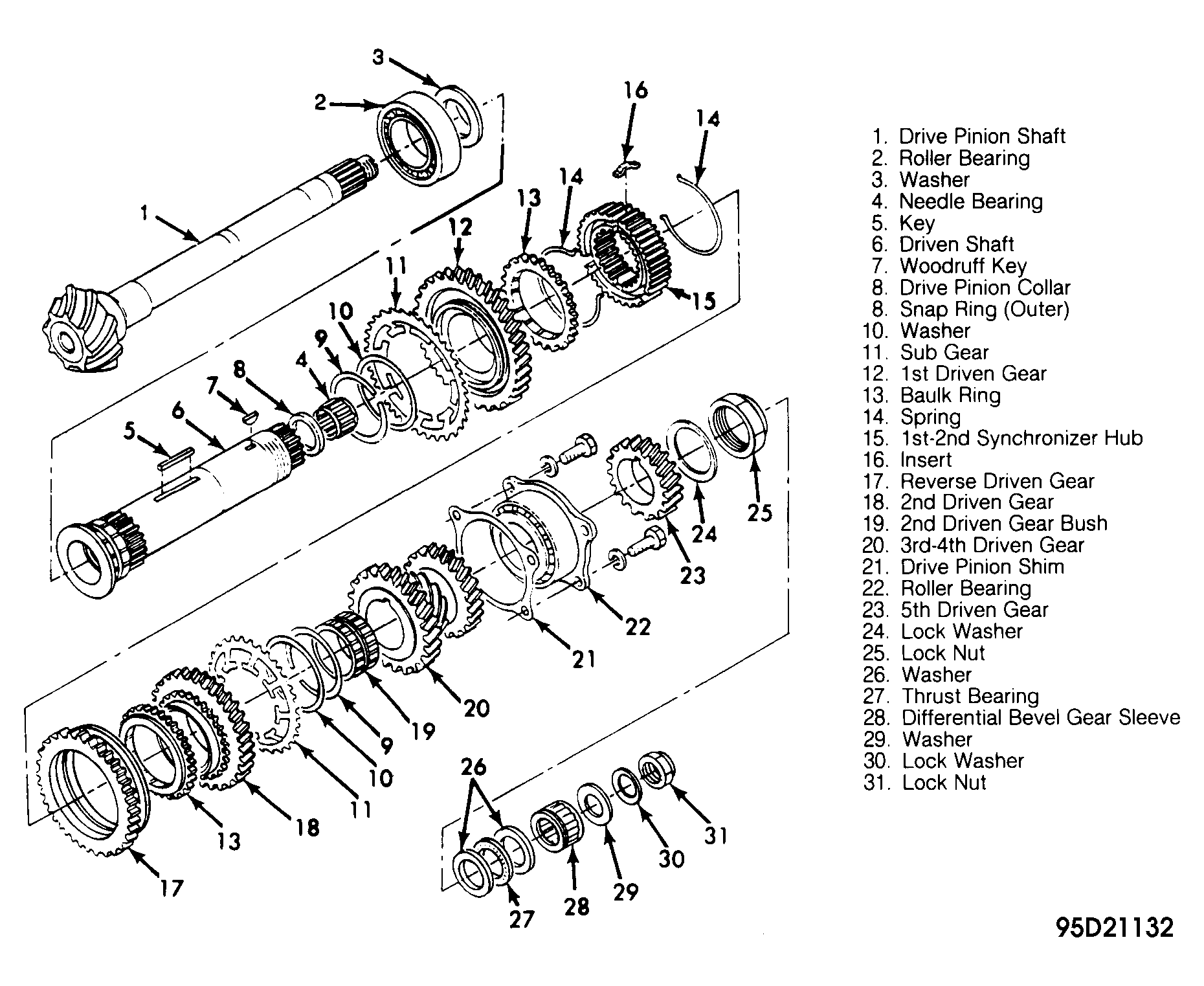

Fig 2: View Of Drive Pinion & Related Components (4WD 93-94)

Courtesy of SUBARU OF AMERICA, INC.
