Retrieving Trouble Codes

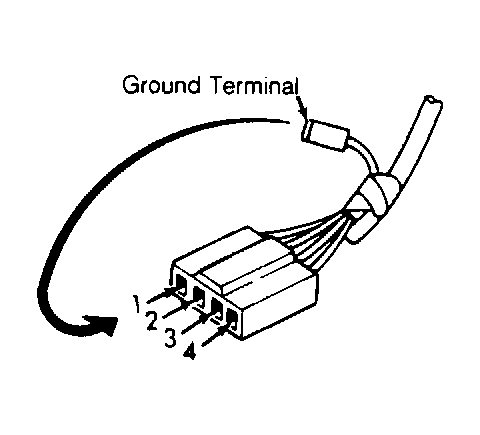

- Turn ignition off. Connect jumper wire from diagnostic connector terminal No. 1 (located under instrument panel lower cover) to ground terminal. See Fig 1
. Turn ignition on.
Courtesy of SUBARU OF AMERICA, INC.
- Codes are displayed by indicator light flashes. Codes are separated by a 1.2-second pause between .3-second flashes of trouble code. For trouble code explanation, see TROUBLE CODES table and DIAGNOSING CODES. When no trouble codes are present, indicator light displays a .6-second flash and a .6-second pause.
- Codes will flash until ignition is turned off. To clear codes, turn off ignition and remove No. 25 fuse or disconnect negative battery cable.
