Self Diagnosis

When the seat belt warning light blinks at abnormal intervals, conduct the self-diagnosis operation as follows:

1. Turn ignition switch ON (with engine OFF).
2. Connect GND terminal to diagnosis connector located below lower instrument cover.
3. Check in accordance with the trouble code outputted by the seat belt warning light.

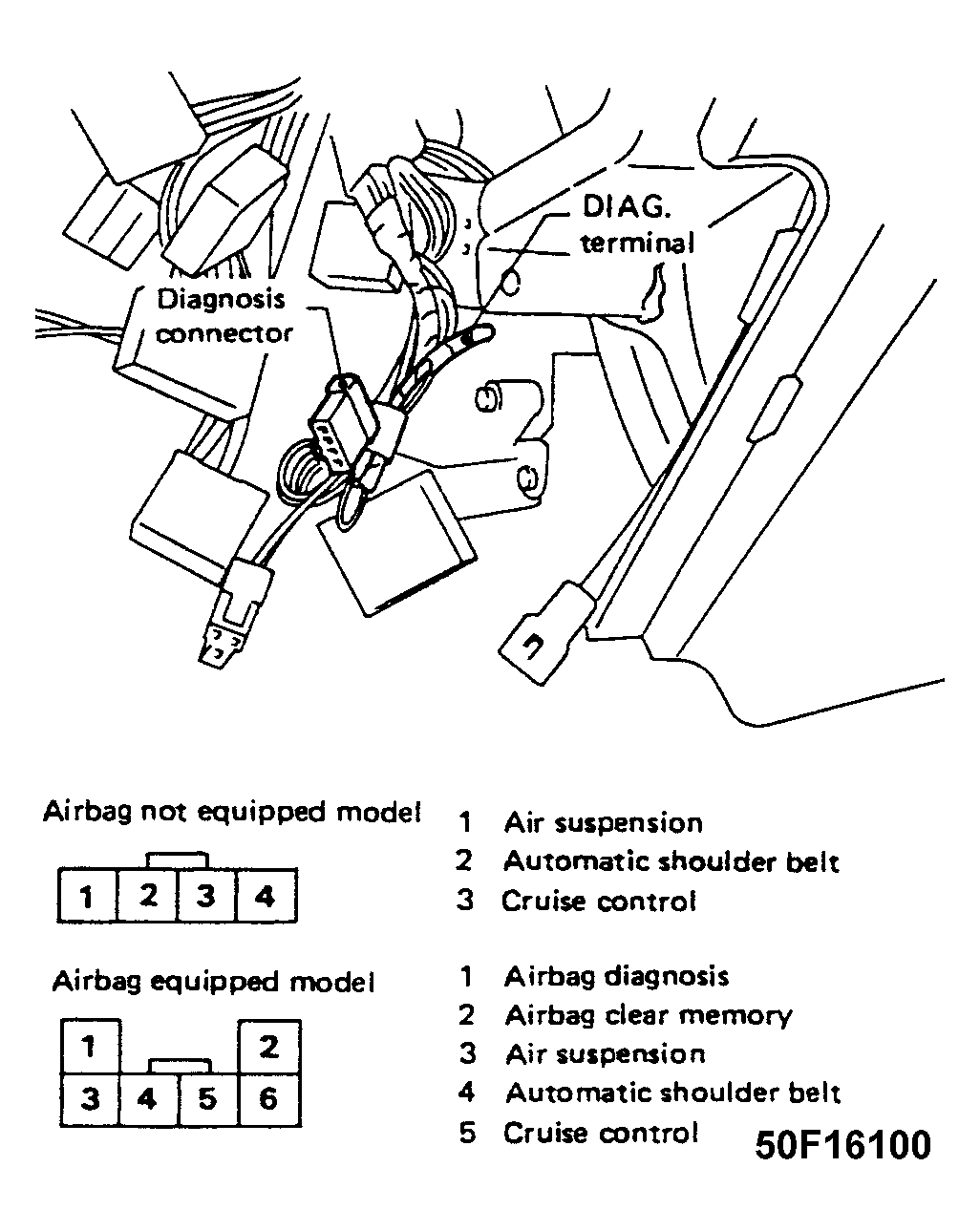

Fig 1: Diagnosis Connector & DIAG. Terminal Locations
