Removal (Wagon Model)

  1. Raise rear cushion.
  2. Remove rear backrest from body.
  3. Remove lap anchor cover from lower portion of rear quarter trim, and remove upper webbing cover.
  4. Remove anchor bolts located outer side of outer seat and sash guide.
  5. Insert webbing cover, sash guide and seat belt into outlet in upper portion of rear quarter trim, and remove rear quarter trim.

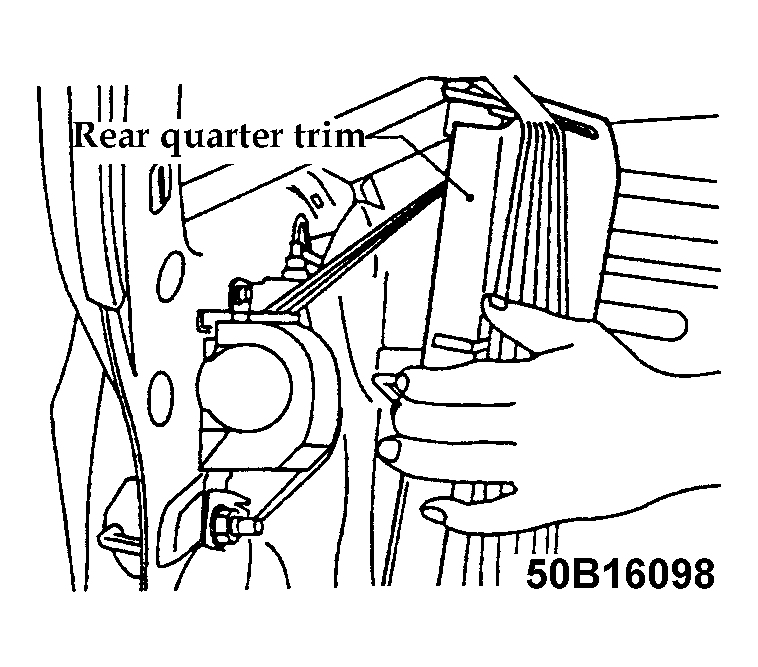

    Fig 1: Rear Quarter Trim Removal
    G50B16098
  6. Remove rear backrest striker, then remove bolts and 7/16-20 UNF nuts which secure ELR. Remove ELR. Remove outer seat belt and center seat belt in similar manner used to remove those from 4-Door Sedan.
