Removal (4-Door Sedan Model)

  1. Remove rear cushion from body.
  2. Remove rear backrest from body.
  3. Remove outer anchor bolts.
  4. Remove bolts from sash guide and sash guide cover at D-pillar.
  5. Remove screw from lower side of rear quarter trim, and lift up lower side of rear quarter trim.
  6. Remove front bolt, then rear bolt, from ELR.
  7. Remove belt from outlet in rear quarter along slit.
  8. Remove inner bolts which secure outer seat.

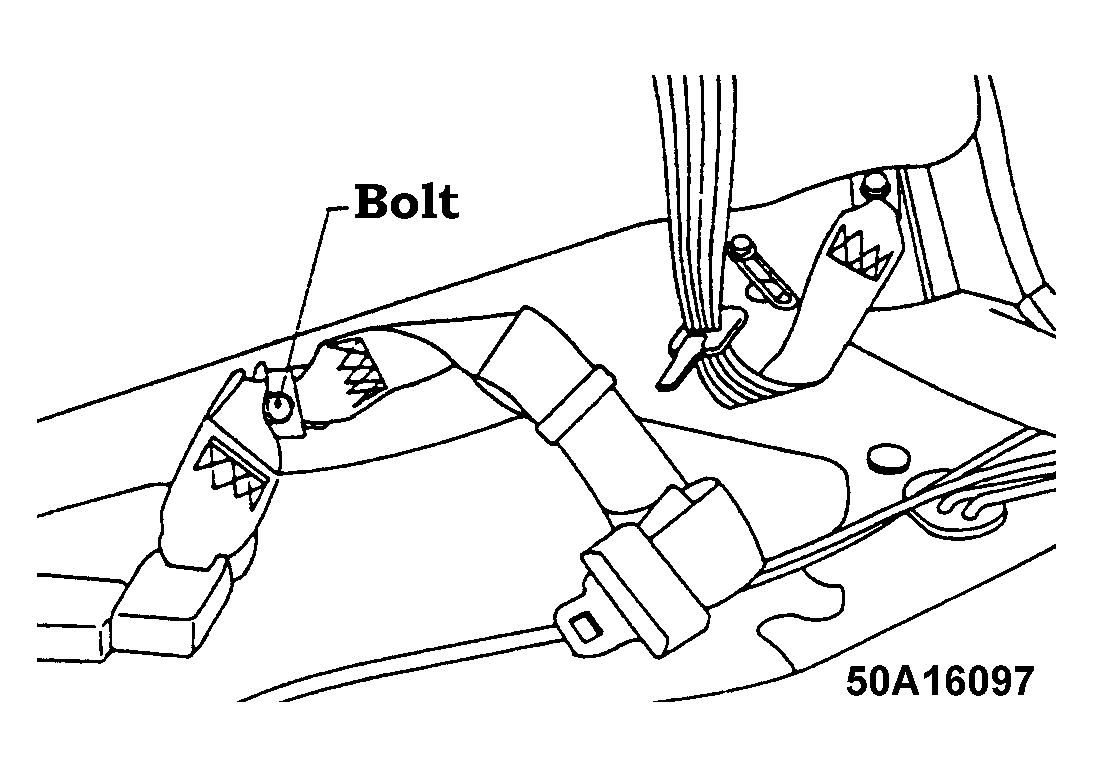

    Fig 1: Inner Rear Seat Belt Mounting Bolt Location
    G50A16097
  9. Remove washer from bolt, then remove bolt, belt assembly, and anchor plate bracket.
  10. Remove inner bolts (2 places) from center seat.
  11. Remove washer from bolt, and remove bolt, belt assembly and anchor plate bracket.
