Front Seat Belt ELR: Removal

Push emergency release button on the shoulder anchor and remove belt.
Remove belt stopper. Withdraw shoulder belt from belt guide and wind on shoulder belt until the end reaches outlet hole on console box.

Fig 1: Belt Holder Location
Remove front seat.
Remove console box.
Remove anchor bolts which hold ELR assembly.

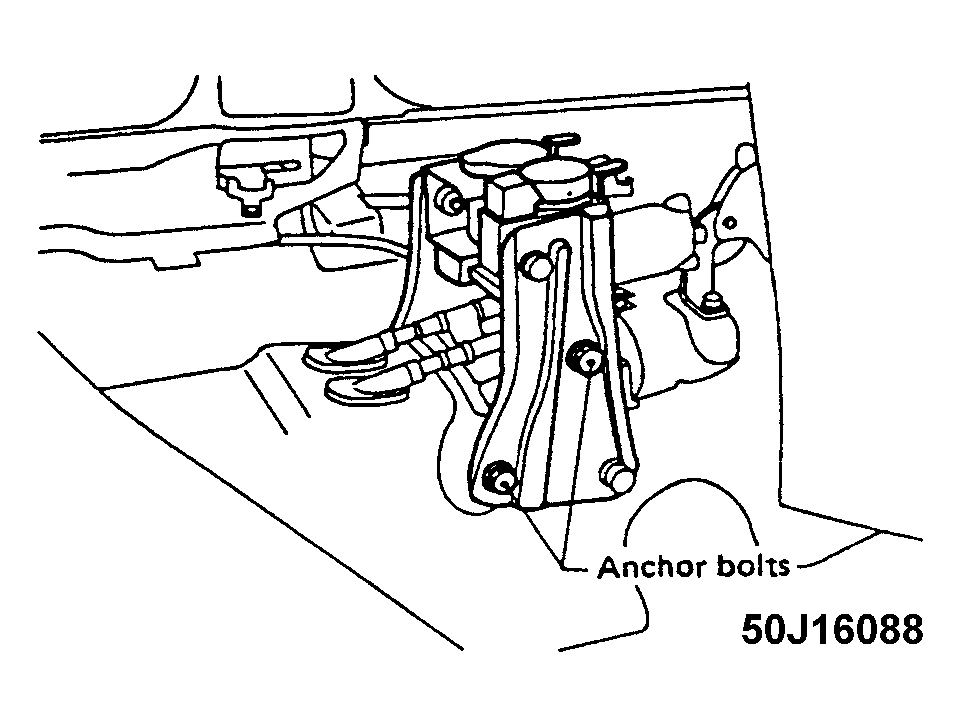

Fig 2: ELR Assembly Anchor Bolt Locations
Remove M6-bolts which mount base of ELR.

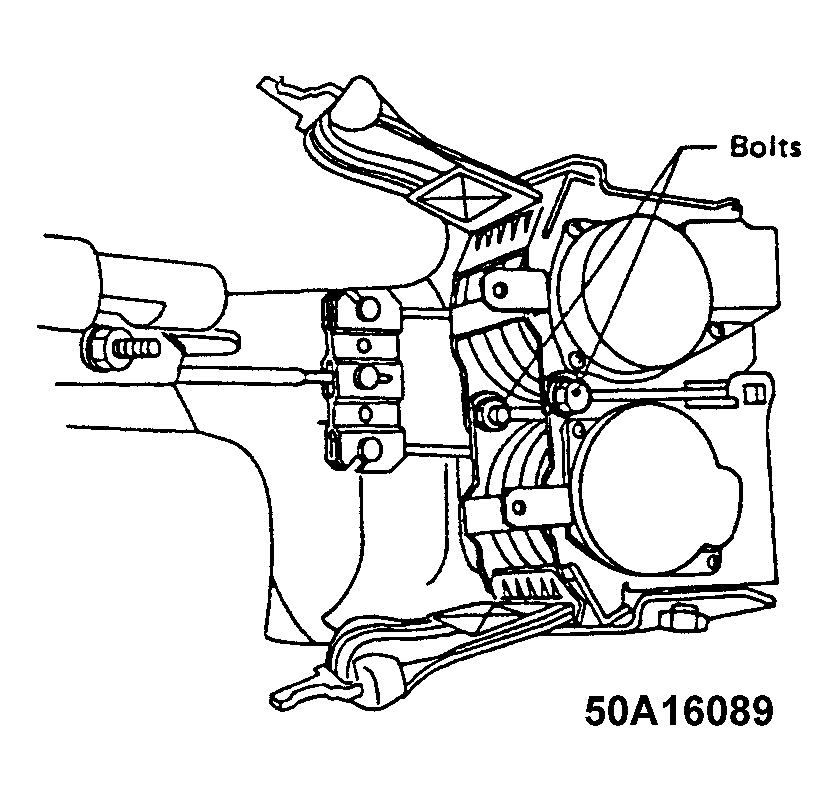

Fig 3: ELR Mounting Bolt Removal
