Front Seat Belt (Manual Lap Belt) Outer Belt Assembly: Removal
- Tilt backrest completely backward.

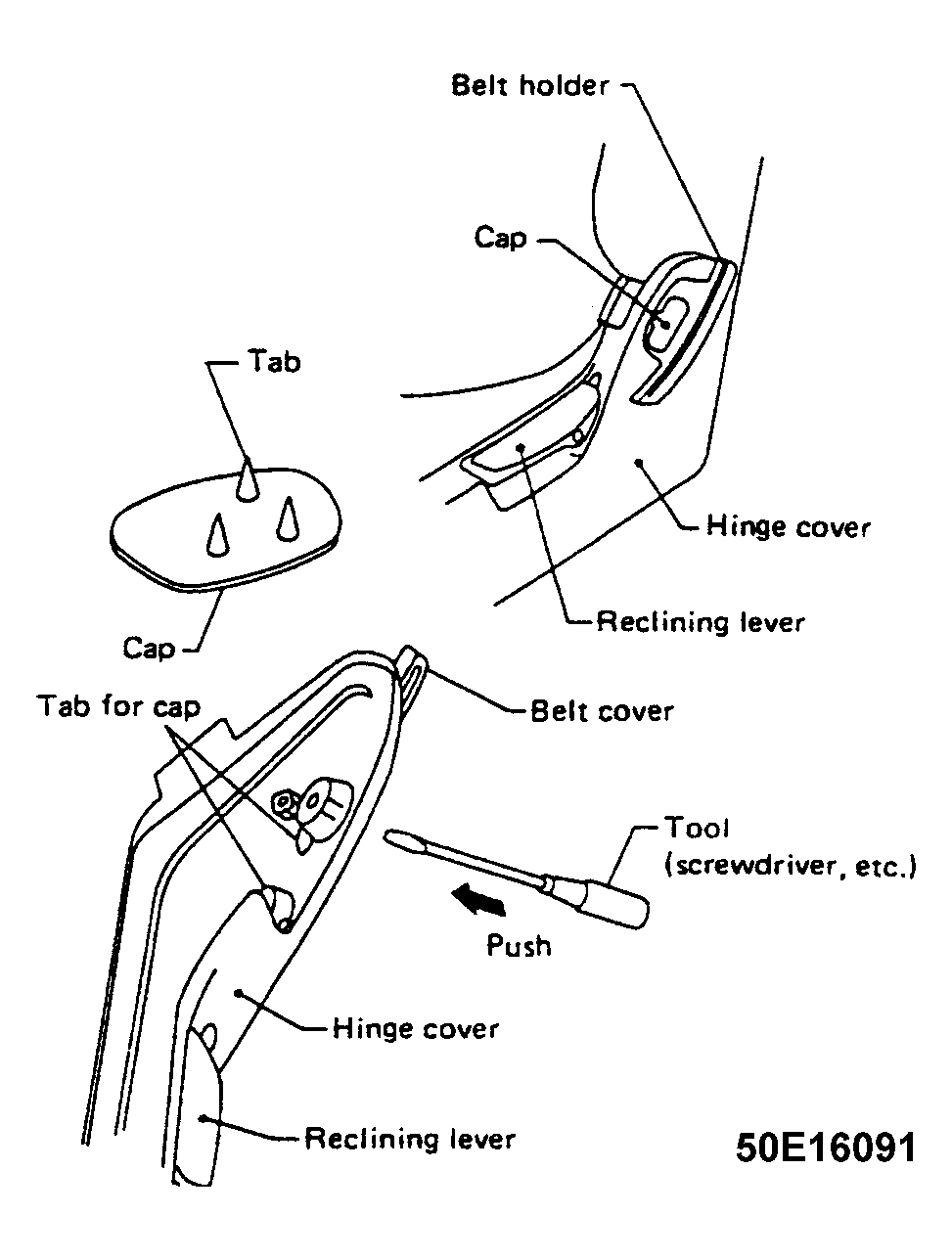

- Press tabs (2 places) to remove cap.
- Slide front seat to front end along slide rails.
- Remove center pillar lower trim panel from body.

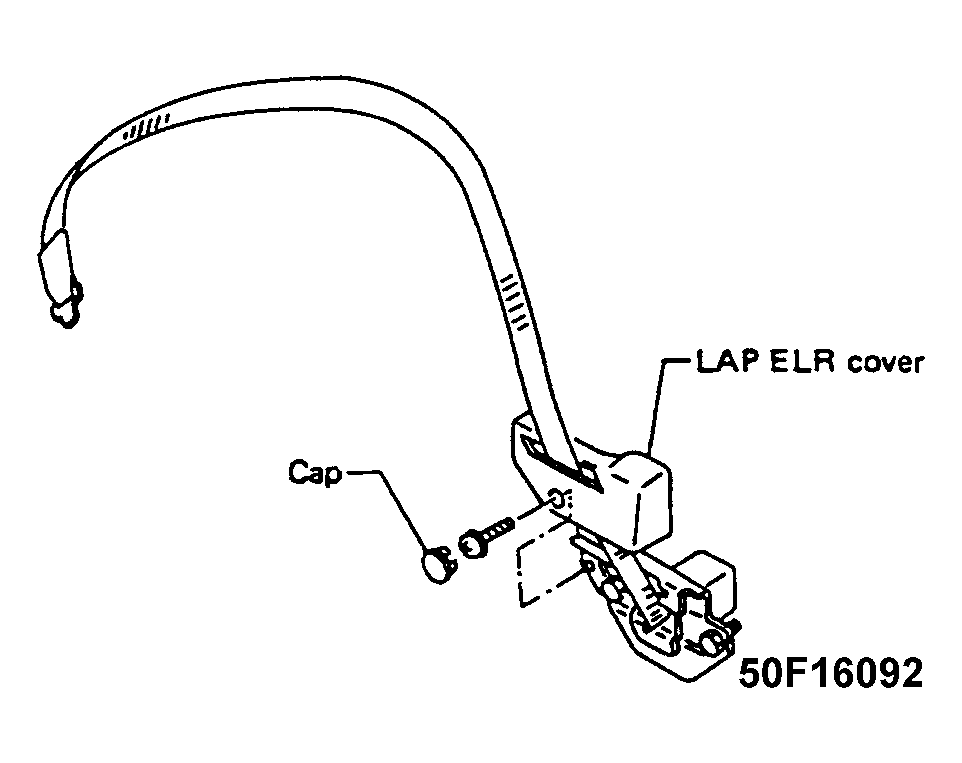

- Remove cap from LAP ELR cover.
- Remove screws which secure LAP ELR cover, and slide it forward and away from body.
- On 4-Door Sedan, remove rear cushion. On Station Wagon, fold rear cushion forward.
- Roll up rear edge of mat, and remove rear side sill inner trim.

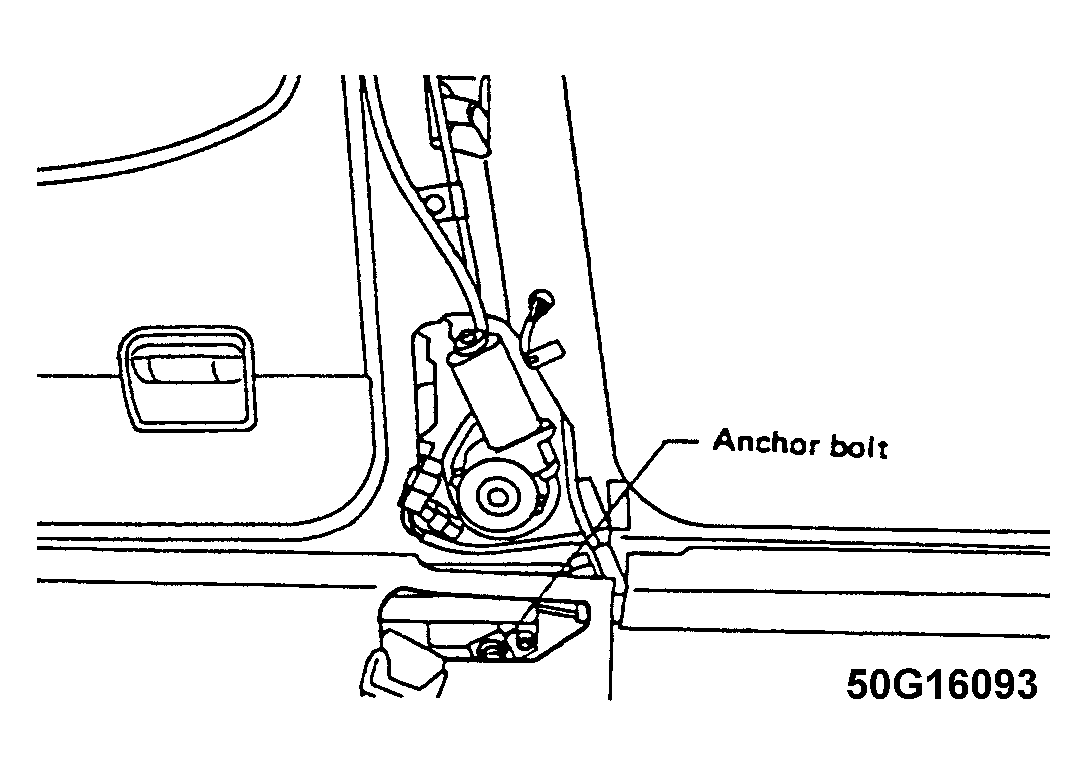

- Remove anchor bolts (two places) and move ELR forward.
- Remove opener cable and harness clip from ELR, and pull ELR out of hole in body.
