Front Seat Belt (Manual Lap Belt) Inner Belt Assembly: Removal

  1. Push emergency release button on the shoulder anchor and remove belt.
  2. Remove belt stopper. Remove shoulder belt from belt guide and reel it until its end reaches outlet hole in console box.
  3. Remove front seats. (Disconnect belt warning connector located under driver seat.)
  4. Remove anchor nut and inner slide rail as a unit.

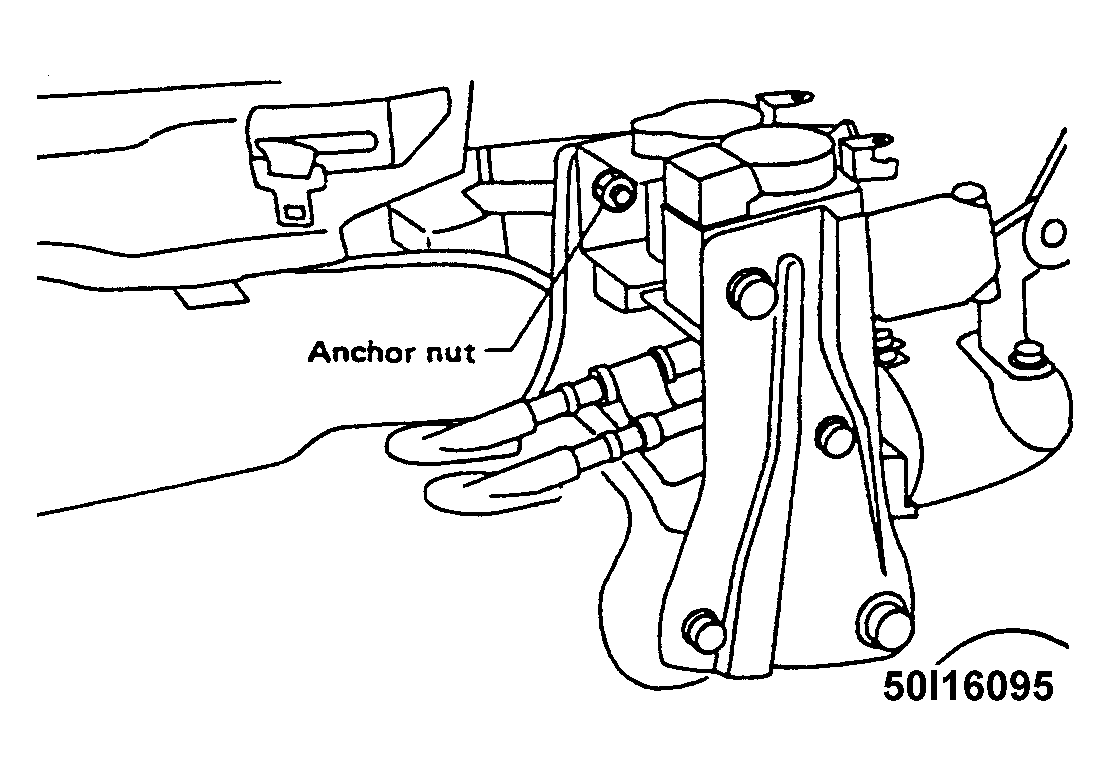

Fig 1: Inner Lap Belt Anchor Bolt Location
G50I16095
