Removal (Legacy)

  1. Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS  . Disable SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM  . Disconnect air bag module 3-pin Yellow connector at base of steering column. See Figure .

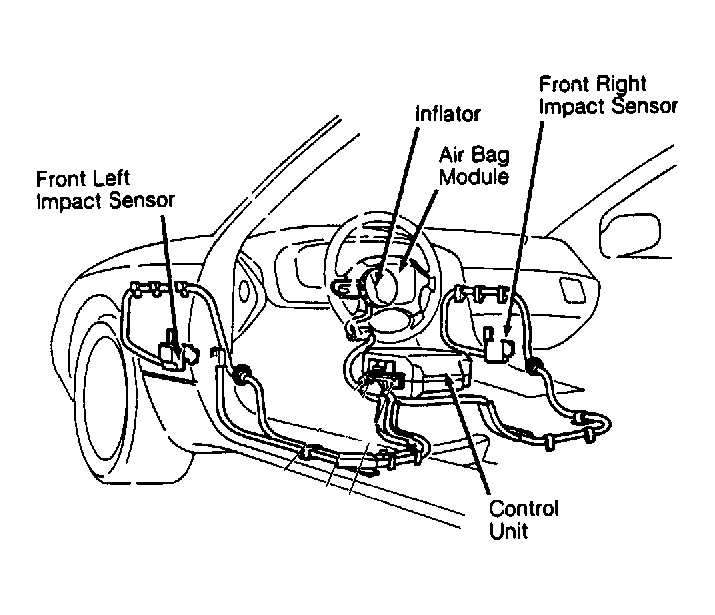

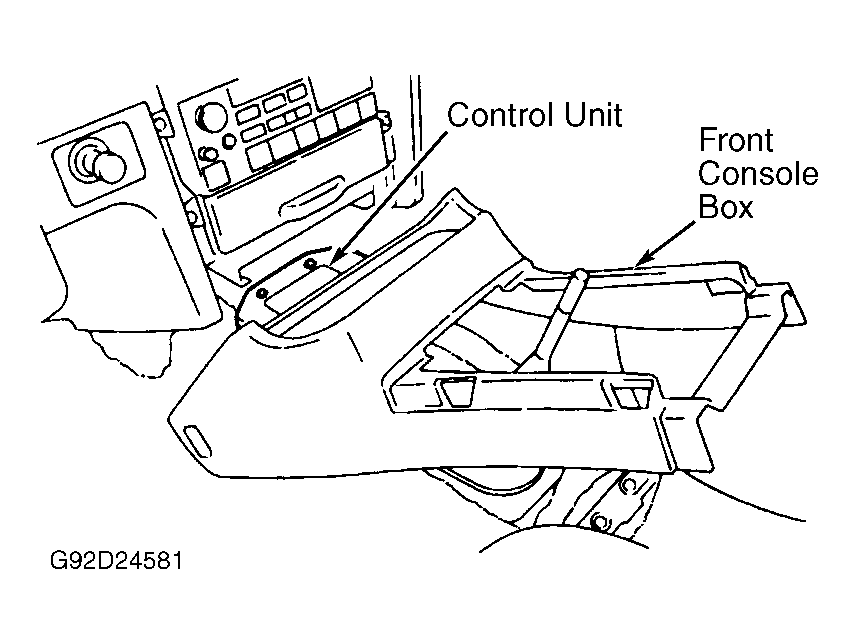

  2. Front impact sensors are located in left and right fenderwell areas. Note location of impact sensor wiring harness. See Figure . Remove front console box. See Figure . If replacing left impact sensor, disconnect 2-pin Orange connector from control unit.
  3. If replacing right impact sensor, disconnect 2-pin Blue connector from control unit. On all models, remove carpeting and side sill cover. Remove seat (if necessary). Raise and support front of vehicle. Remove front wheels and mud guards. Remove sensor wiring harness brackets. Remove impact sensor.
