Air Bag Main Wiring Harness Test

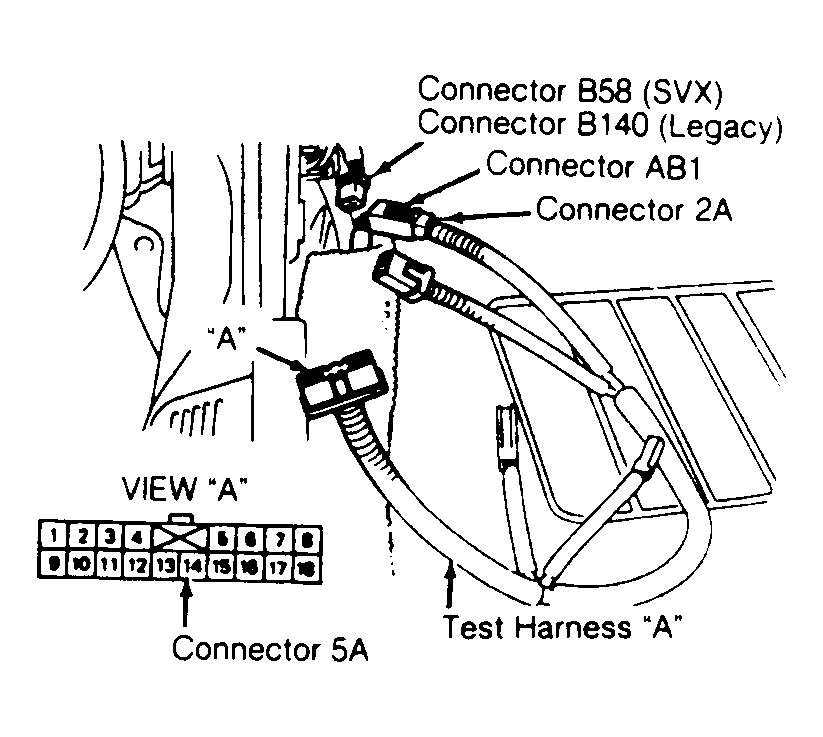

  1. Turn ignition switch to OFF position. Disconnect and shield negative then positive battery cables. Wait a minimum of 10 minutes. Disconnect 7-pin Yellow connector AB1 from body wiring harness connector B140 (Legacy) or B58 (SVX). Connector is located behind left kick panel. Connect connector AB1 to connector 2A of Test Harness "A" (98299PA000). See Figure .
  2. Using an ohmmeter, check resistance between terminal No. 1 at connector 5A of test harness "A" and terminal No. 2 at connector 5B of test harness "B". If resistance is more than 10 ohms, replace air bag main wiring harness.
  3. If resistance is less than 10 ohms, check resistance between ground and terminal No. 1 at connector 5A of test harness "A". If resistance is less than 10 k/ohms, replace air bag main wiring harness. If resistance is more than 10 k/ohms, check resistance between ground and terminal No. 2 at connector 5B of test harness "B". If resistance is less than 10 k/ohms, replace air bag main wiring harness. If resistance is more than 10 k/ohms, go to FUSE NO. 8 CHECK.
