Water Pump: Removal

Disconnect negative battery cable. Drain engine coolant. Disconnect radiator outlet hose clamp. See Fig 1 . Remove radiator/fan assembly as a unit. See Fig 2 .

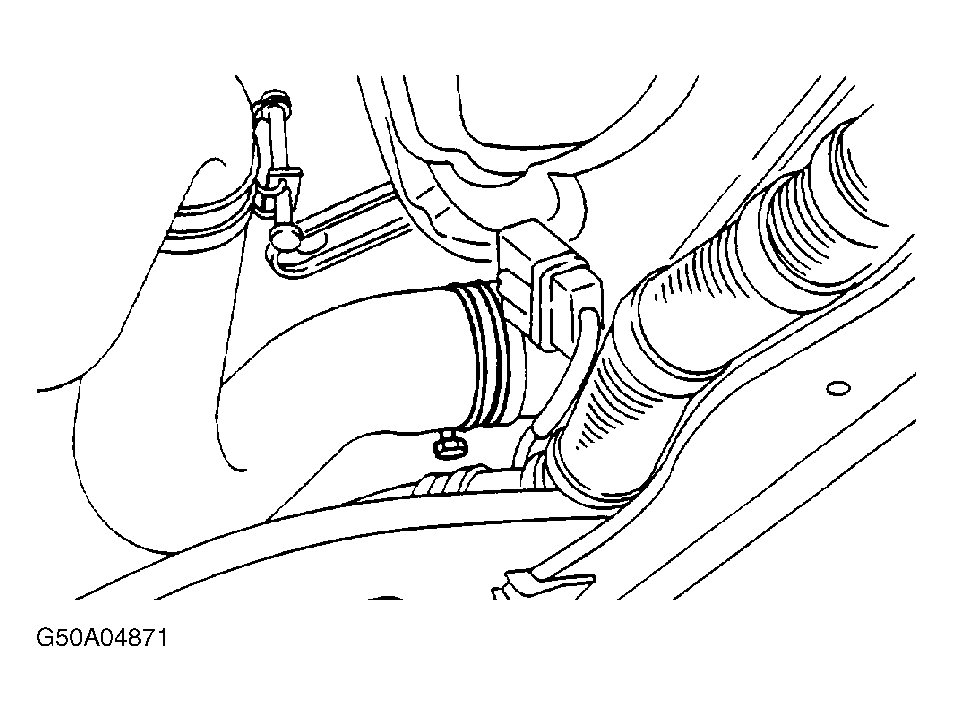

Fig 1: Radiator Outlet Hose Identification
Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Removing Radiator/Fan Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove "V" belts and timing belt. See TIMING BELT . Remove belt tensioner adjuster. Remove camshaft angle sensor. Remove water pump. Remove oil pump assembly and gasket. Remove left camshaft pulley. See Fig 3 . Remove left side rear timing belt cover. See Fig 4 .

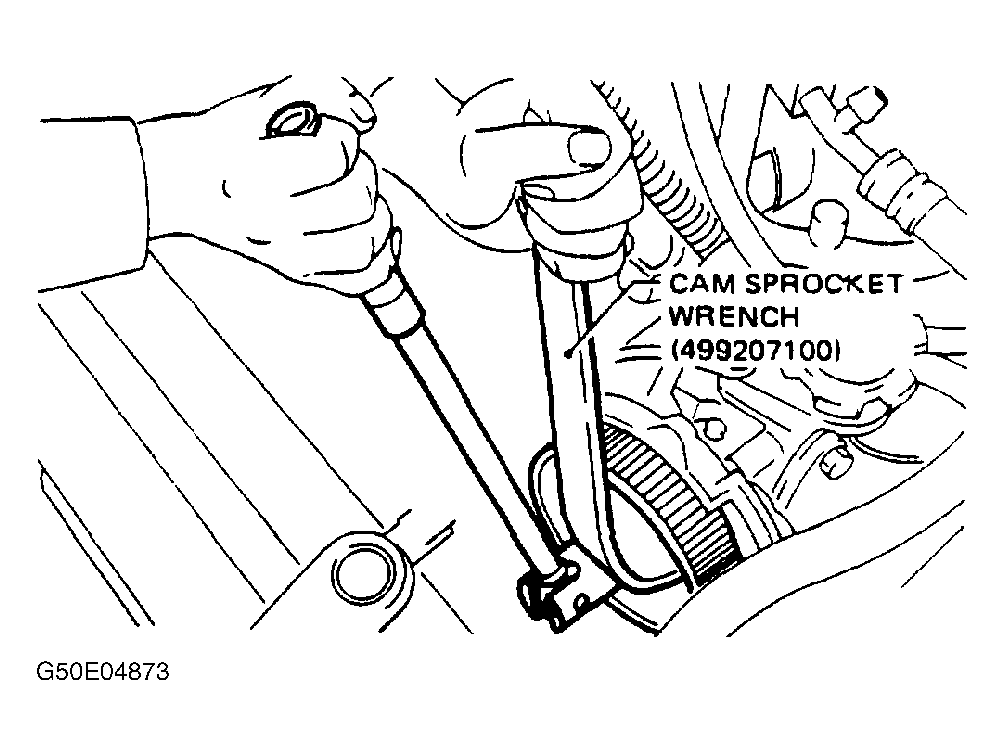

Fig 3: Removing Left Camshaft Pulley
Courtesy of SUBARU OF AMERICA, INC.

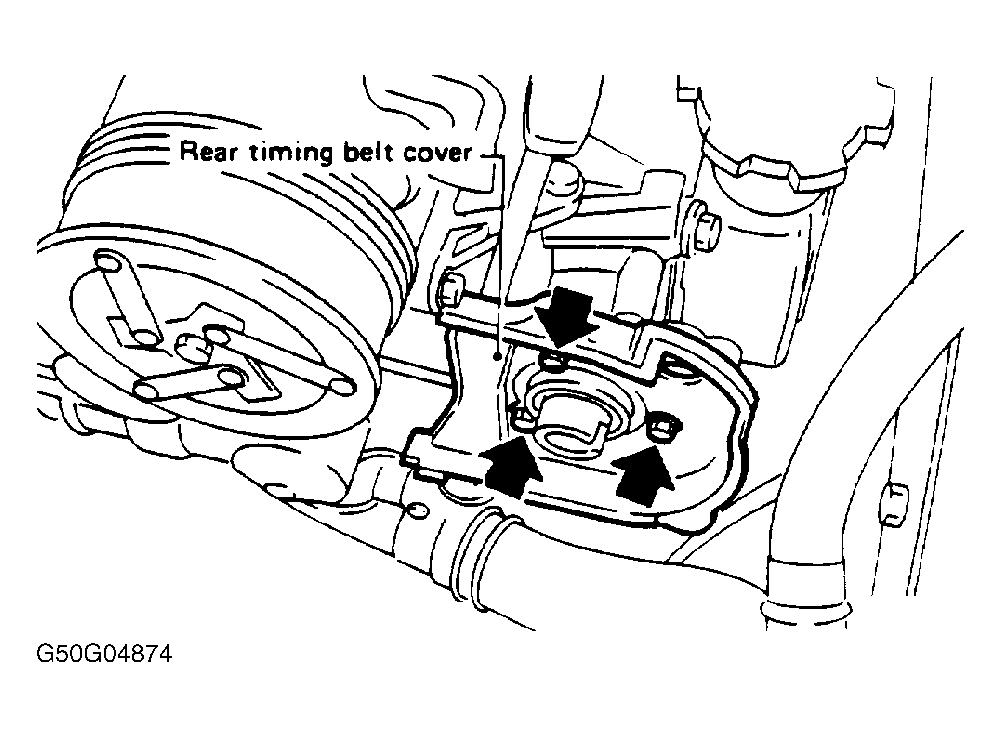

Fig 4: Removing Left Side Rear Timing Belt Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove belt tensioner bracket. Disconnect radiator hose and heater hose from water pump. Remove water pump attaching bolts and water pump. See Fig 5 .

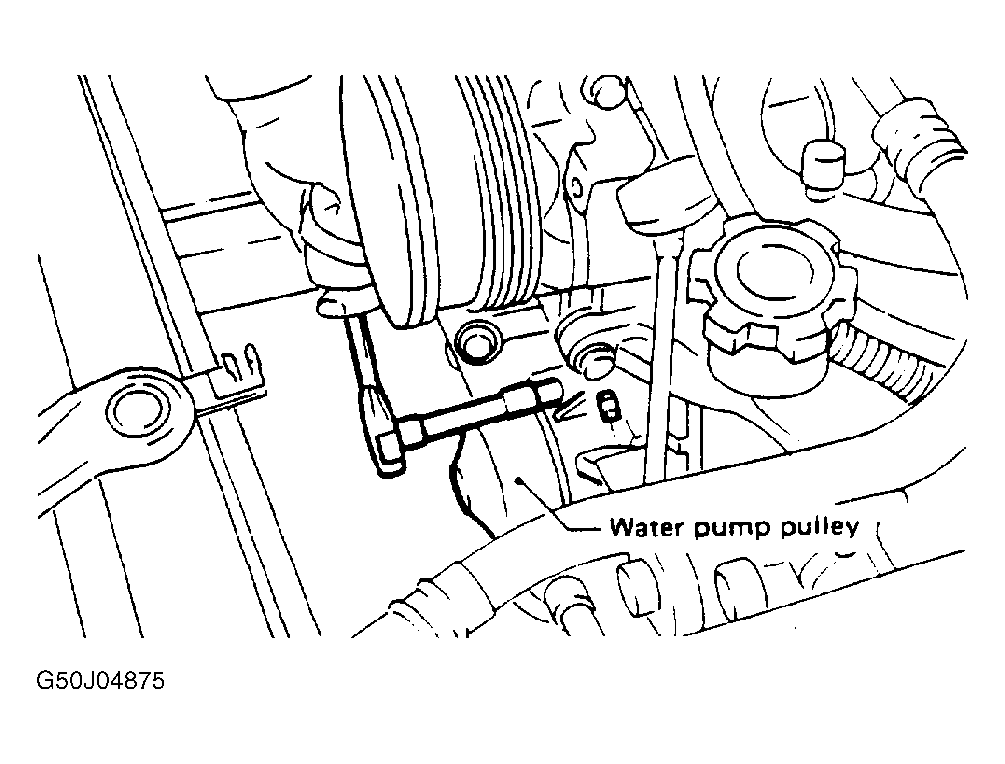

Fig 5: Removing Water Pump

Courtesy of SUBARU OF AMERICA, INC.
