Removal & Disassembly (Justy)

Remove axle shaft. See DRIVE AXLE SHAFTS  under REMOVAL, DISASSEMBLY, REASSEMBLY & INSTALLATION. With rear housing removed, move spacer inside housing in radial direction. Using a brass drift, drive outer bearing, race and oil seal out of housing. Remove spacer. Drive inner bearing, race and oil seal out of housing. See Fig 1 .

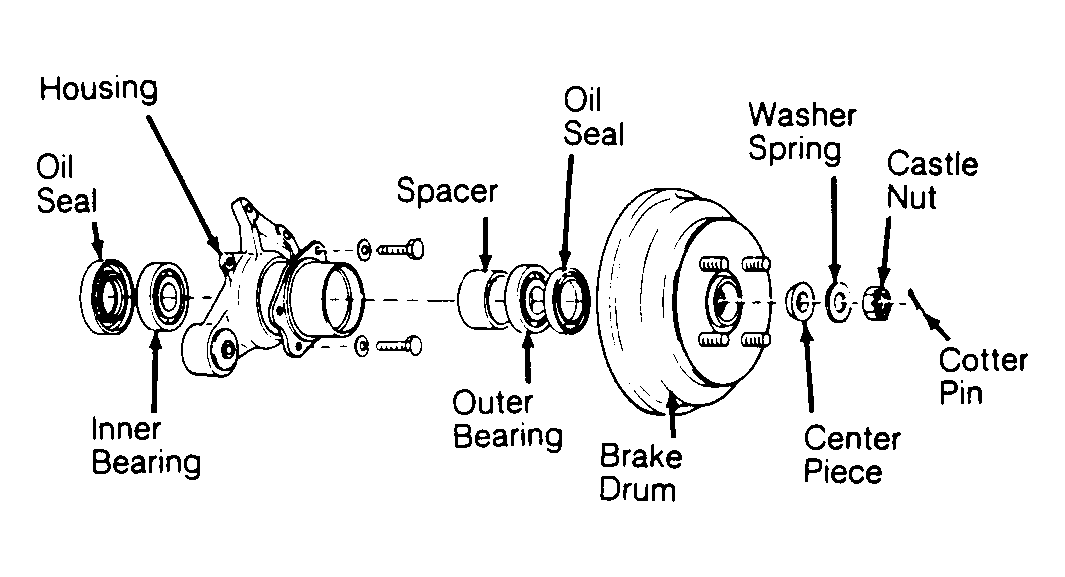

Fig 1: Exploded View Of 4WD Rear Hub Assembly (Justy)

Courtesy of SUBARU OF AMERICA, INC.
