Hazard Switch Continuity Tests (JUSTY, Legacy & LOYALE)

Ensure continuity is present between terminals as indicated in appropriate figure. SeeFig 1 -Fig 3 . Replace as necessary.

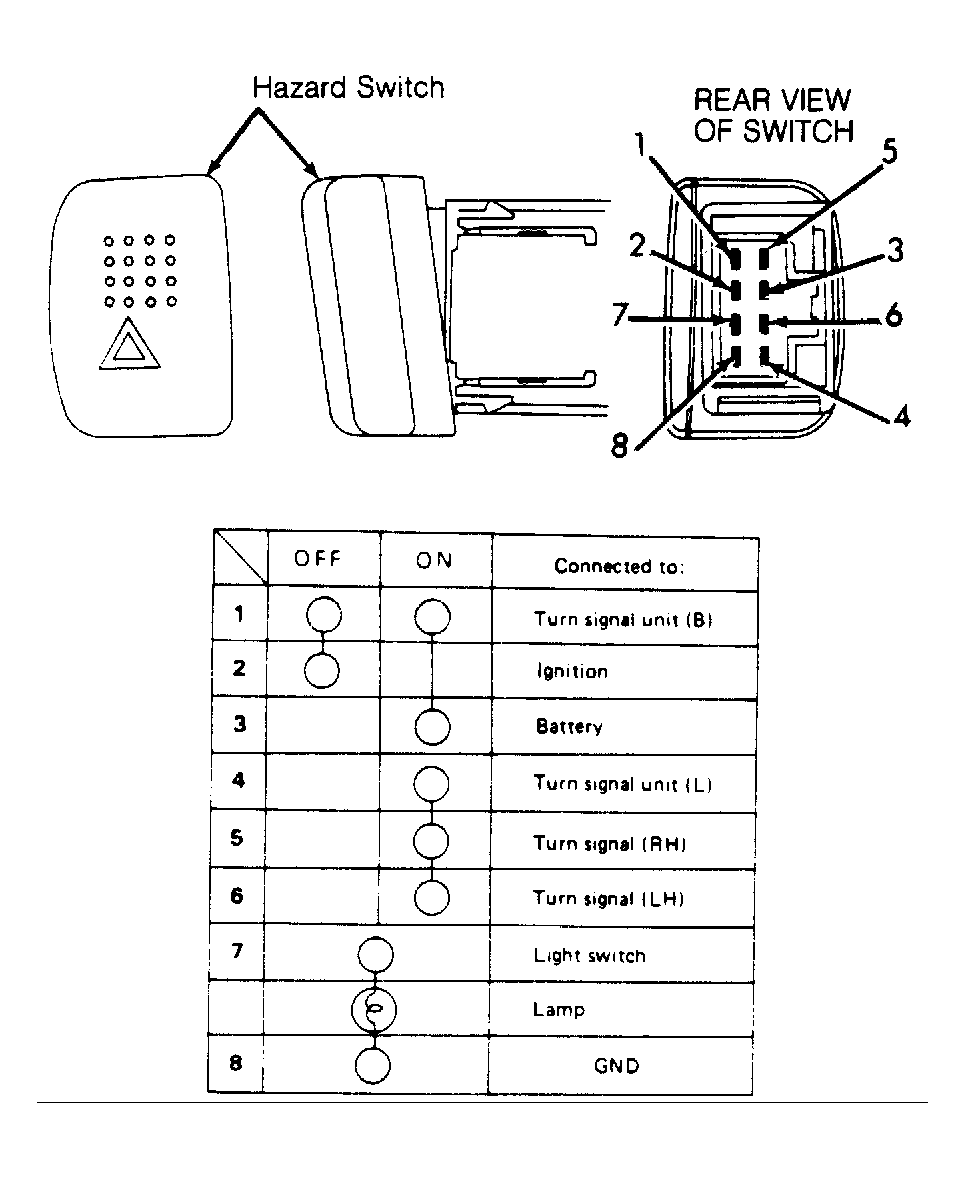

Fig 1: Testing Hazard Switch (Justy)

Courtesy of SUBARU OF AMERICA, INC.

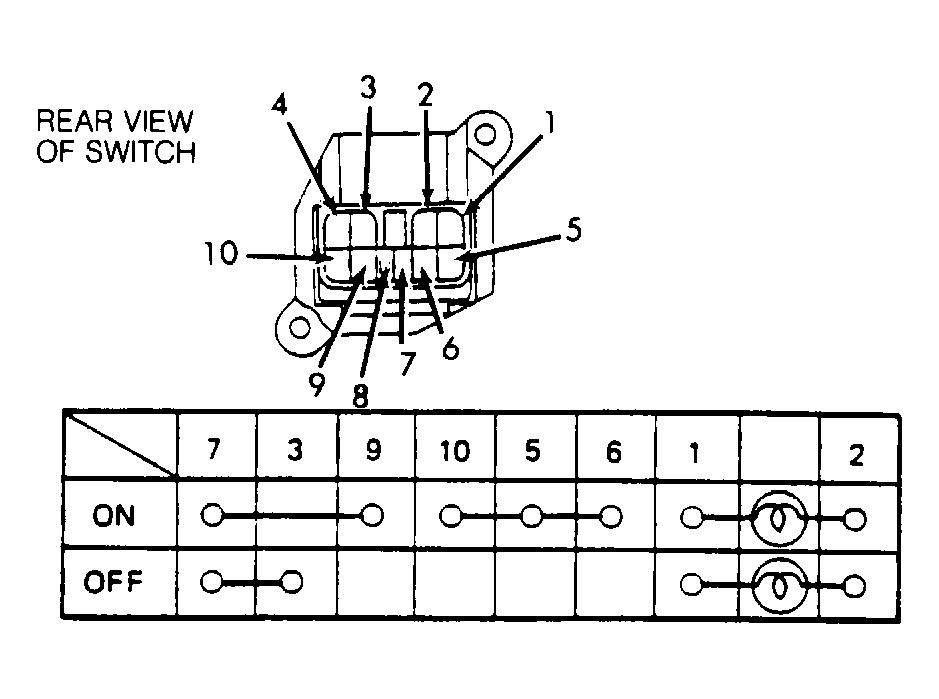

Fig 2: Testing Hazard Switch (Legacy)

Courtesy of SUBARU OF AMERICA, INC.

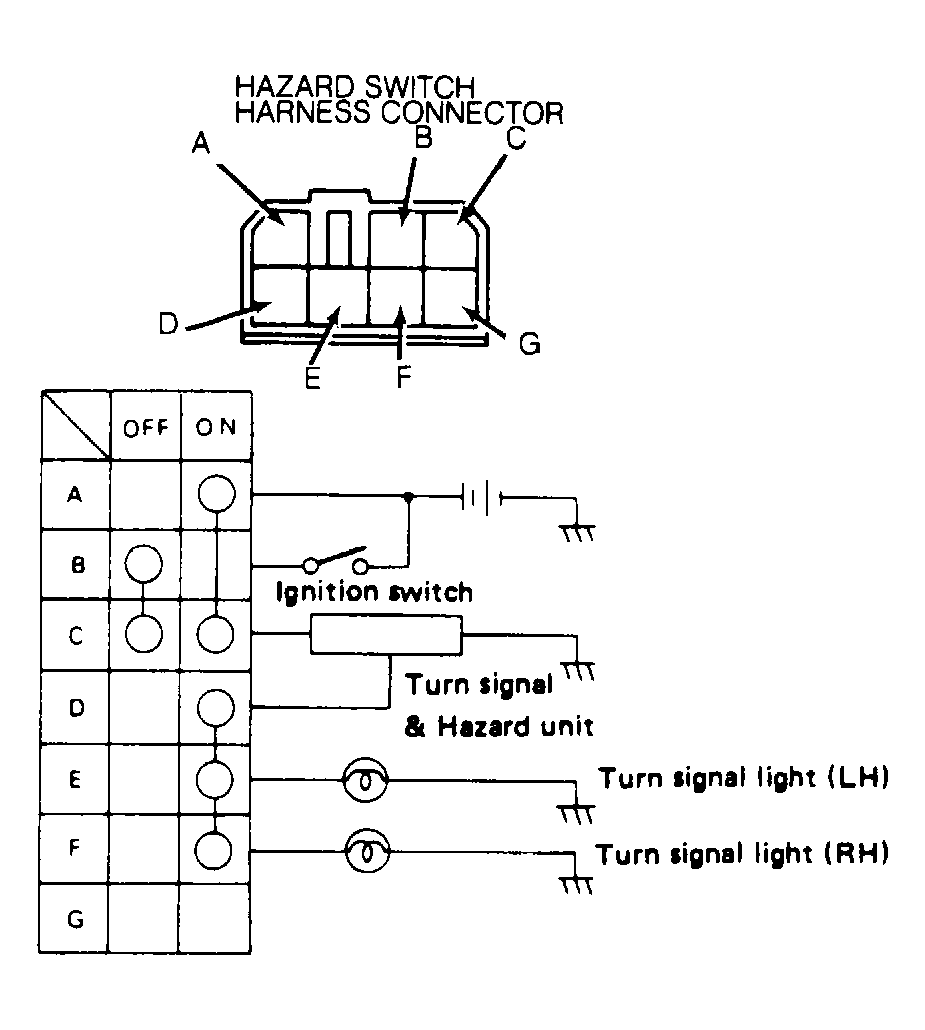

Fig 3: Testing Hazard Switch (Loyale)

Courtesy of SUBARU OF AMERICA, INC.
