Description & Operation

Standard instrument panel is equipped with a speedometer and fuel and temperature gauges. Some models have a tachometer, oil pressure gauge and voltmeter. SeeFig 1 , Fig 2 or Fig 3 . All models include a telltale graphic monitor with warning lights. Gauges use variable resistance sending units.

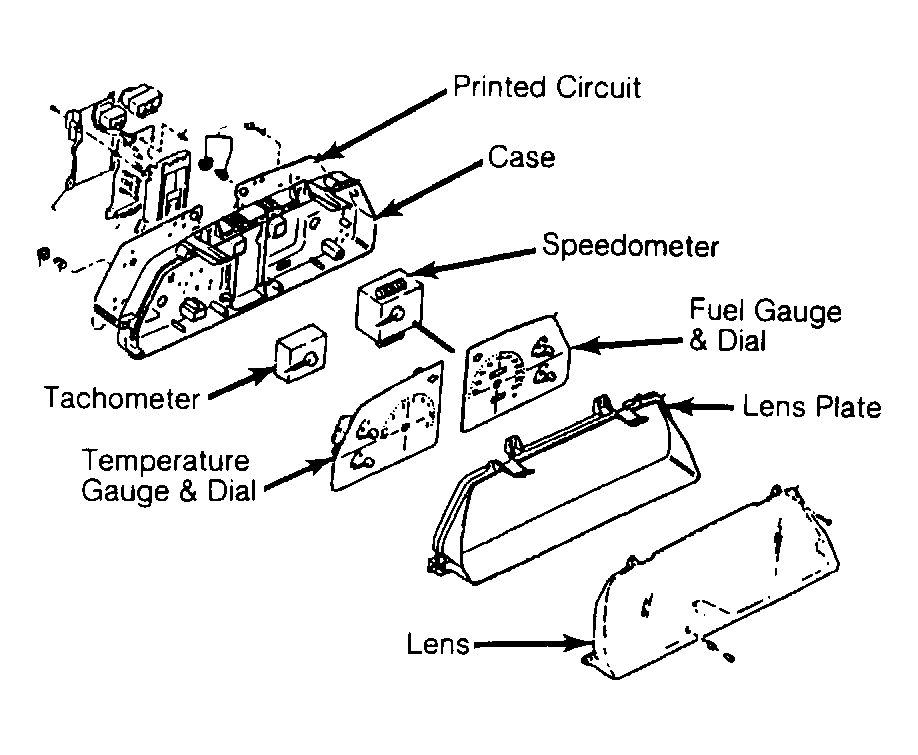

Fig 1: Identifying Instrument Panel Components (Loyale)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Instrument Panel Components (Justy)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Instrument Panel Components (XT & XT6)

Courtesy of SUBARU OF AMERICA, INC.
