Removal (Justy)

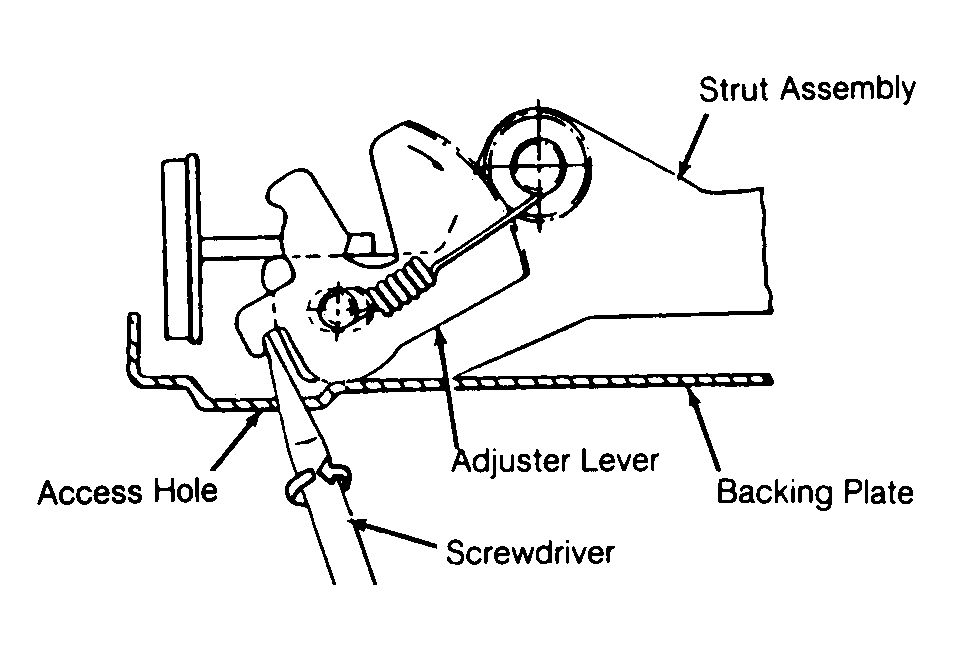

  1. Remove brake drum. See REAR BRAKE DRUM under REMOVAL & INSTALLATION. To aid in removing brake drum, insert a screwdriver through backplate access hole to push strut assembly adjuster lever to initial position. See Figure.
  2. Remove hold-down spring clips and strut assembly springs to release shoe tension. Remove lower return spring from shoes. Remove parking brake arm from shoe. Remove brake shoes.
