XT Coupe & XT6 Flow Charts

Fig 1: Speedometer Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.

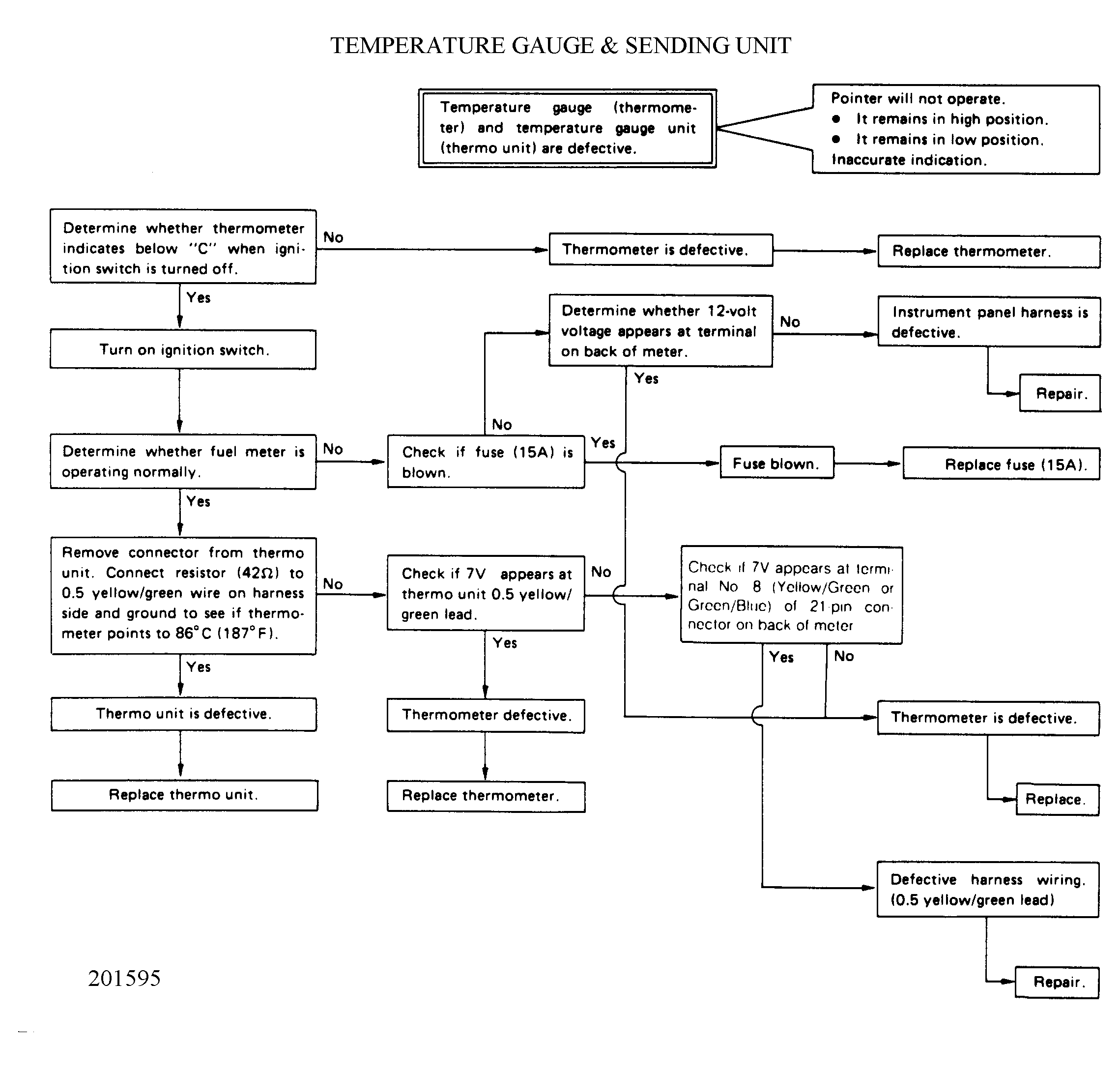

Fig 2: Temp Gauge & Sending Unit Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Fuel Gauge & Sending Unit Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.

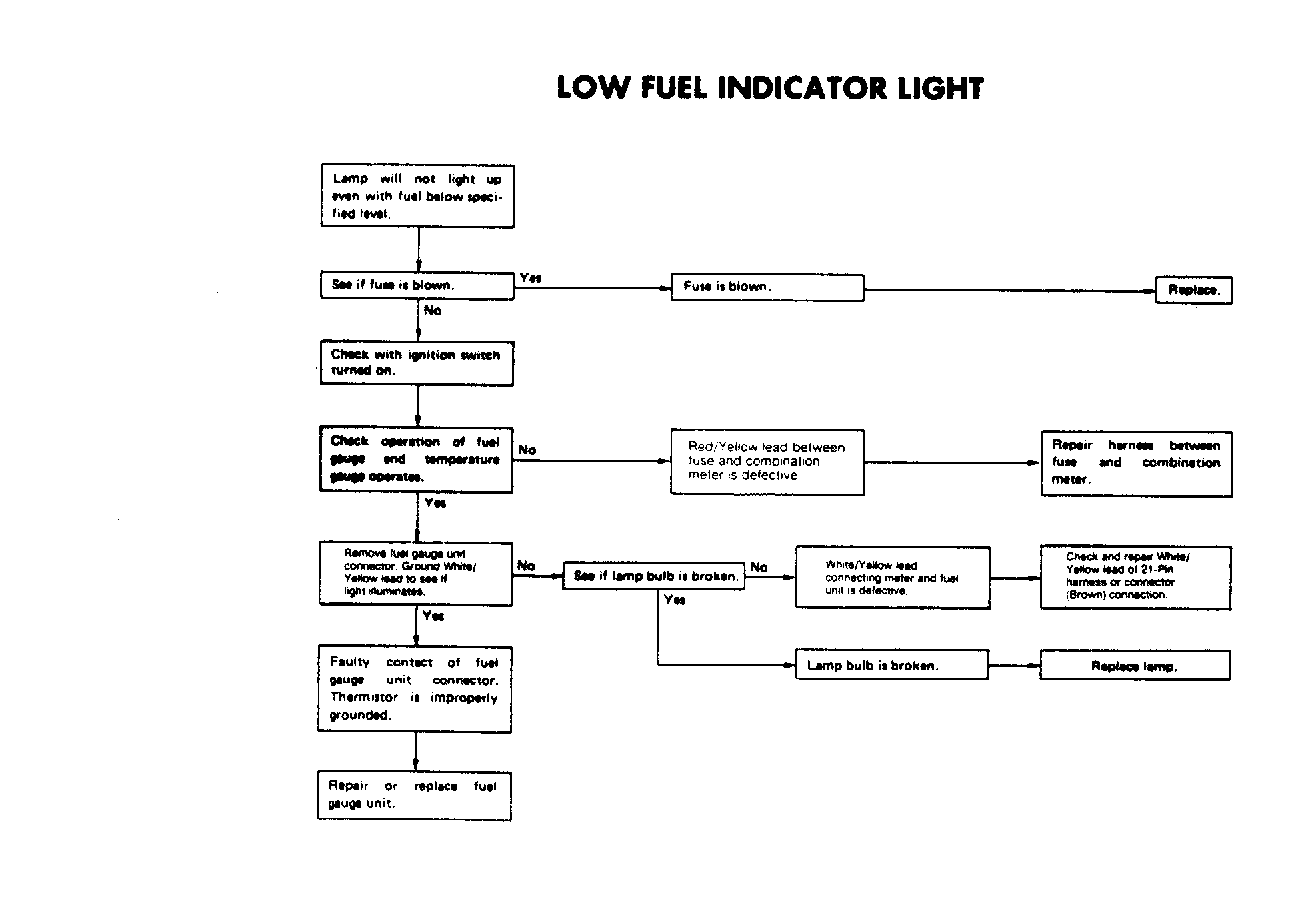

Fig 4: Low Fuel Indicator Light Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Oil Pressure Gauge Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Voltmeter Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Tachometer Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.
