3-Door Coupe, Sedan & Station Wagon Flow Charts

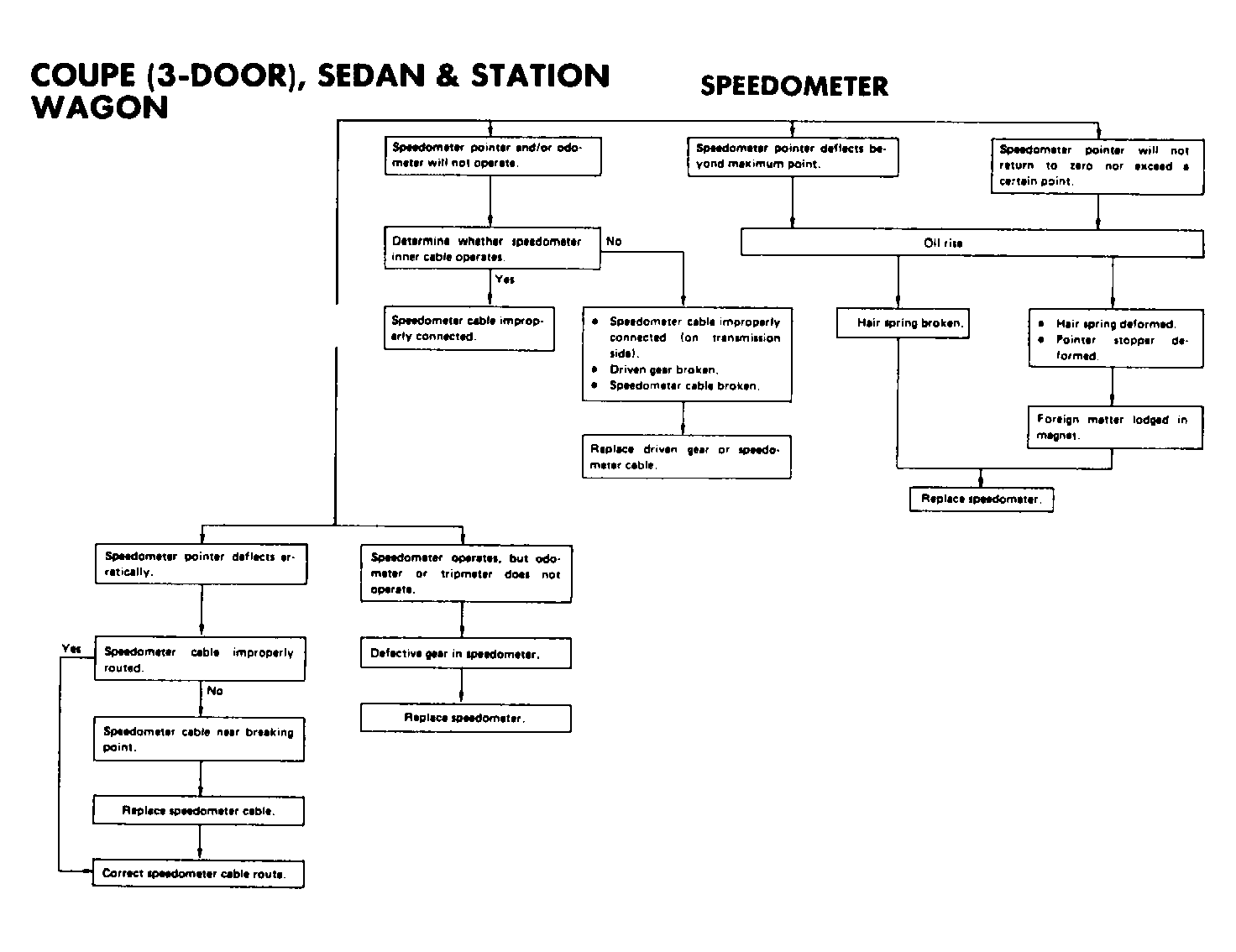

Fig 1: Speedometer Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Temp Gauge & Sending Unit Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Fuel Gauge & Sending Unit Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Low Fuel Indicator Light Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Oil Pressure Gauge Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Voltmeter Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Tachometer Trouble Shooting Chart

Courtesy of SUBARU OF AMERICA, INC.
