Wiring Diagrams

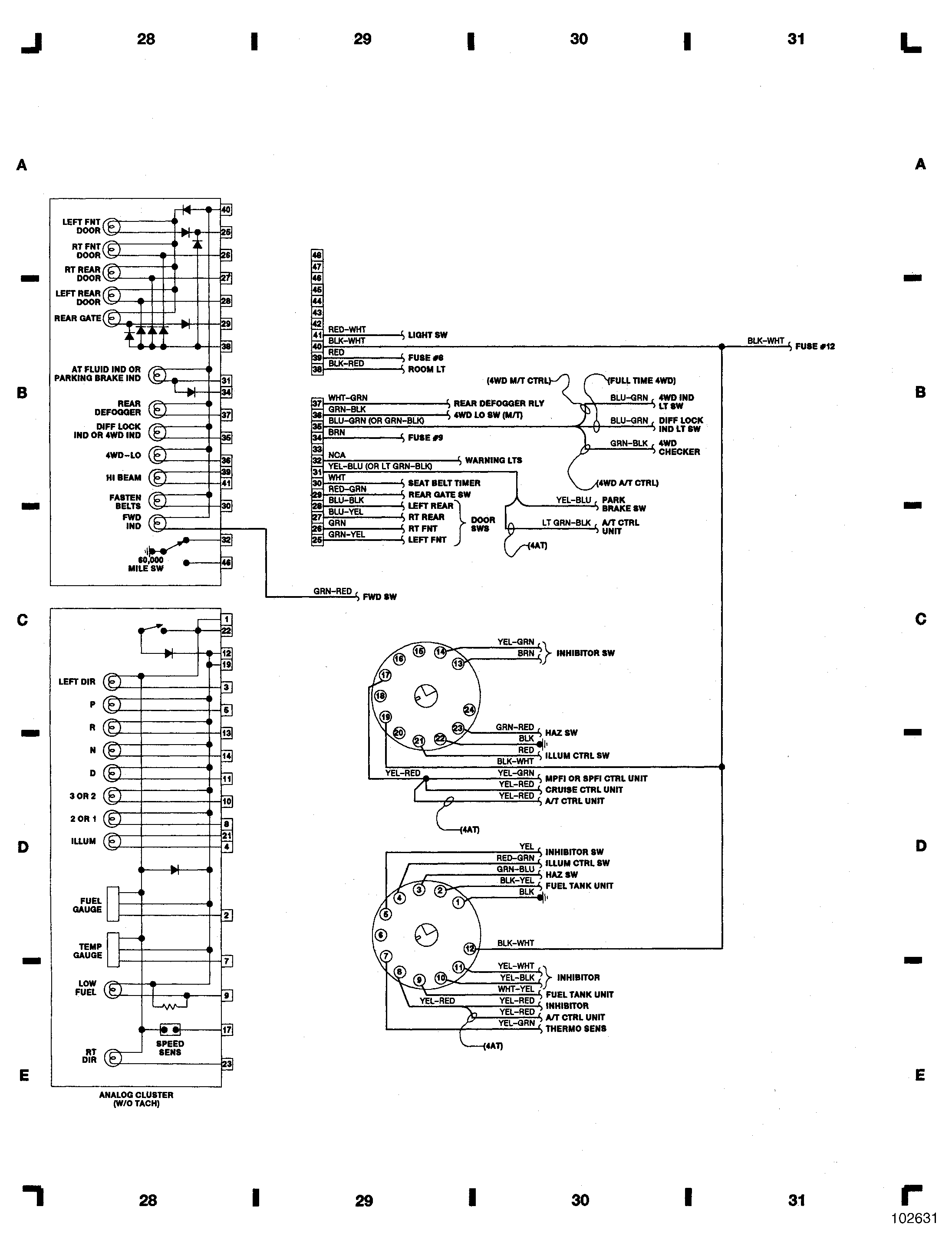

Fig 1: Instrument Cluster Wiring Diagram - Models w/o Tachometer

G102631

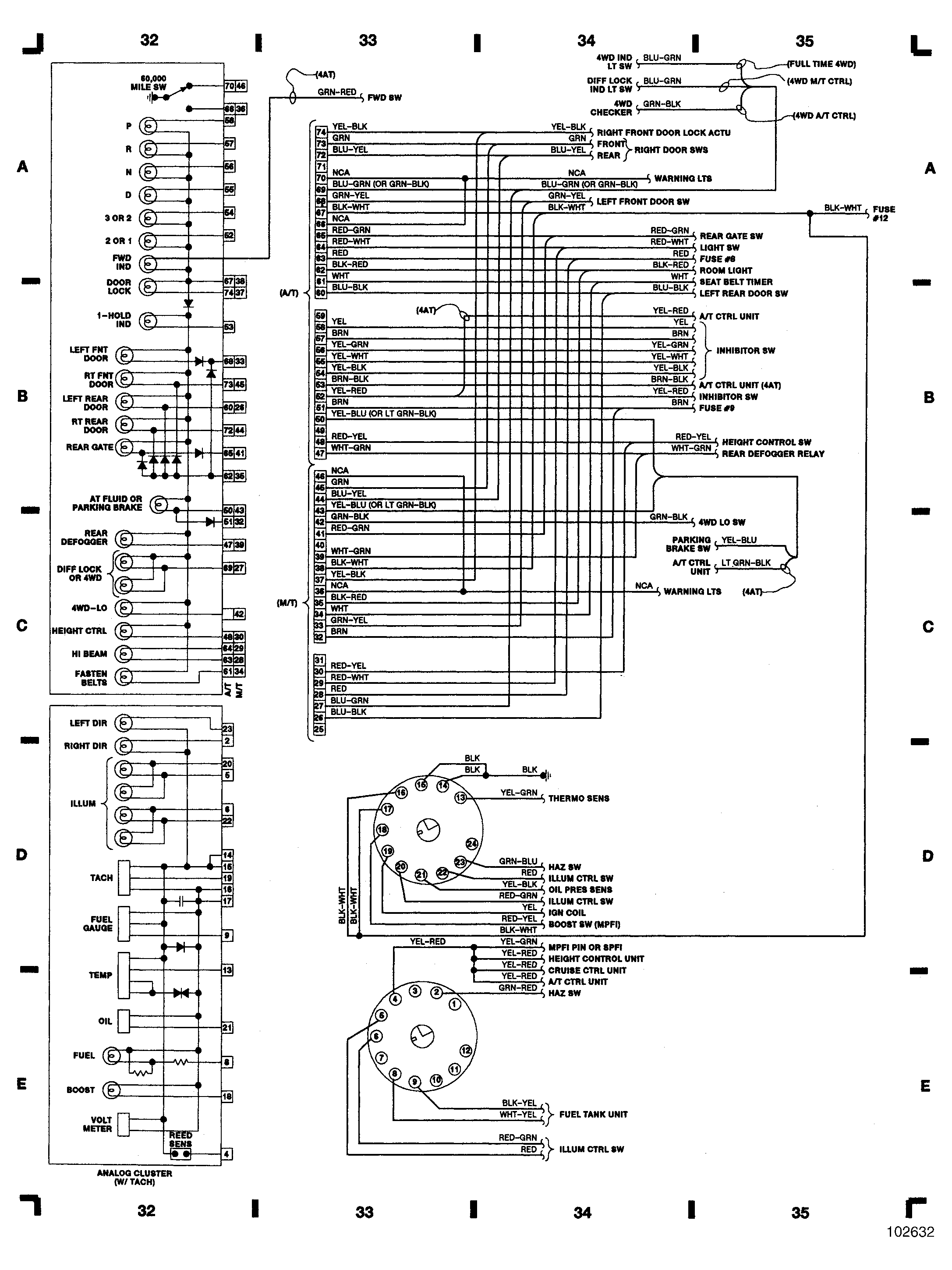

Fig 2: Instrument Cluster Wiring Diagram - Models w Tachometer

G102632
