Std/DL/GL Trouble Shooting Charts

Fig 1: Flow Chart - Speedometer & Temperature Gauge (STD/DL/GL)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Flow Chart - Fuel Gauge/Sending Unit (STD/DL/GL)

Courtesy of SUBARU OF AMERICA, INC.

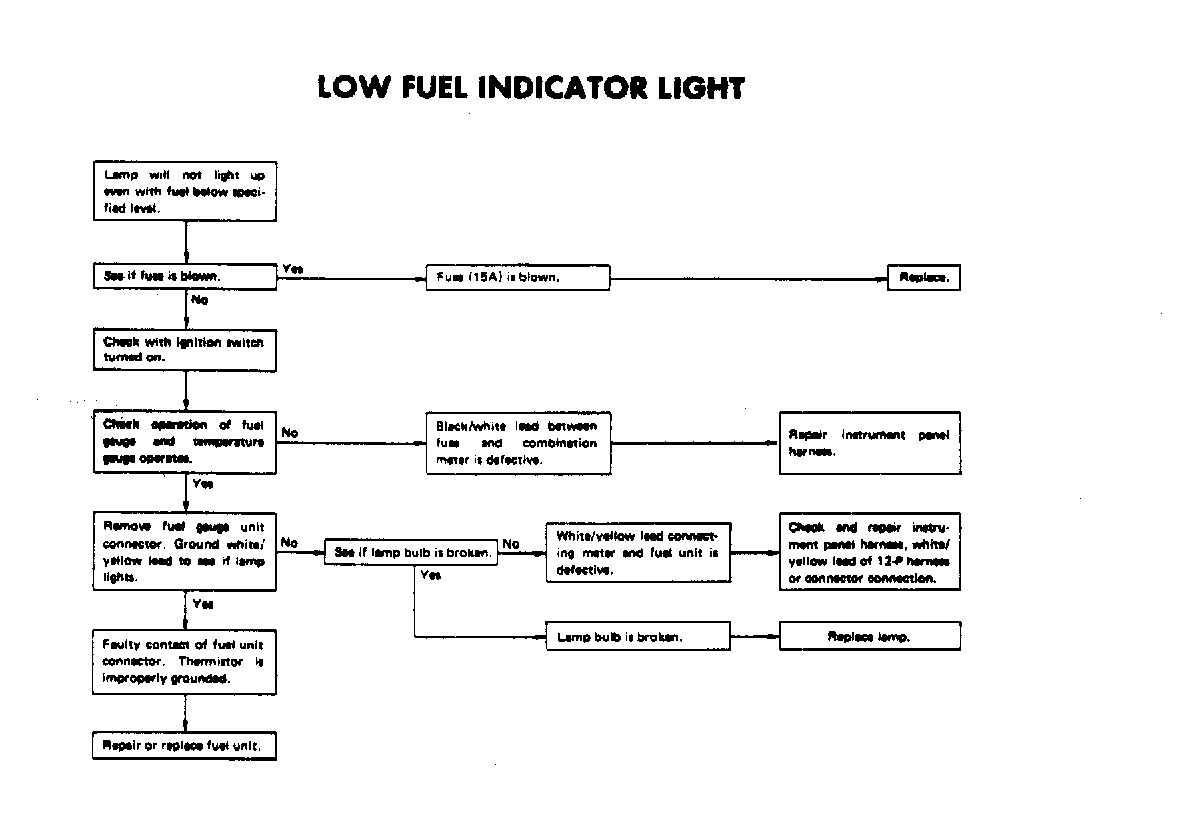

Fig 3: Flow Chart - Low Fuel Indicator Light (STD/DL/GL)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Flow Chart - Oil Pressure Gauge (STD/DL/GL)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Flow Chart - Voltmeter (STD/DL/GL)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Flow Chart - Tachometer (STD/DL/GL)

Courtesy of SUBARU OF AMERICA, INC.
