Fuel Tank Sending Unit Test

Remove and unplug fuel tank sending unit. With float at empty position, use an ohmmeter and measure sender resistance. Resistance should indicate 7 ohms. With float at 1/2 full position, sending unit resistance should indicate 33 ohms. With float at full position, sending unit resistance should indicate 95 ohms.

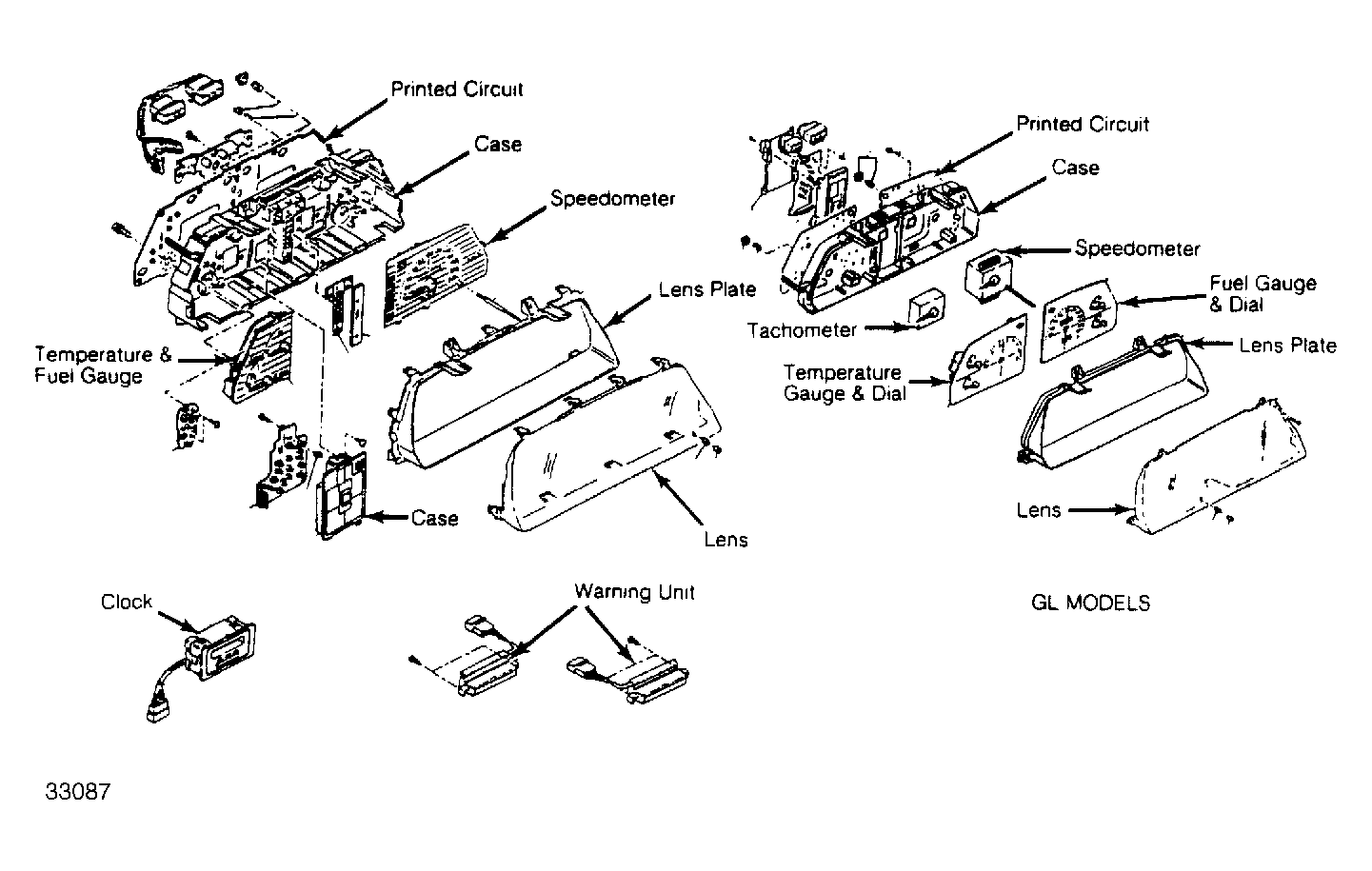

Fig 1: View of STD/DL/GL Instrument Cluster Assembly

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: View of XT Coupe & XT-6 Instrument Cluster Assembly

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: View of Justy Instrument Cluster Assembly

Courtesy of SUBARU OF AMERICA, INC.
