Subaru
>>
1987
>>
XT GL, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panel - Electronic
>>
Troubleshooting
Instrument Panel - Electronic: Troubleshooting
NOTE:
Refer to TROUBLESHOOTING FLOW CHARTS for troubleshooting diagnosis. See
Fig 1
through
Fig 6
.

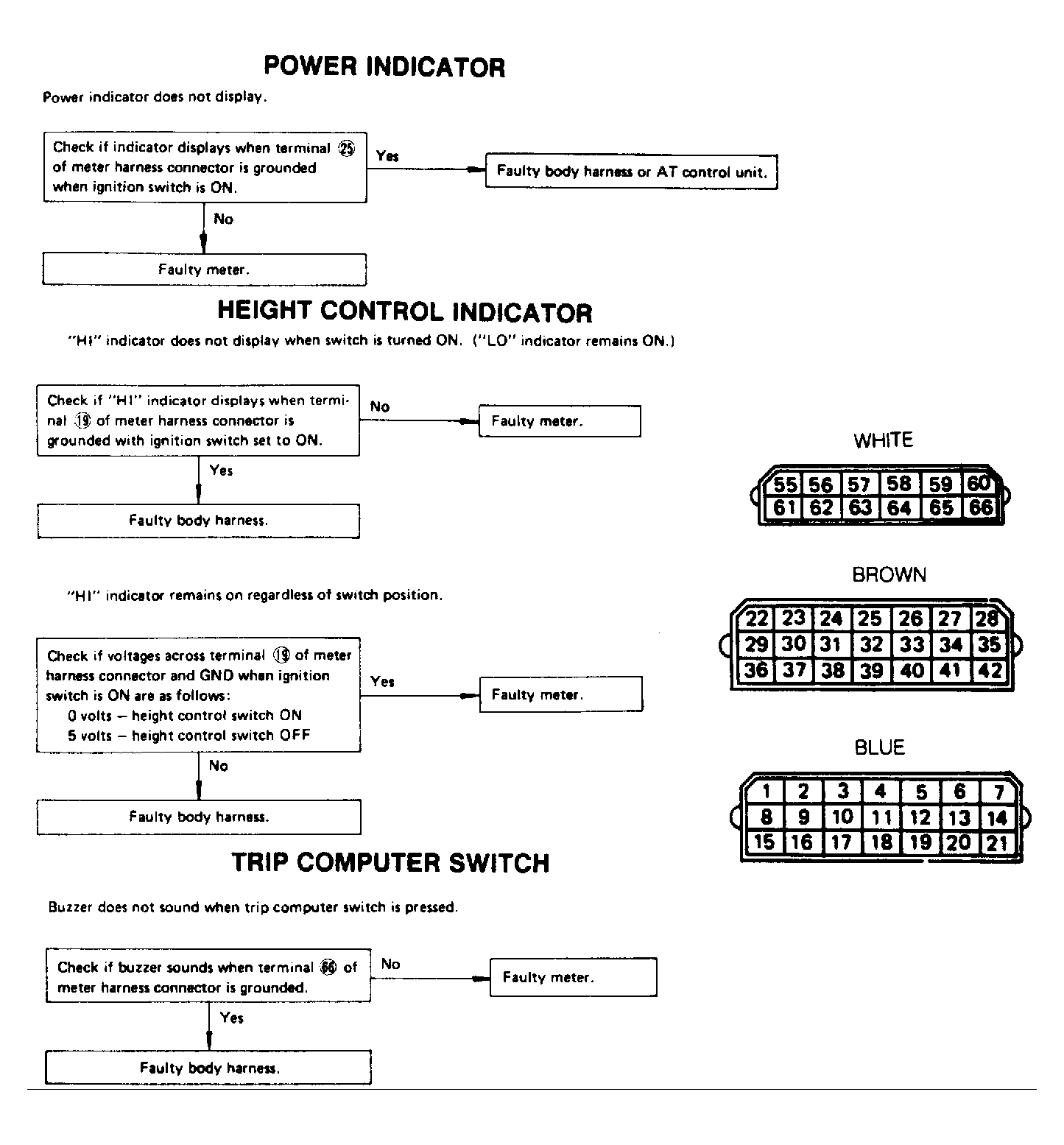

Fig 1: Instrument Cluster Trouble Shooting Charts (XT COUPE)

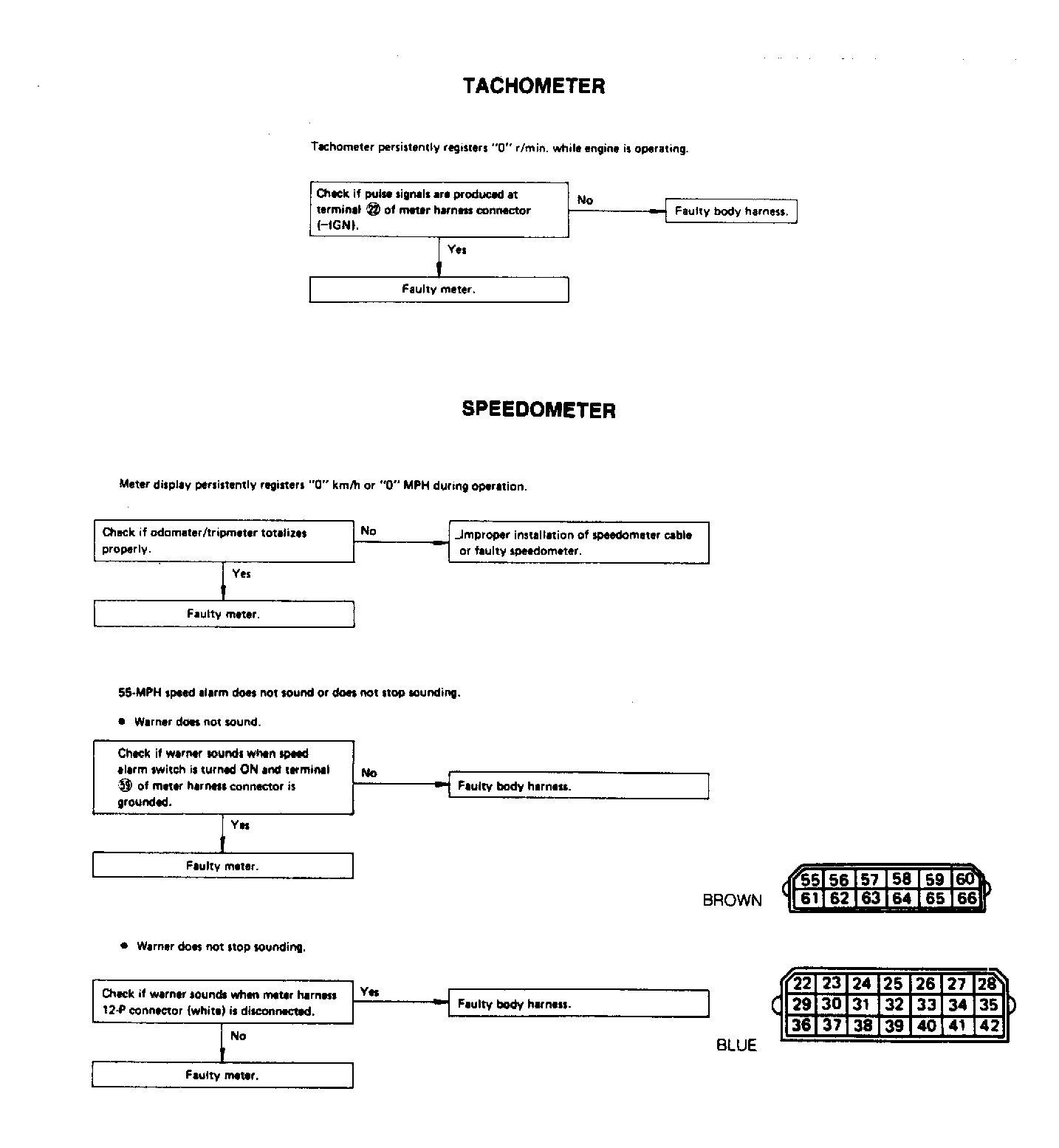

Fig 2: Instrument Cluster Trouble Shooting Charts (XT COUPE)

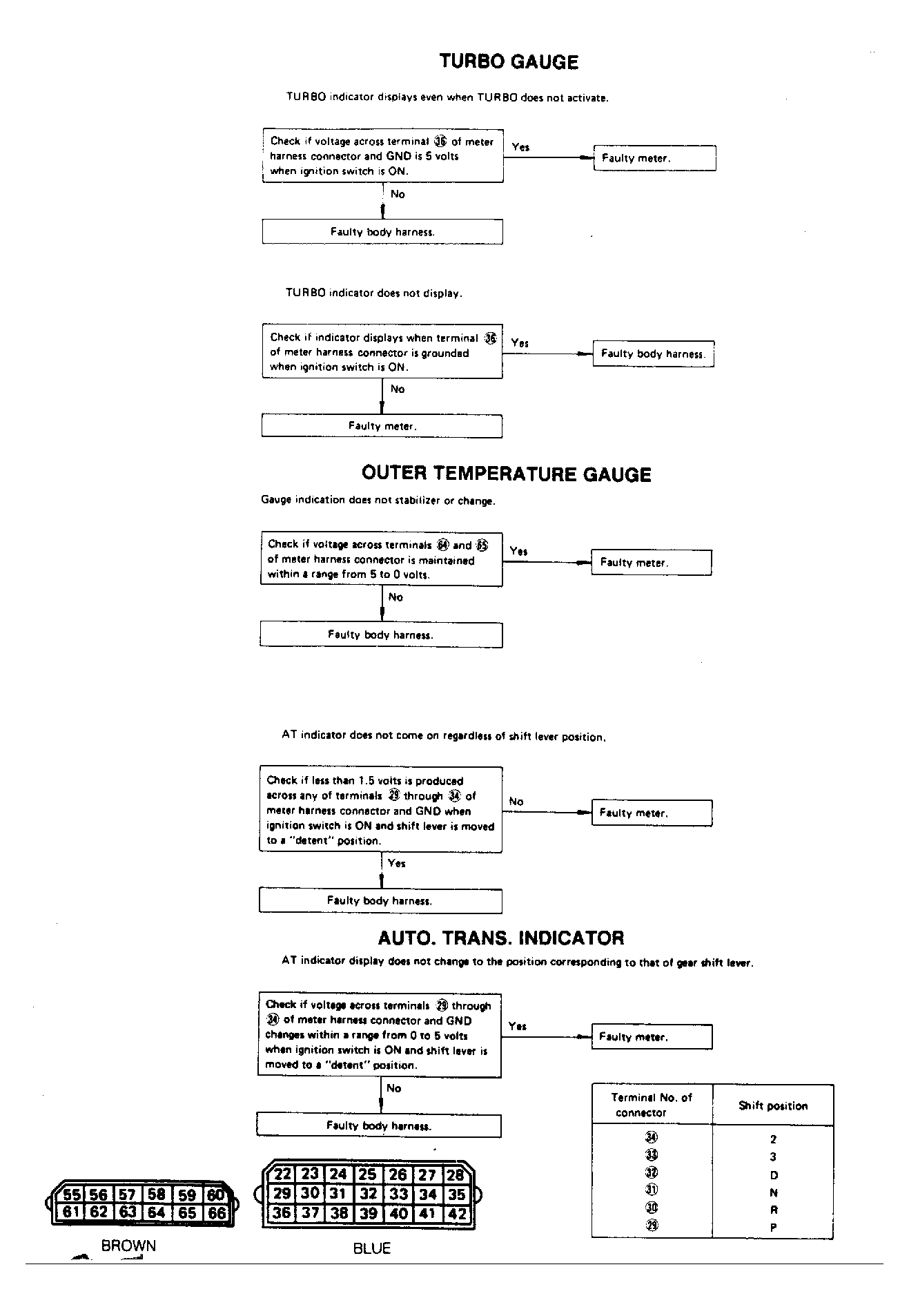

Fig 3: Instrument Cluster Trouble Shooting Charts (XT COUPE)

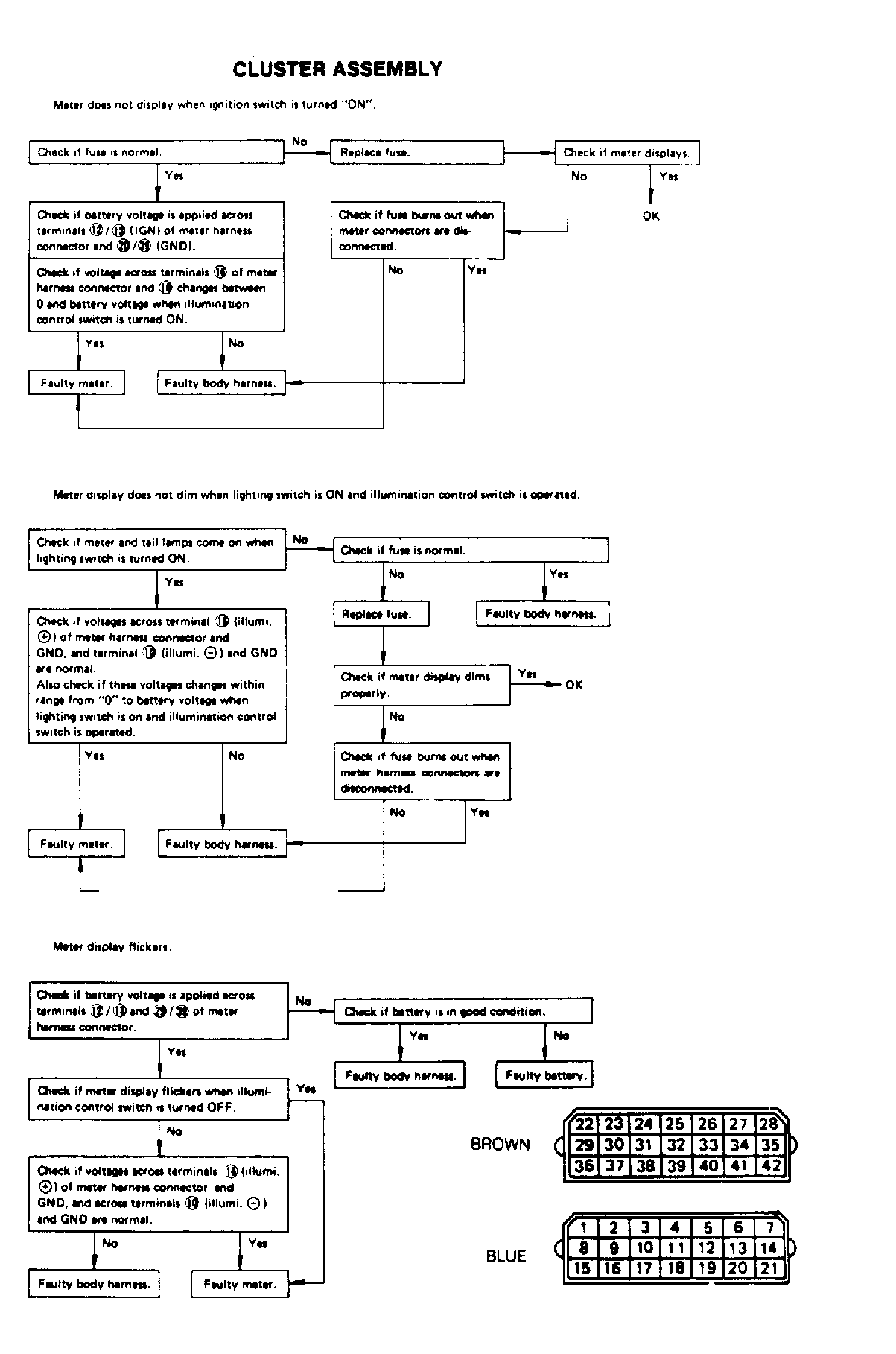

Fig 4: Instrument Cluster Trouble Shooting Charts (XT COUPE)

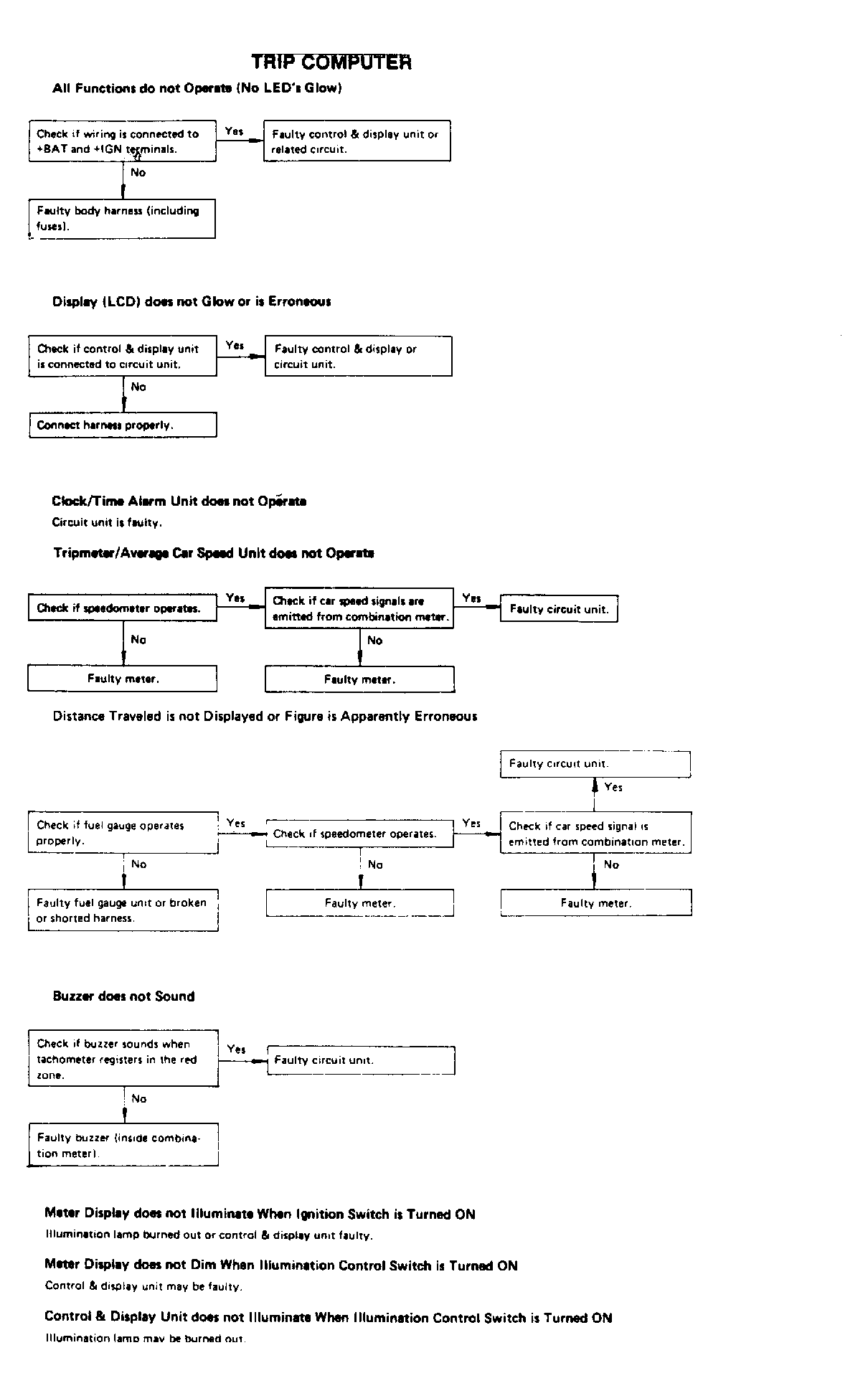

Fig 5: Instrument Cluster Trouble Shooting Charts (XT COUPE)

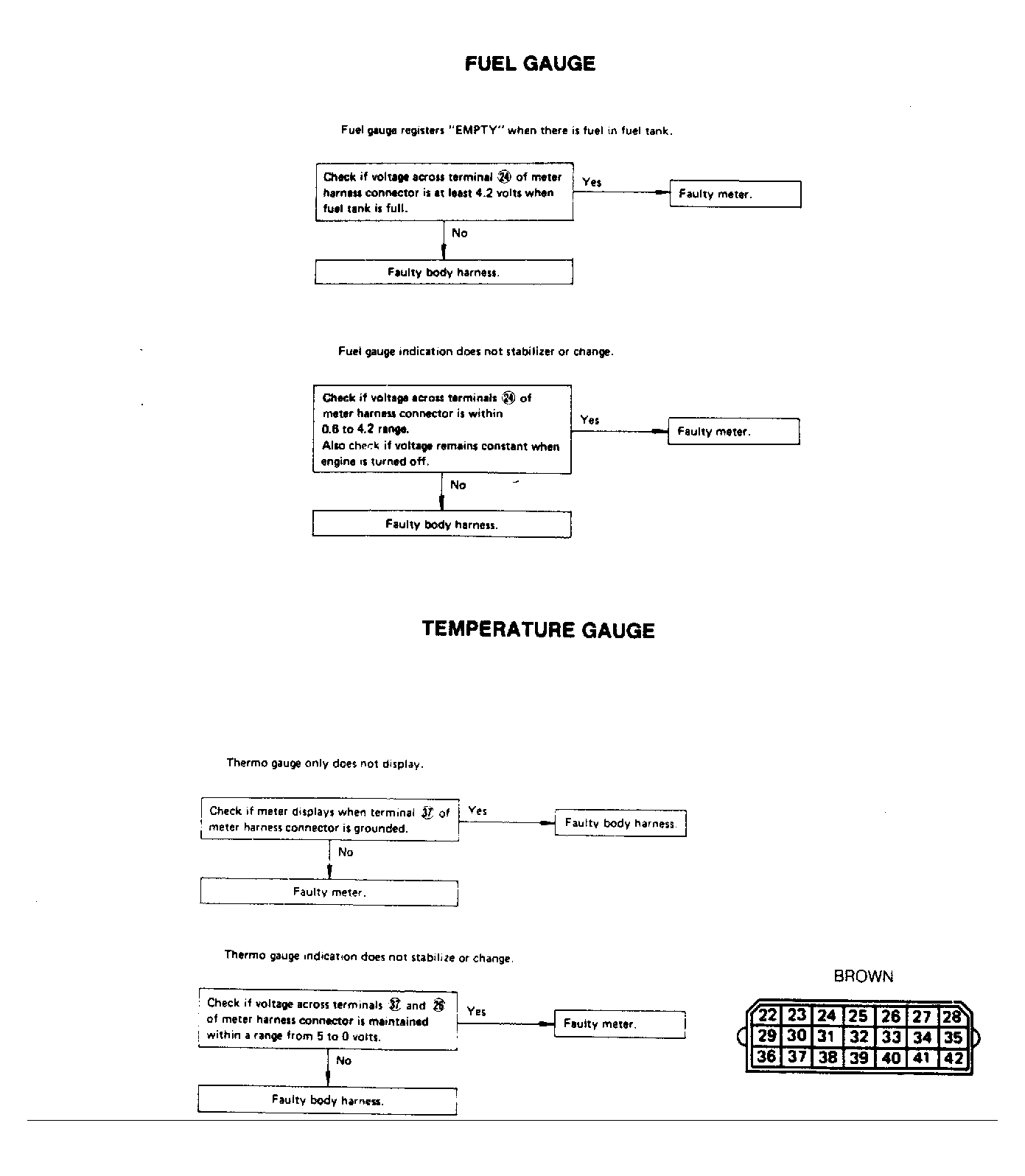

Fig 6: Instrument Cluster Trouble Shooting Charts (XT COUPE)
