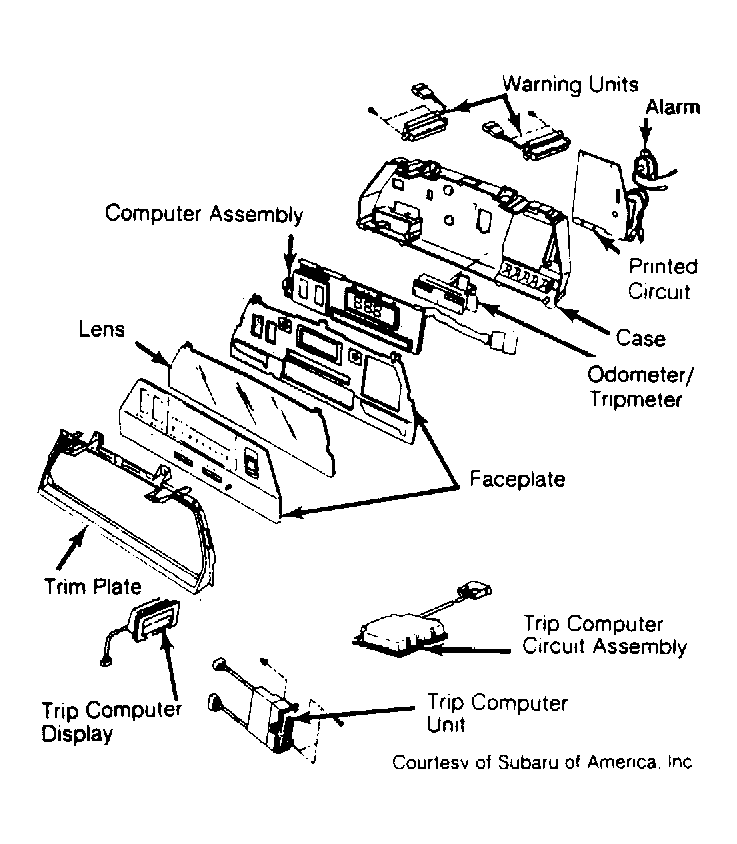

Instrument Panel - Electronic: Operation: Tachometer
Signals from the negative side of ignition coil are counted by a counter circuit in the microcomputer. This number is memorized by the memory circuit. This data is transferred to the display circuit every .30-.33 seconds to display engine RPM on fluorescent display tubes.
