Wiring Diagrams

Fig 1: Height Control System Circuit Diagram

G51102

Courtesy of SUBARU OF AMERICA, INC.

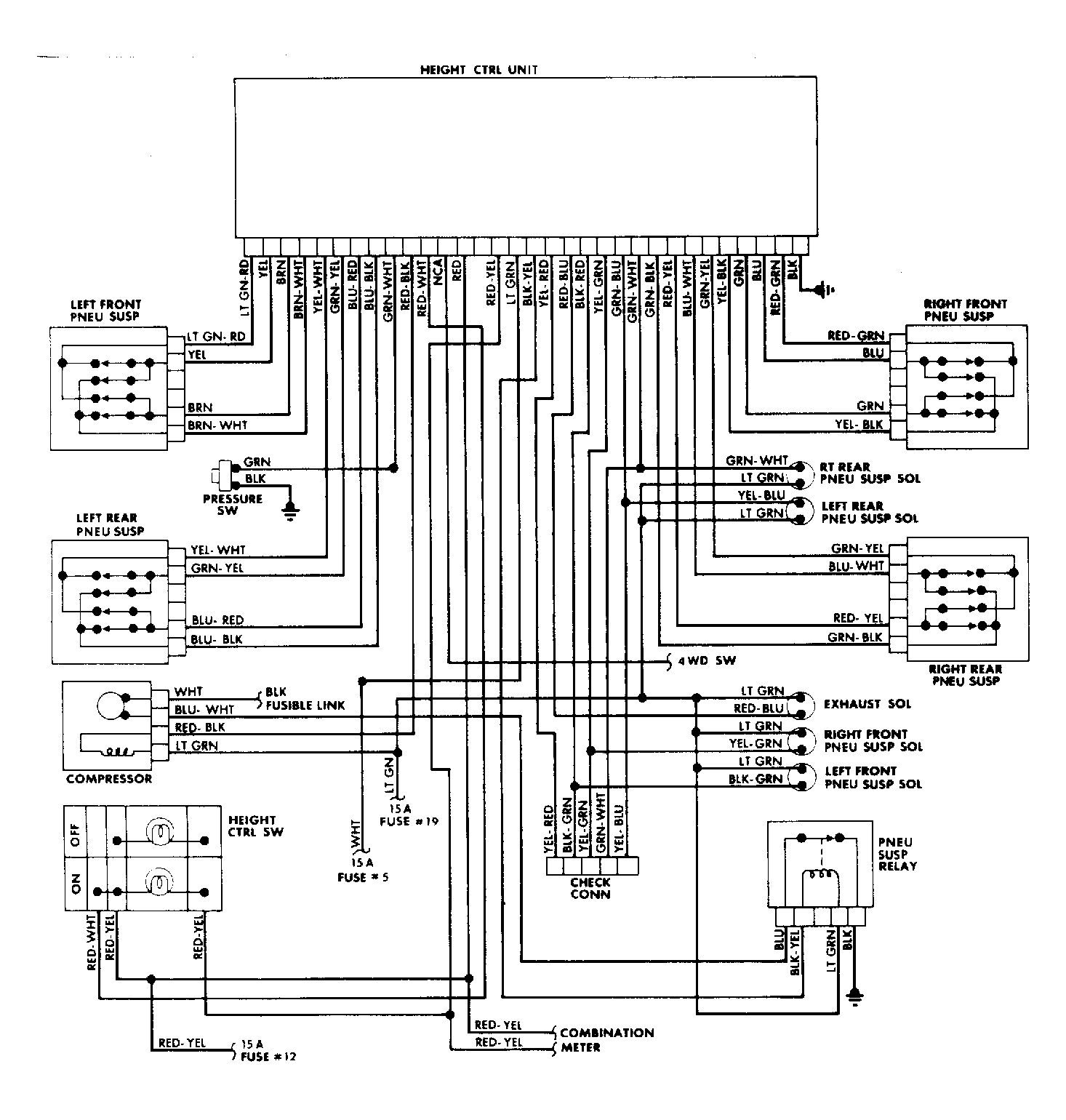

Fig 2: Height Control System Wiring Diagram

G51104
