Instrument Cluster & Switches

NOTE: Removal and installation procedures for XT models were not available from manufacturer.

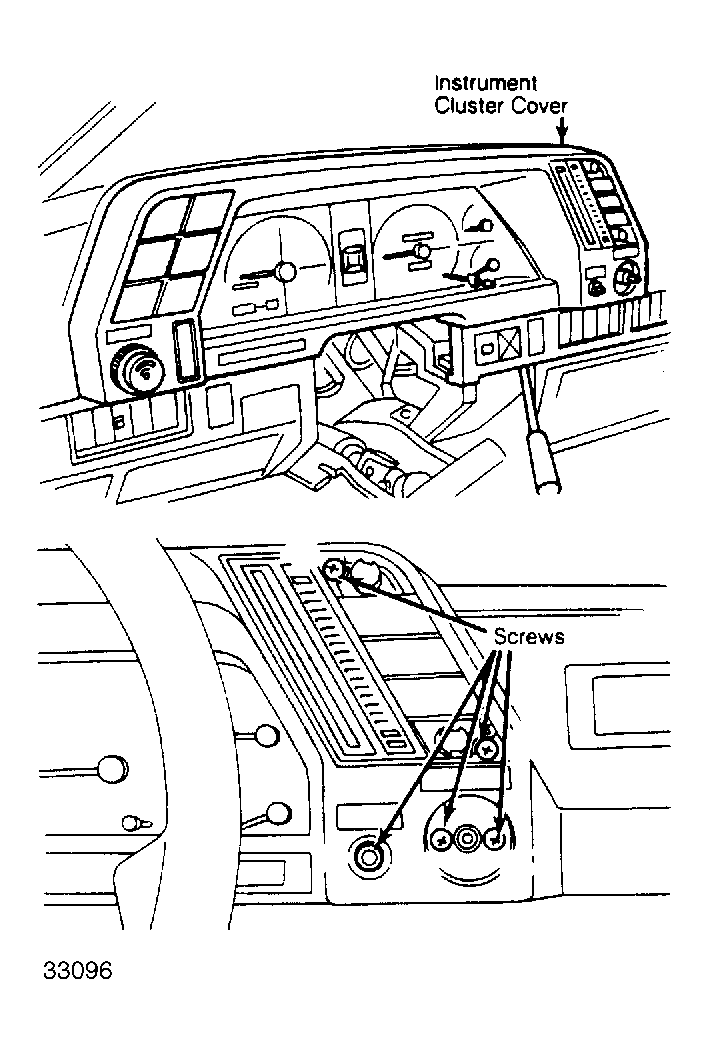

Fig 1: Screw Locations for Removing Instrument Cluster Cover
G33096Courtesy of SUBARU OF AMERICA, INC.
