Rear Brake Shoes: Installation

Apply brake grease to all brake shoe contact points. Ensure adjuster is not damaged or worn. Preset adjuster to 3.78" (96 mm). See Fig 1 . To install, reverse removal procedure. See Fig 2 .

Fig 1: Presetting Adjuster (Justy)

Courtesy of SUBARU OF AMERICA, INC.

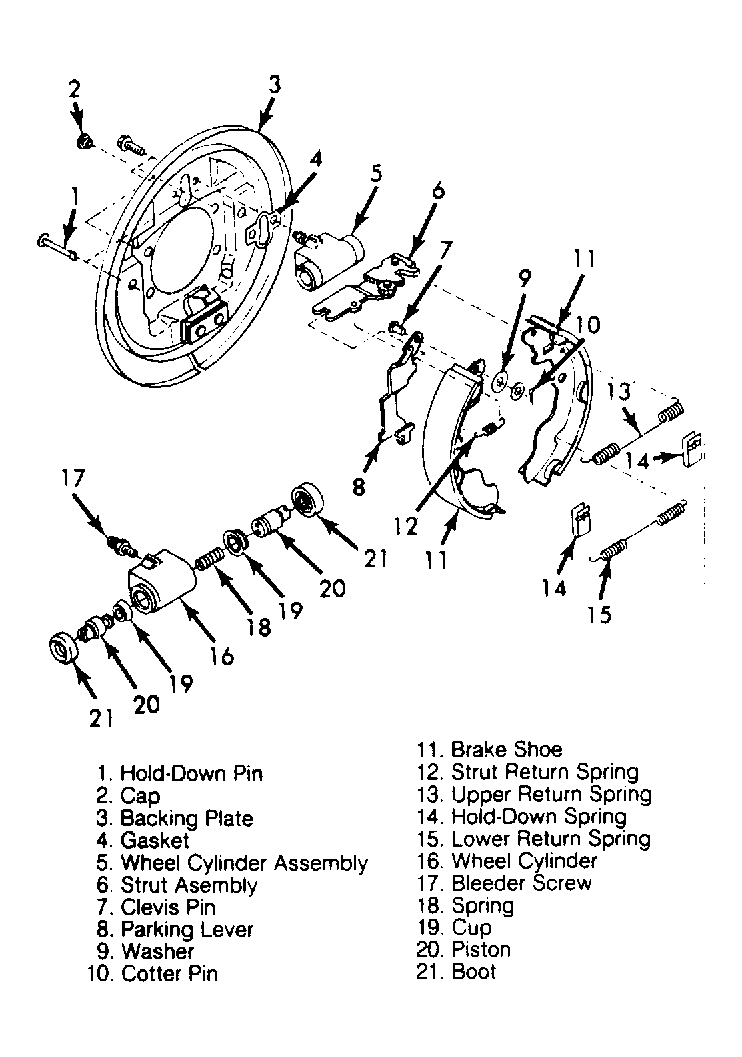

Fig 2: Exploded View of Rear Brake Assembly (Justy)

Courtesy of SUBARU OF AMERICA, INC.
