Instrument Panel - Electronic: Troubleshooting

NOTE: Refer to TROUBLESHOOTING FLOW CHARTS for troubleshooting diagnosis. See Fig 2 through Fig 10 .

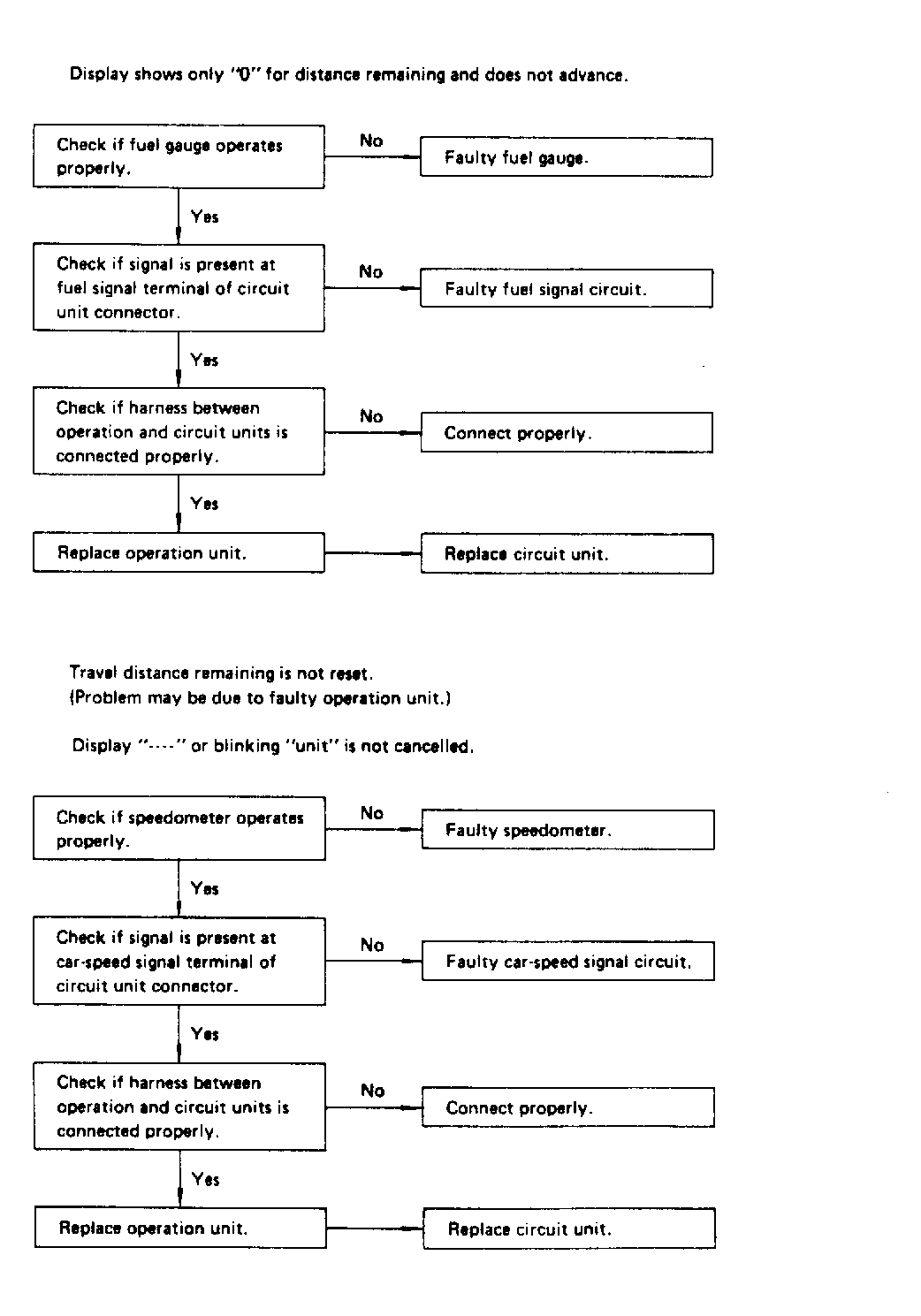

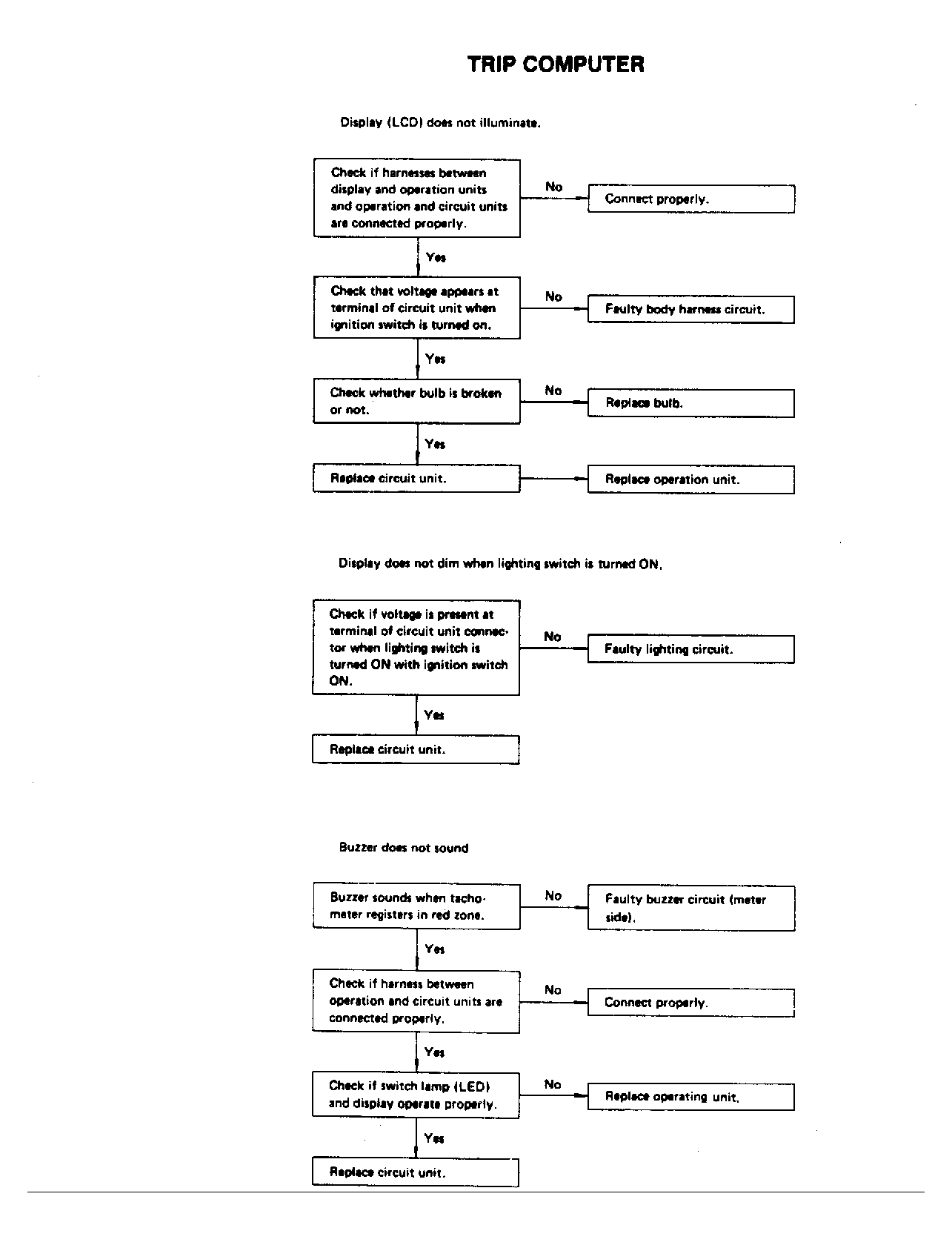

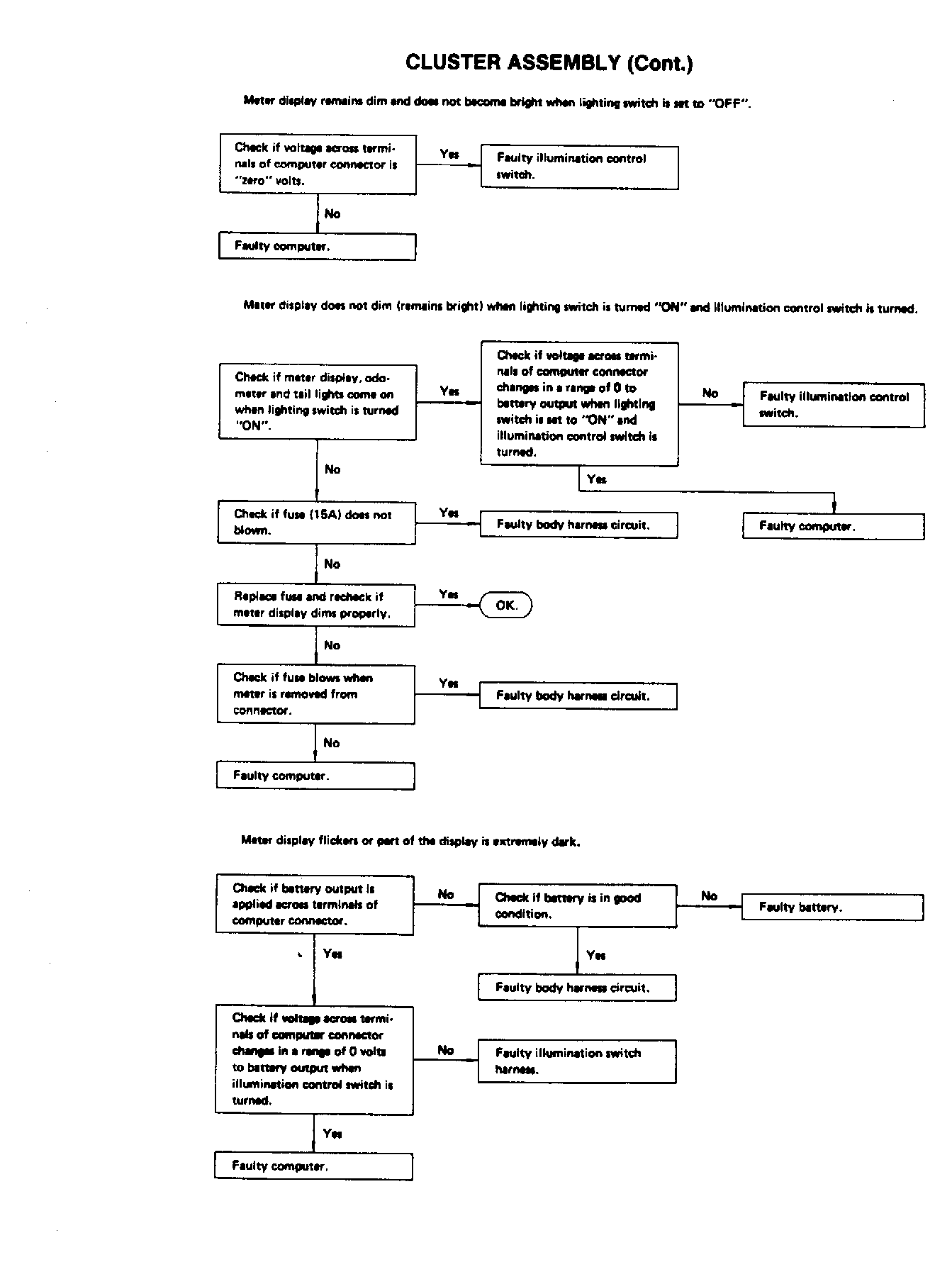

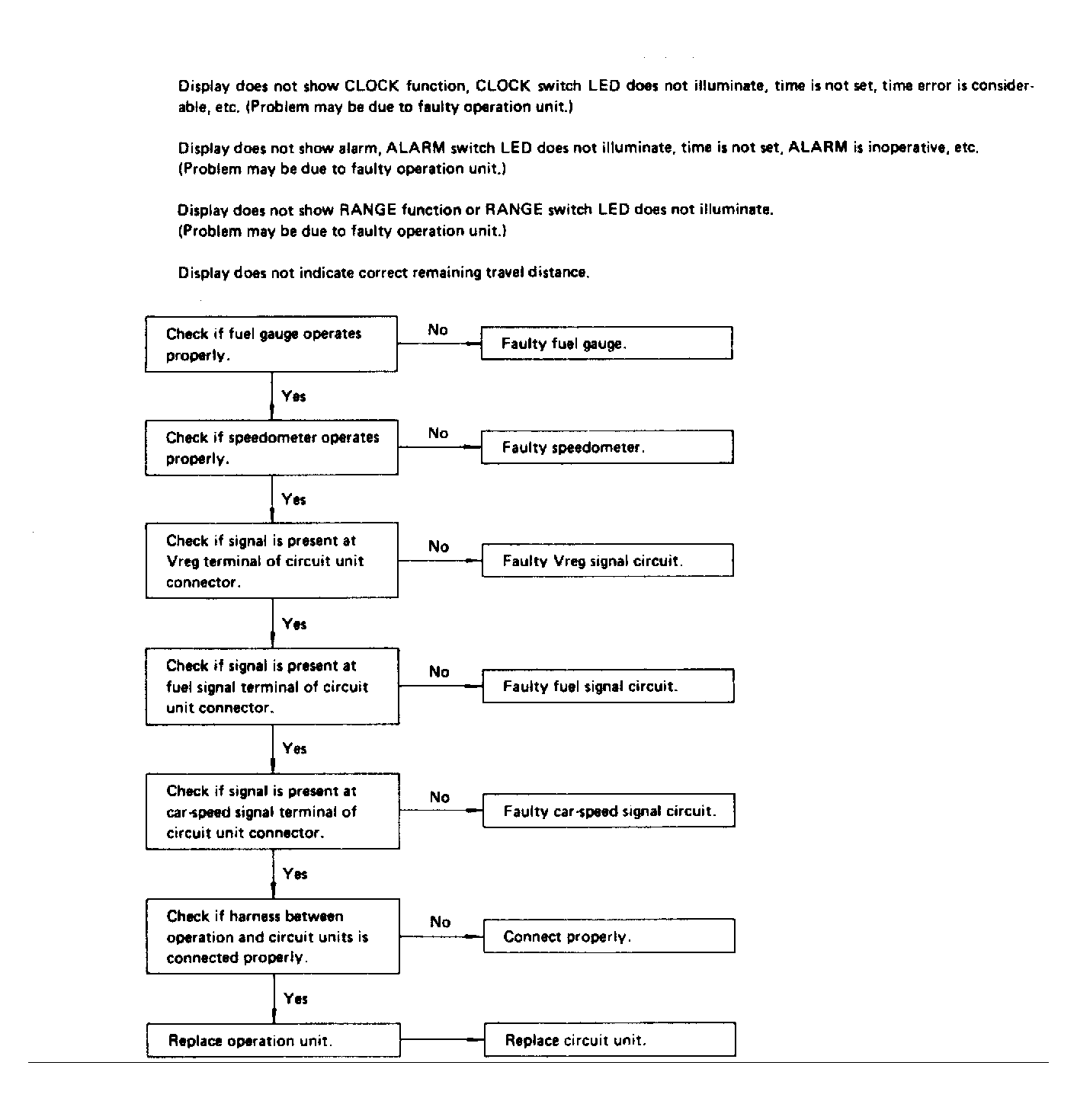

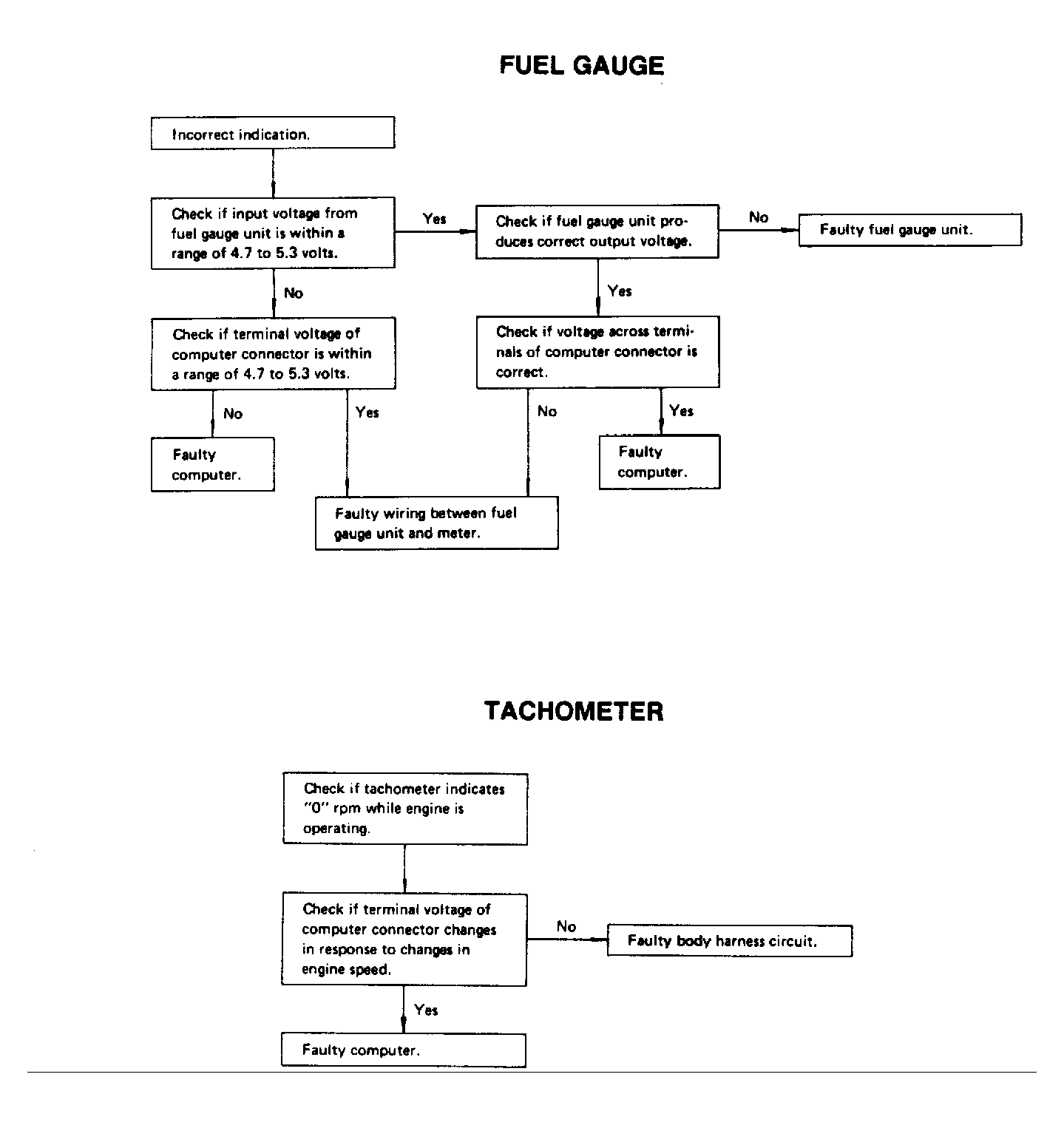

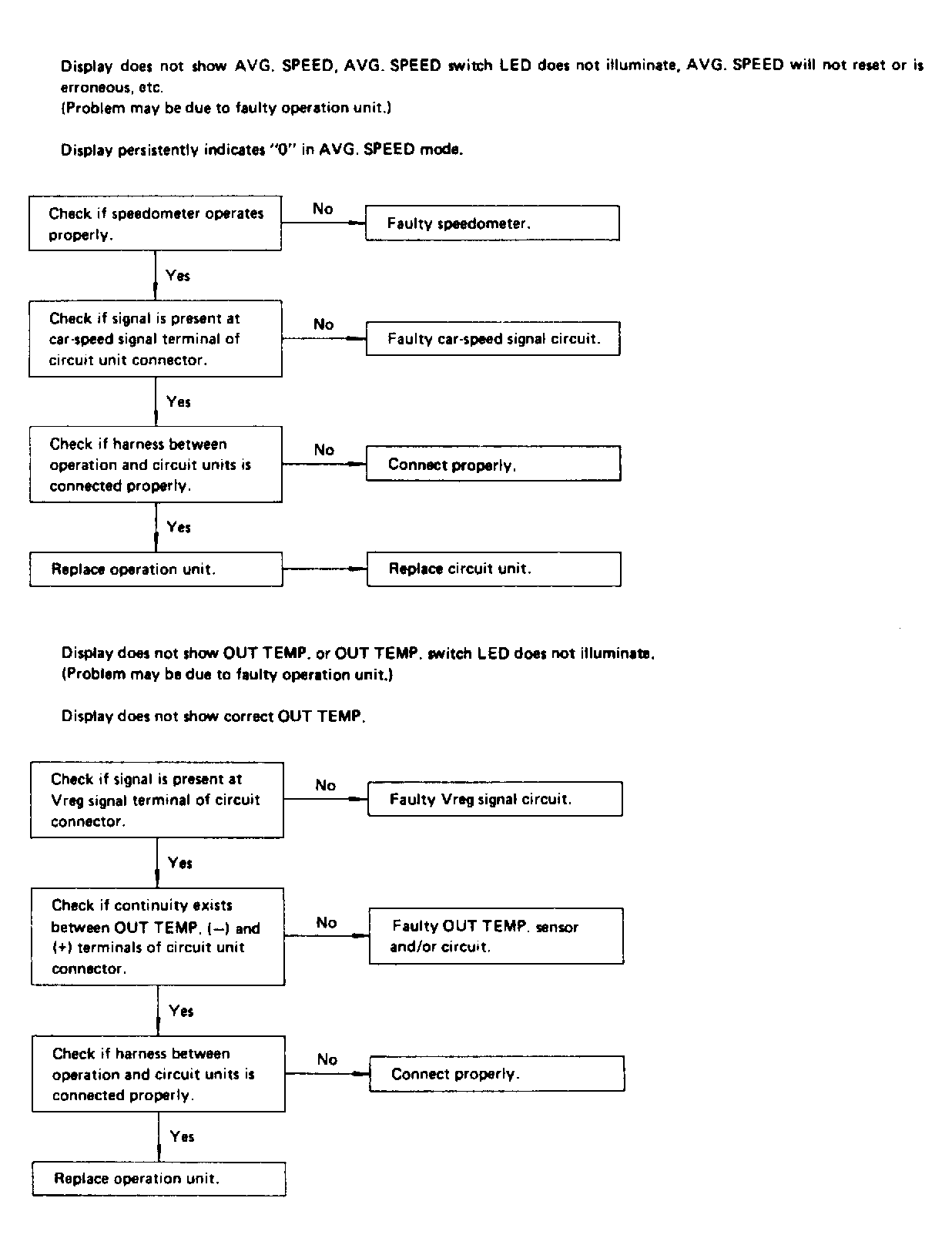

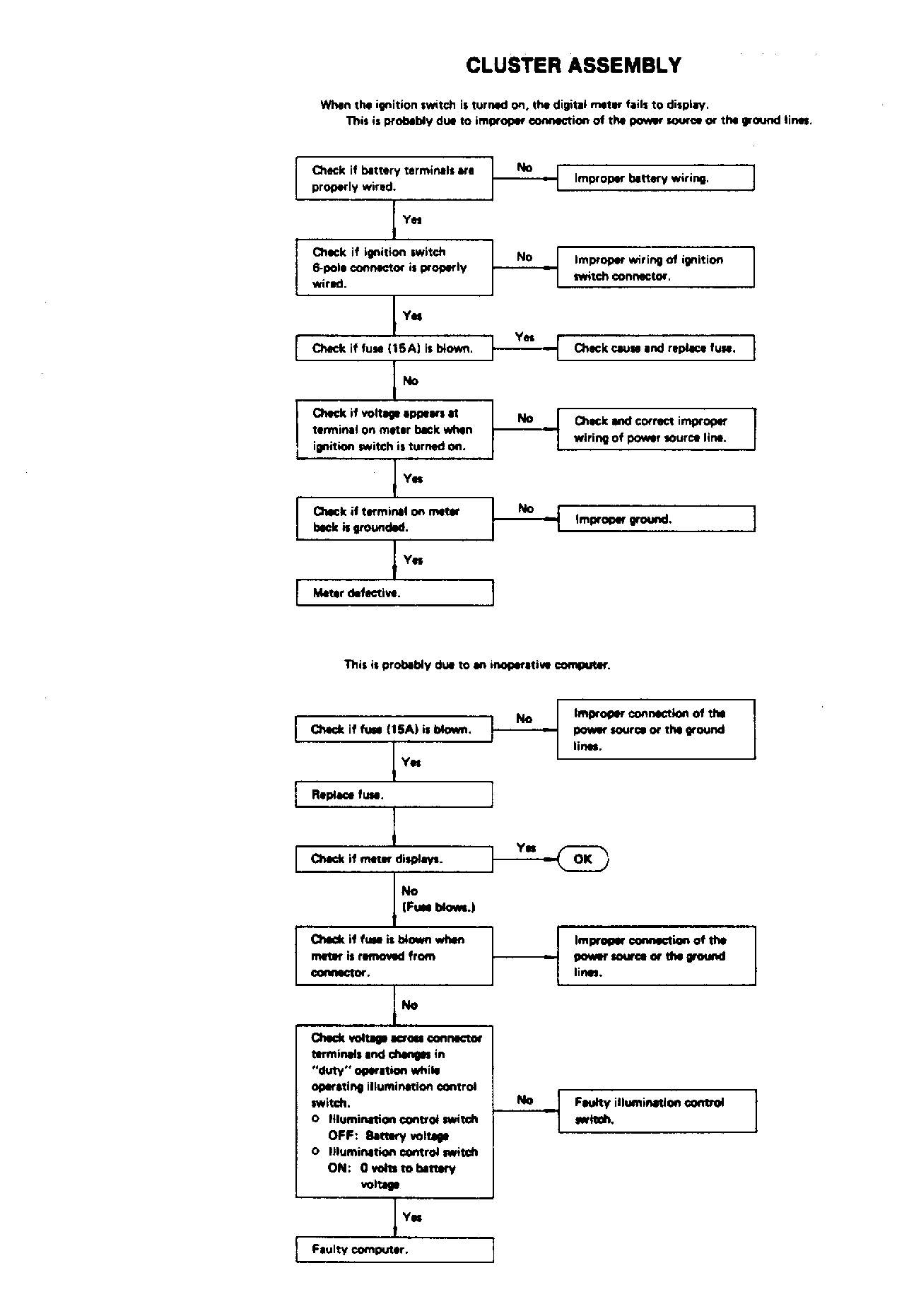

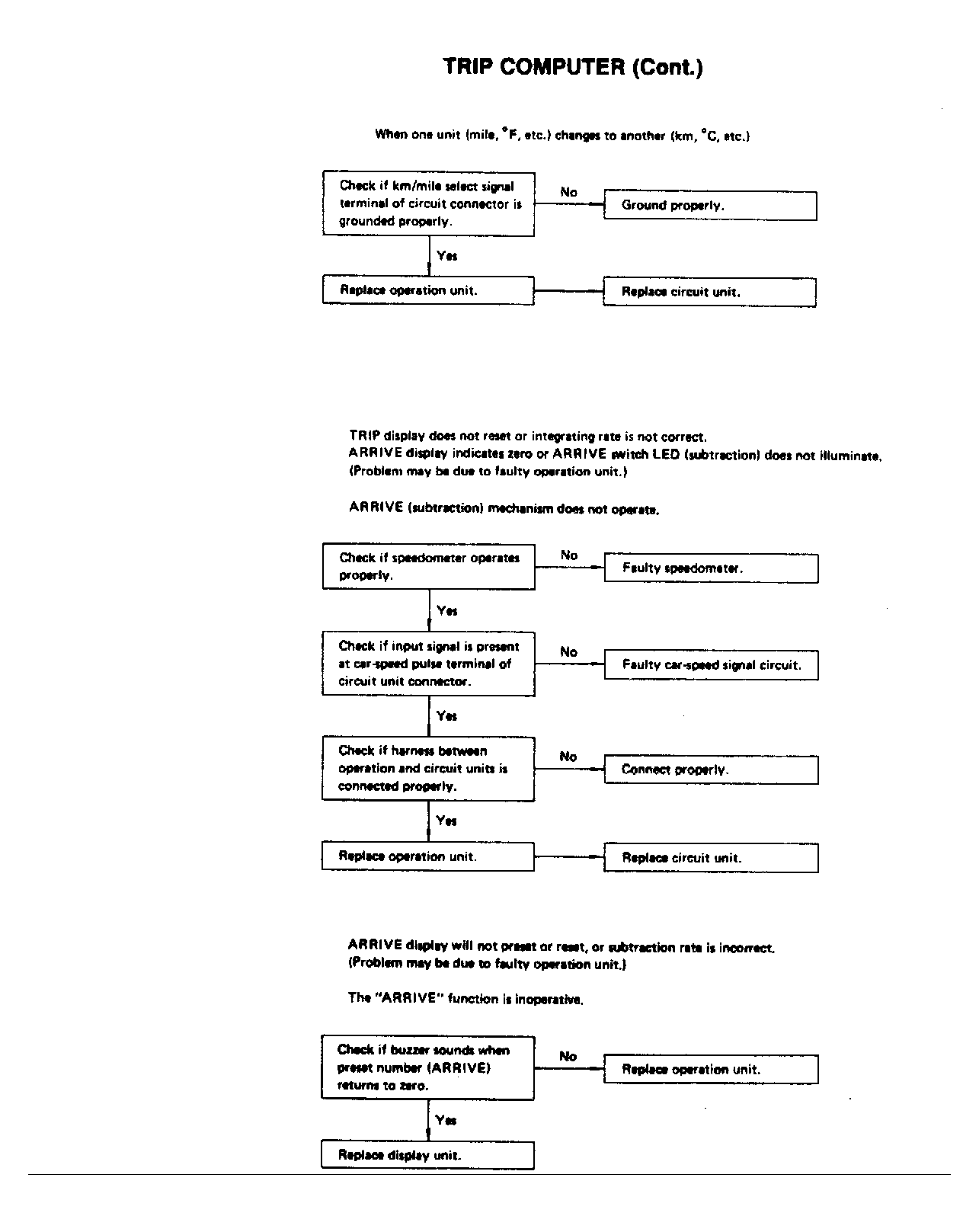

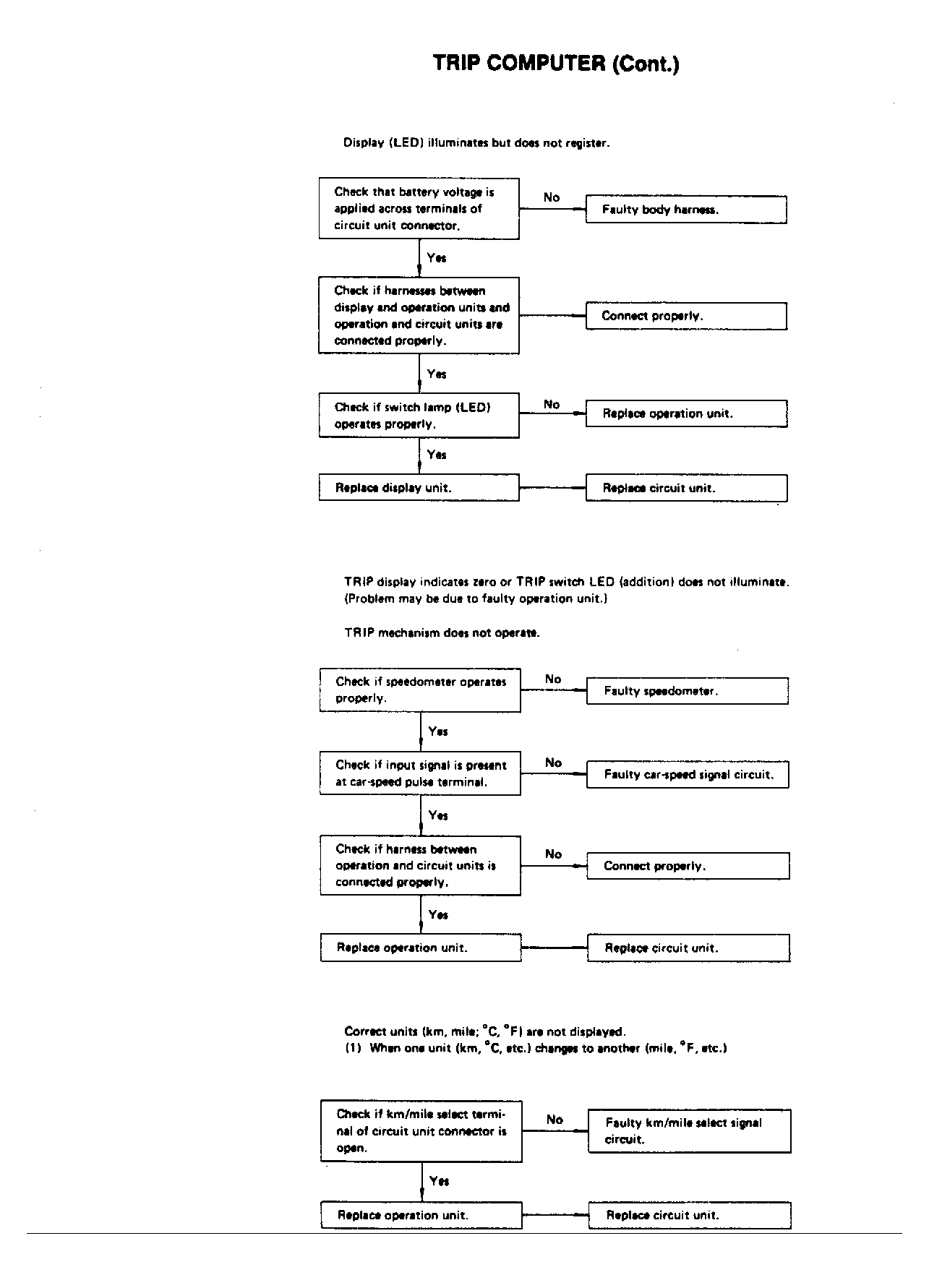

Fig 1: Instrument Cluster Trouble Shooting Charts (SEDAN & STATION WAGON)

Courtesy of SUBARU OF AMERICA, INC.

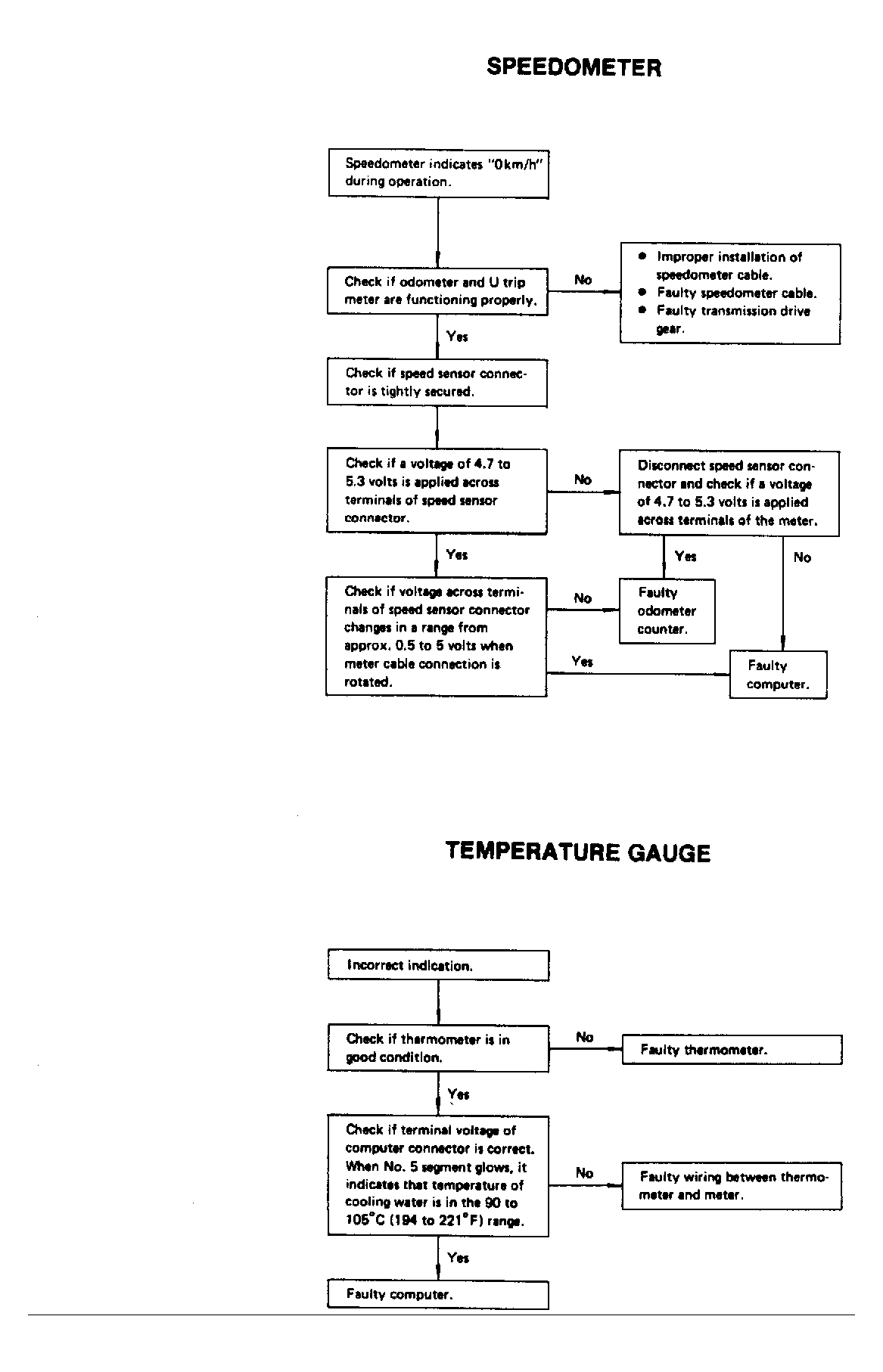

Fig 2: Instrument Cluster Trouble Shooting Charts (SEDAN & STATION WAGON)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Instrument Cluster Trouble Shooting Charts (SEDAN & STATION WAGON)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Instrument Cluster Trouble Shooting Charts (SEDAN & STATION WAGON)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Instrument Cluster Trouble Shooting Charts (SEDAN & STATION WAGON)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Instrument Cluster Trouble Shooting Charts (SEDAN & STATION WAGON)

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Instrument Cluster Trouble Shooting Charts (SEDAN & STATION WAGON)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Instrument Cluster Trouble Shooting Charts (SEDAN & STATION WAGON)

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Instrument Cluster Trouble Shooting Charts (SEDAN & STATION WAGON)

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Instrument Cluster Trouble Shooting Charts (SEDAN & STATION WAGON)

Courtesy of SUBARU OF AMERICA, INC.
