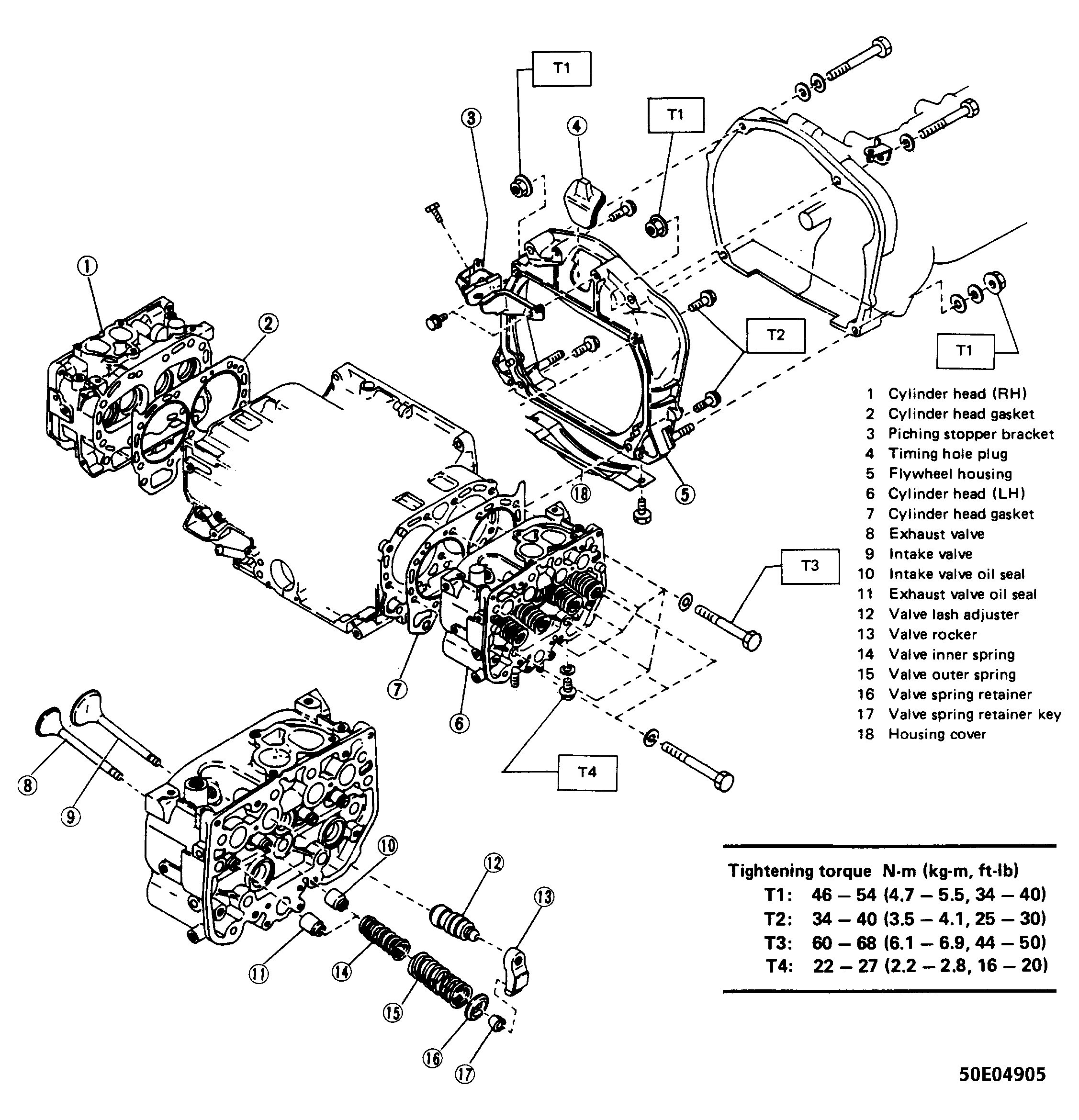

Cylinder Block Overhaul: Inspection
Measure cylinder bores. Inspect cylinder block for damage. Measure cylinder block mating surface for warpage. Refer to CYLINDER BLOCK SPECIFICATIONS chart.
CYLINDER BLOCK SPECIFICATIONS
| Application | In. (mm) | |
|---|---|---|
| Standard Cylinder Bore | 3.6214-3.6226 (91.985-92.015) | |
| Taper | ||
| Standard | .0006 (.015) | |
| Maximum | .002 (.050) | |
| Out-Of-Round | ||
| Standard | .0004 (.010) | |
| Maximum | .002 (.050) | |
| Warpage | ||
| Maximum | .002 (.05) | |
| Grinding Limit | .016 (0.40) | |
