Horn Pad & Steering Wheel: Installation

To install, reverse removal procedure. After steering wheel installation, measure clearance between wheel and column cover. Clearance should be .04-.12" (1-3 mm). If beyond this range, loosen column cover screws and adjust.

To install, reverse removal procedure. After steering wheel installation, measure clearance between wheel and column cover. Clearance should be .04-.12" (1-3 mm). If beyond this range, loosen column cover screws and adjust.

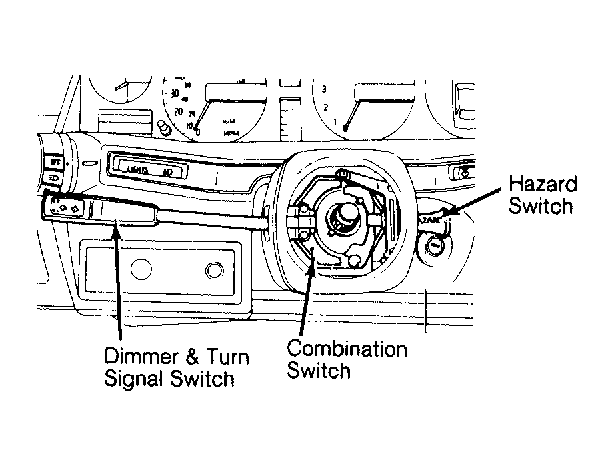

Fig 1: Position of Column Switches

Courtesy of SUBARU OF AMERICA, INC.
