Wiring Diagrams

Fig 1: Height Control System Wiring Diagram (XT)

G51104

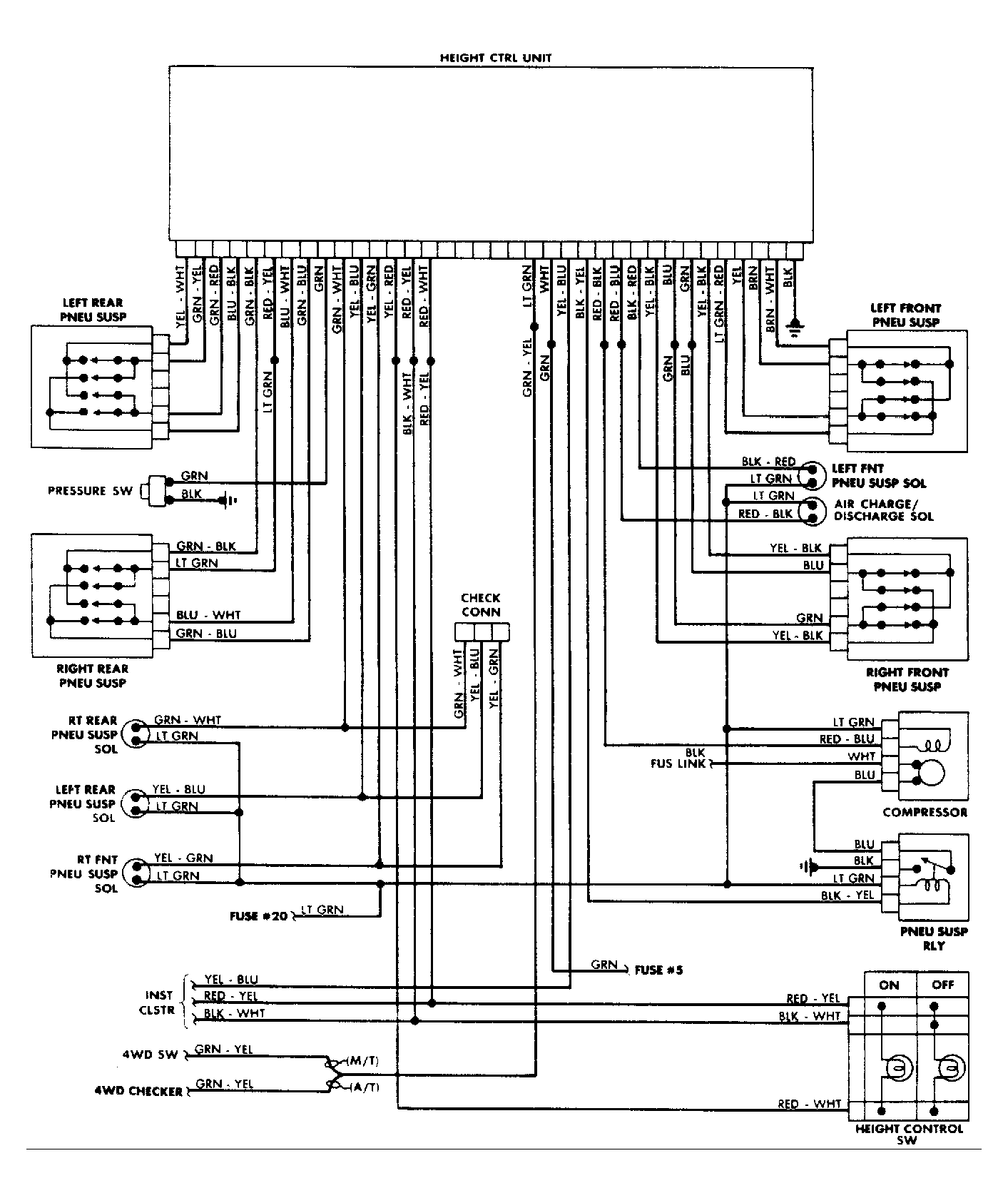

Fig 2: Height Control System Wiring Diagram (Sedan & Wagon)

G52568
