Strut Assembly: Installation

Reverse removal procedure for installation. Attach sensor harness clip 8.27" (210 mm) from strut assembly to prevent twisting. See Figure . Position new "O" ring in unit before inserting air hose. Air hose must be installed .51" (13 mm) into fitting.

Fig 1: Front Strut Disassembly

Reverse removal procedure using new "O" ring to complete installation. Use same precautions as in front assembly. See Fig 1 .

Fig 1: Rear Strut Assembly Harness Arrangement

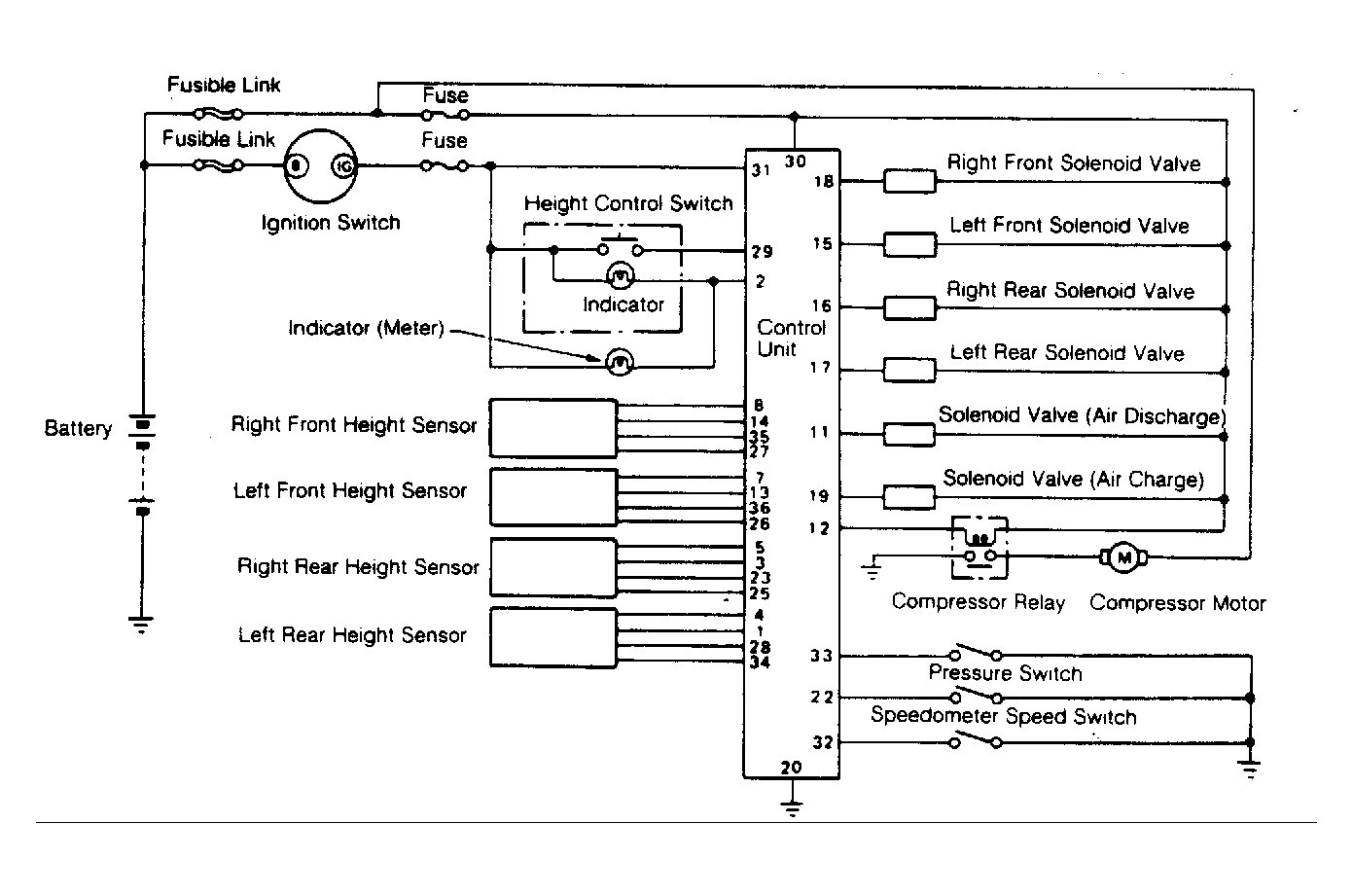

Fig 2: Height Control System Circuit Diagram
