Wiring Diagrams

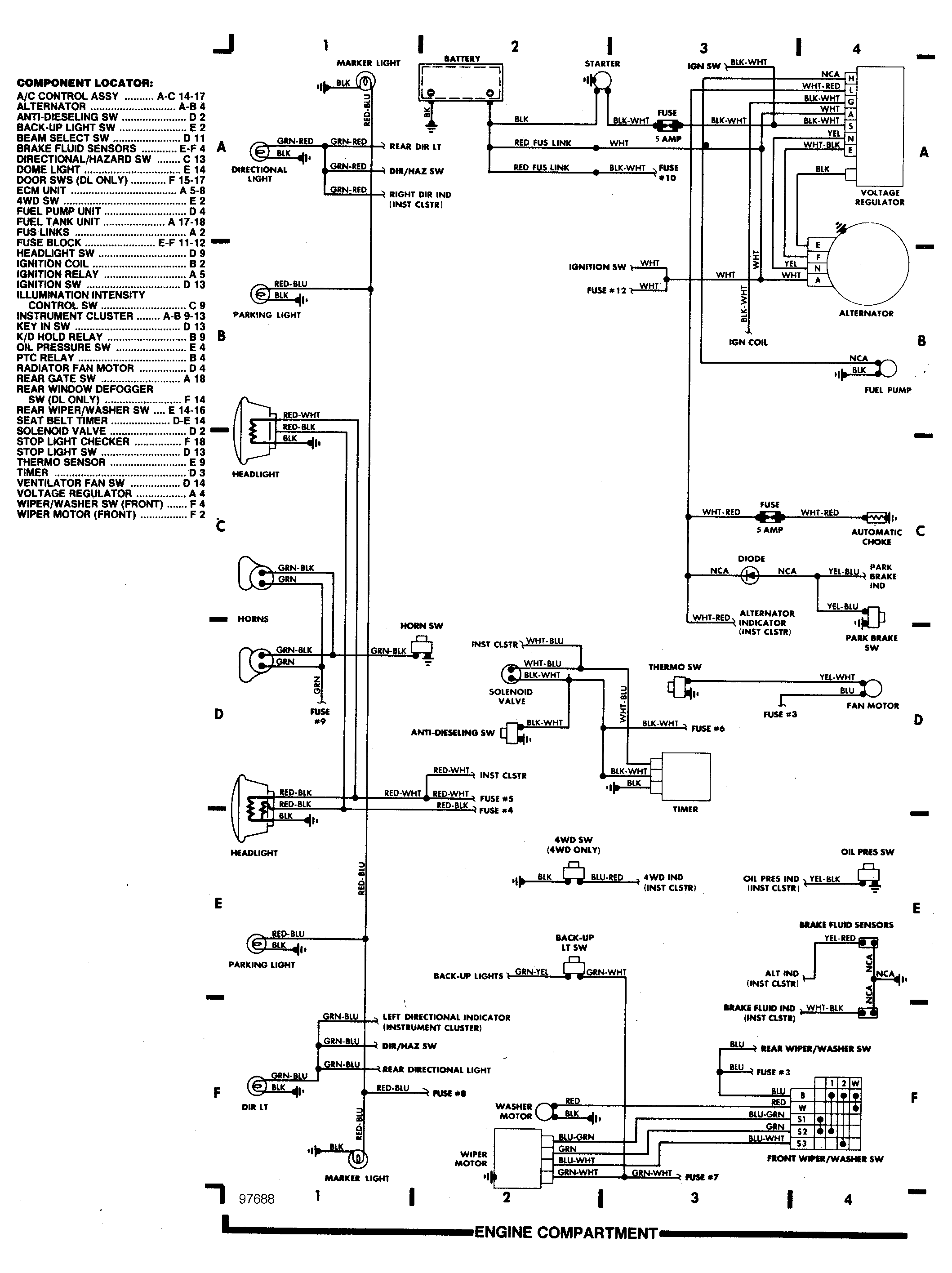

Fig 1: Engine Compartment (Grids 1-4)

G97688

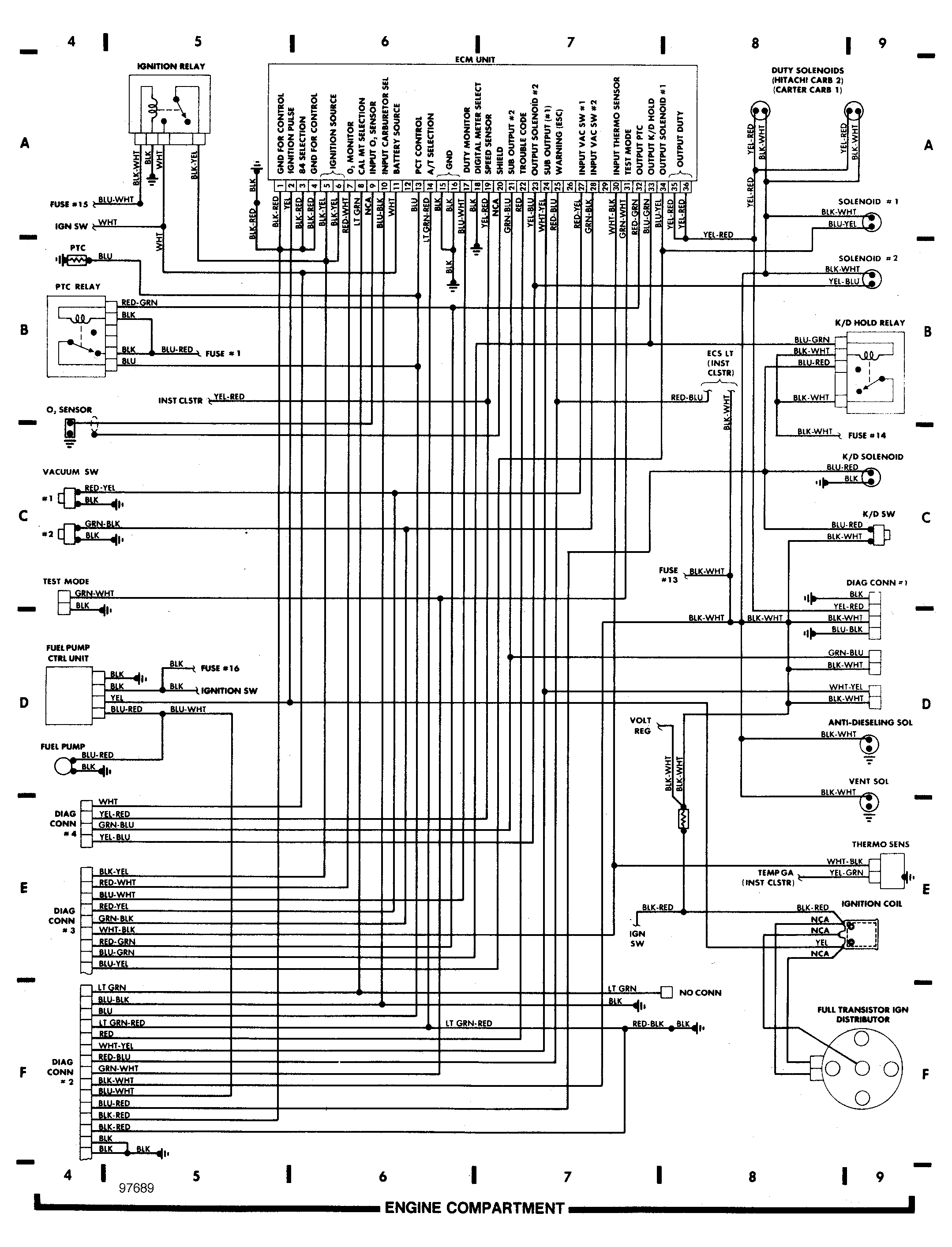

Fig 2: Engine Compartment (Cont.) (Grids 4-9)

G97689

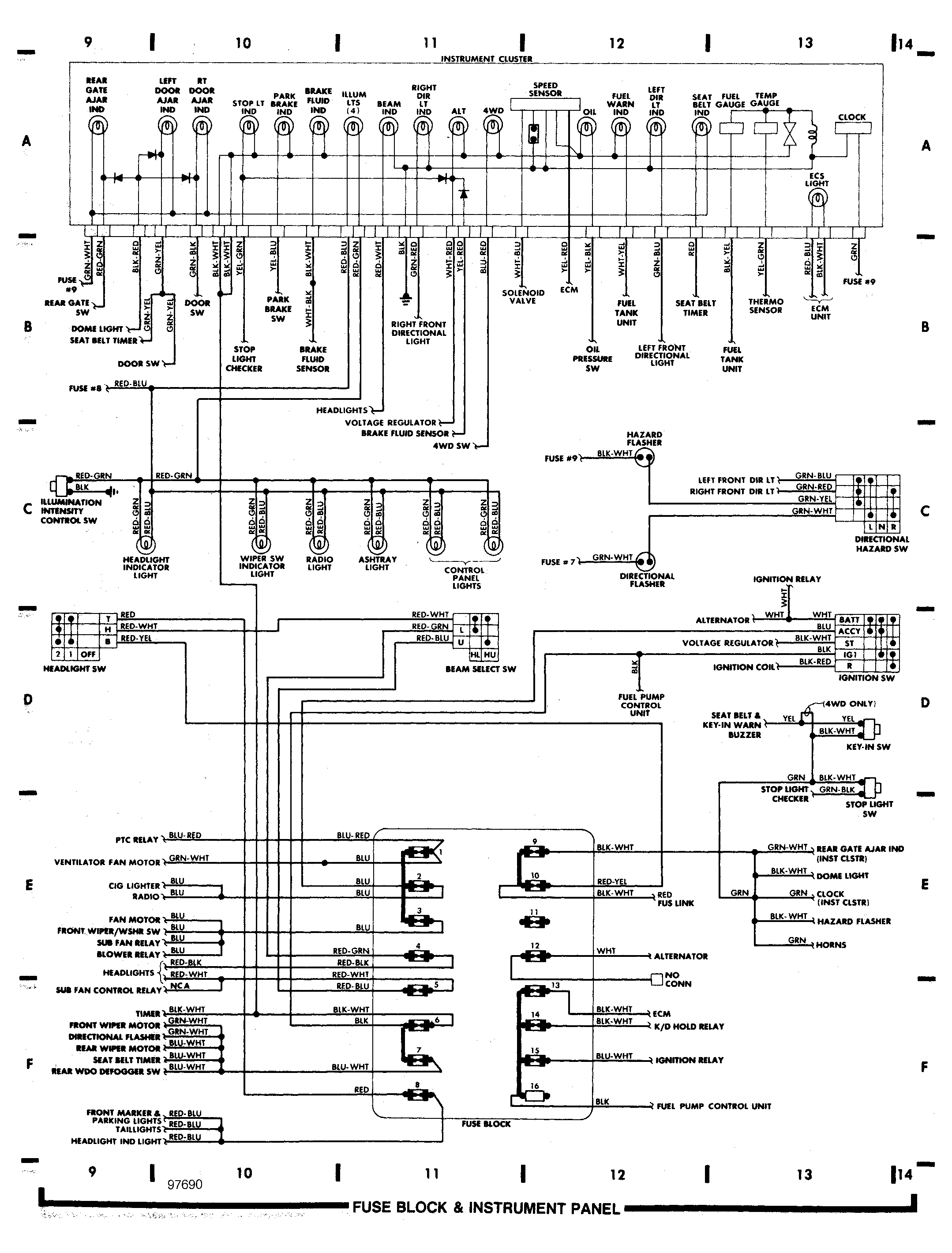

Fig 3: Fuse Block & Instrument Panel (Grids 9-14)

G97690

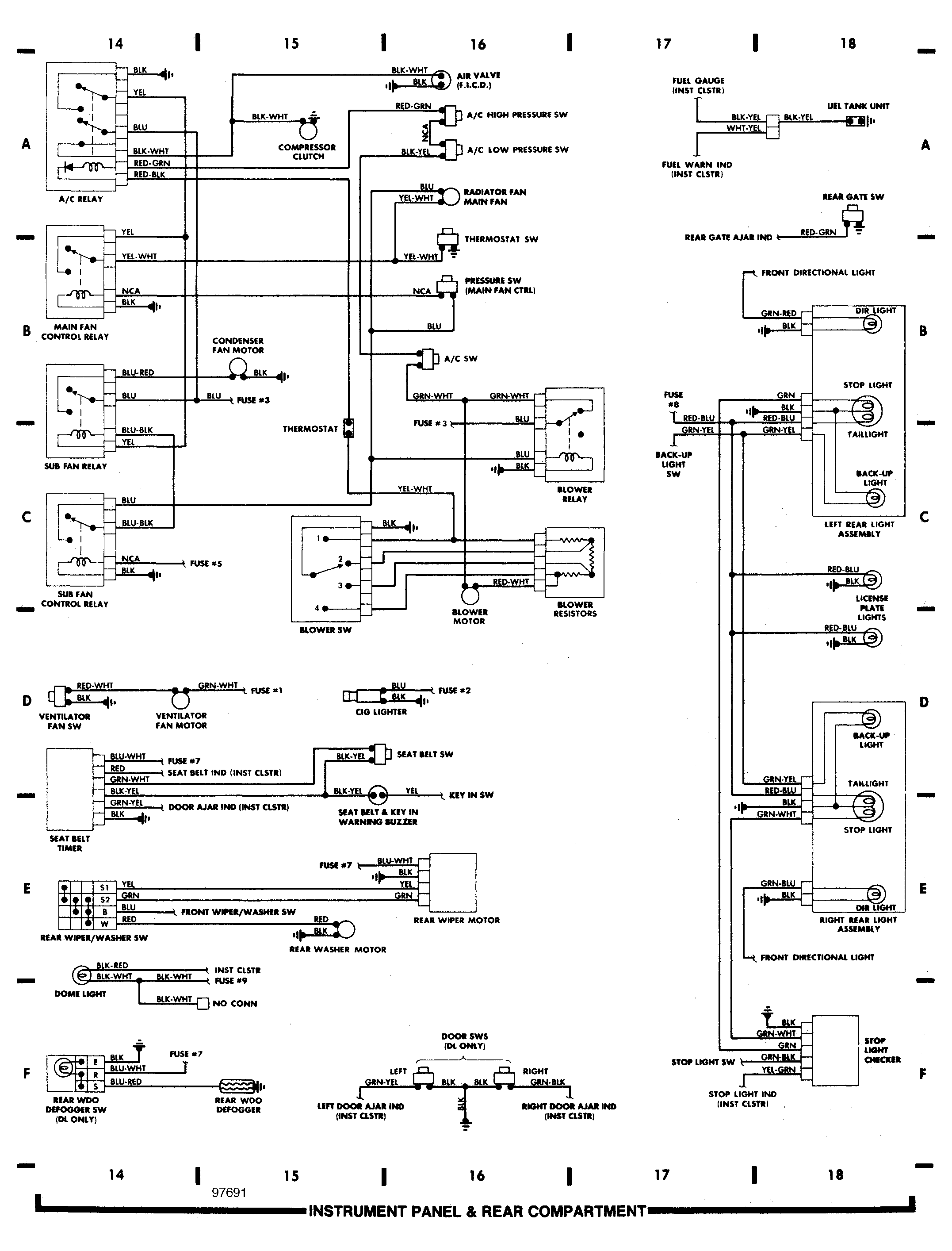

Fig 4: Instrument Panel (Cont.) & Rear Compartment (Grids 14-18)

G97691
