Suspension - Rear: Description

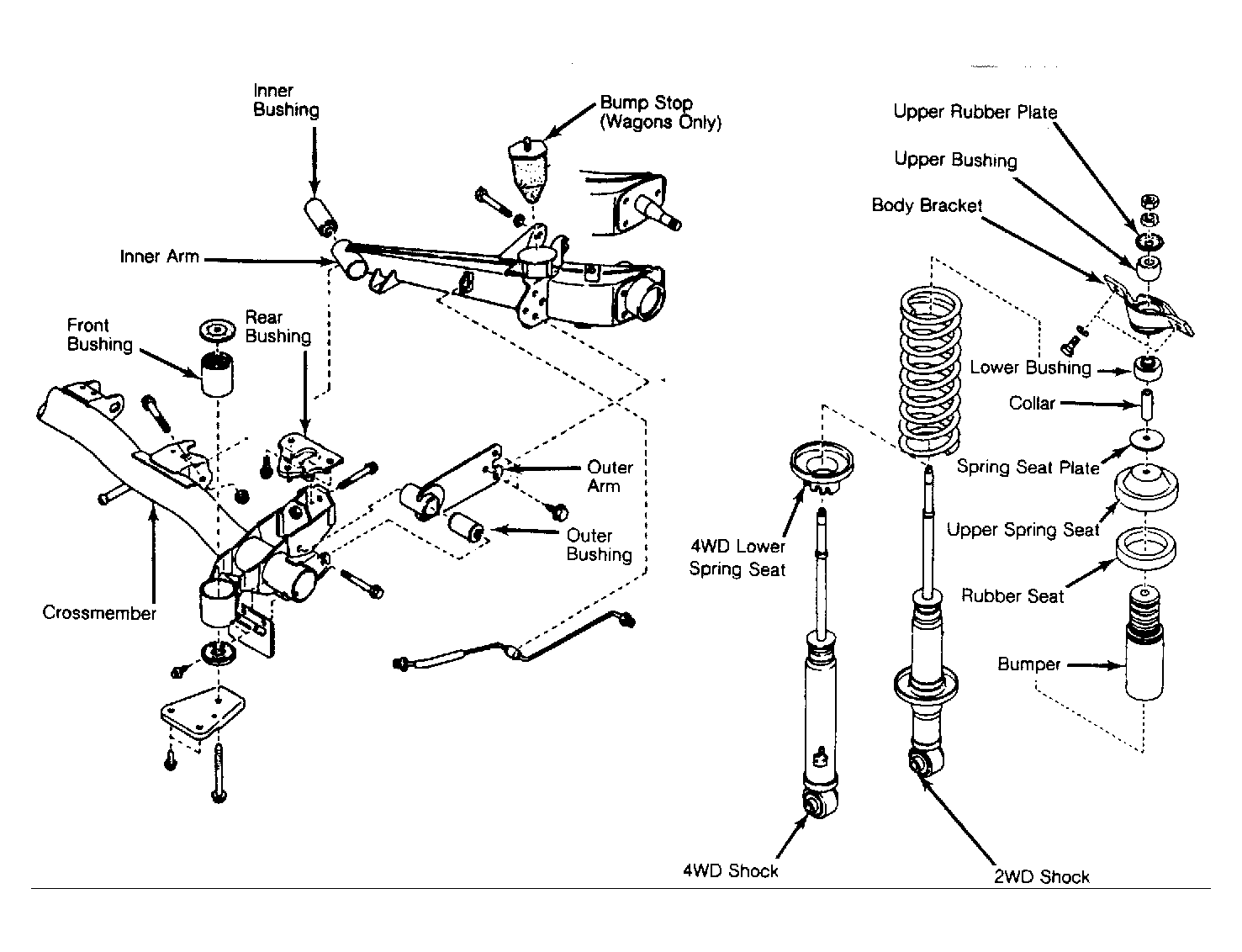

Rear suspension is of the semi-trailing arm independent type. Crossmember is mounted to body frame with brackets at both ends via bushings. One end of trailing arm is bolted to crossmember through a bushing, and the other end is mounted to the body through the shock absorber. An outer arm is bolted on one end to the crossmember through a bushing, and on the other end directly to the trailing arm.
