UNDERDASH (Cont.), Actuators, Relays, Flashers, Chimes

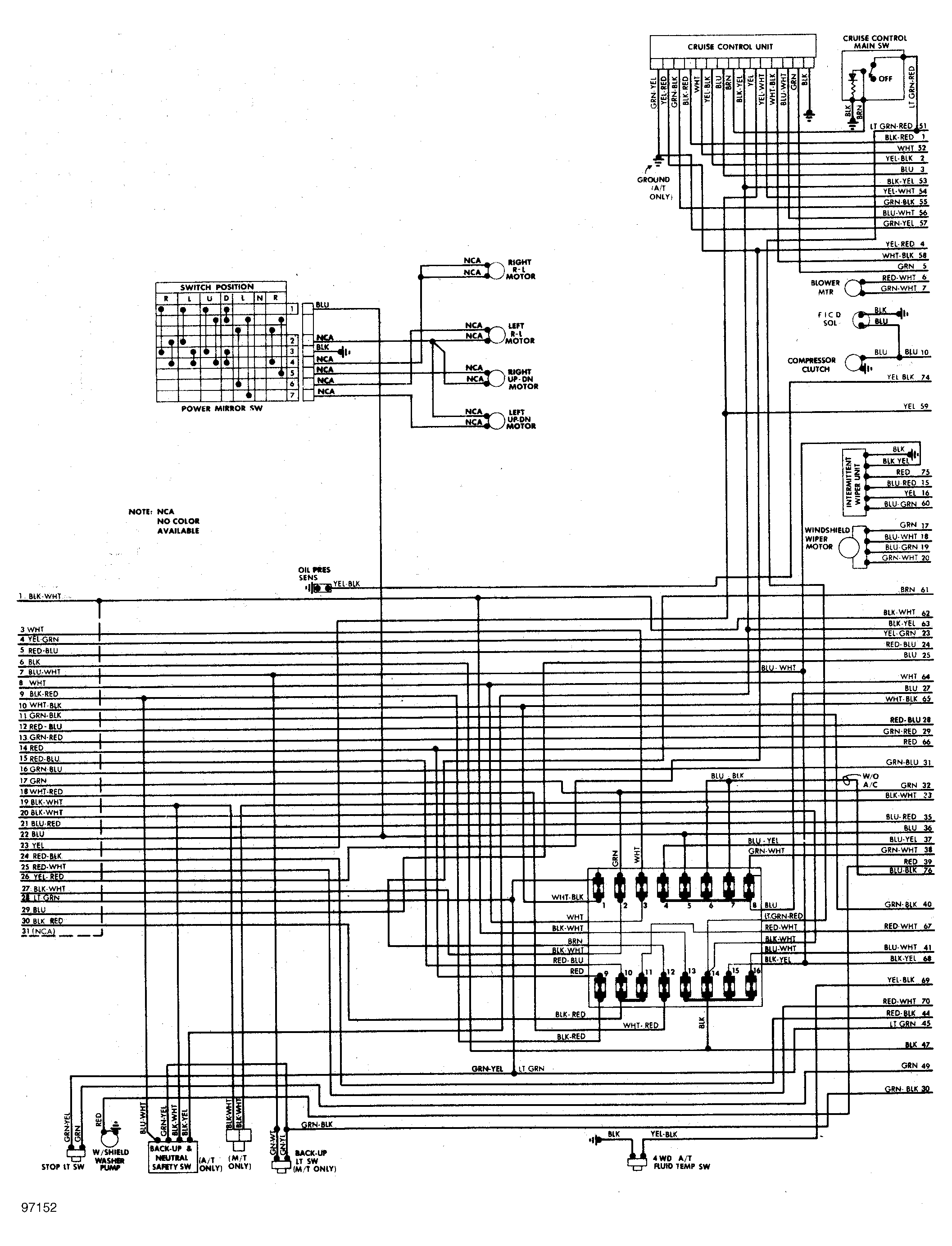

Fig 1: Underdash (Cont.), Actuators, Relays, Flashers, Chimes

G97152
